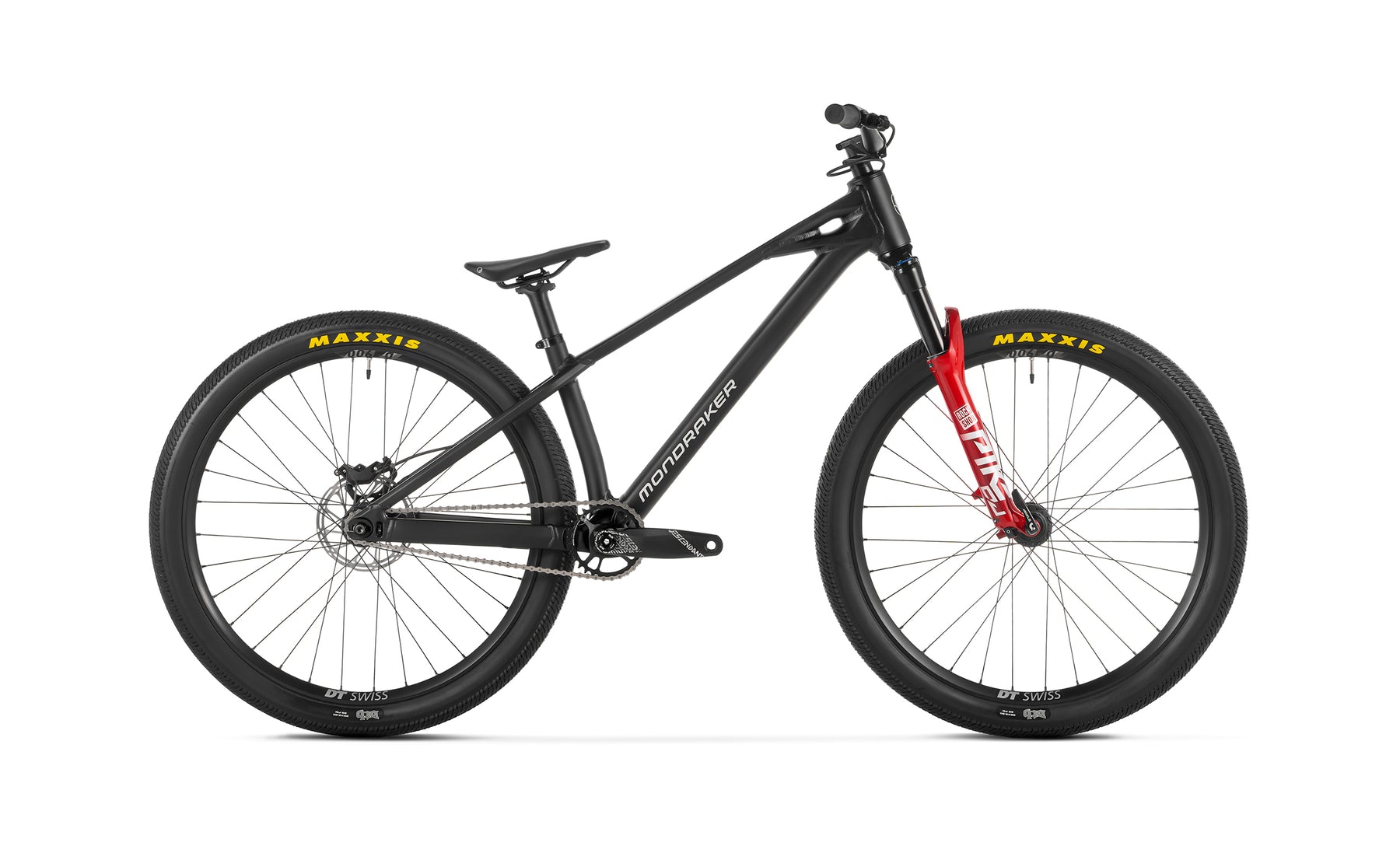

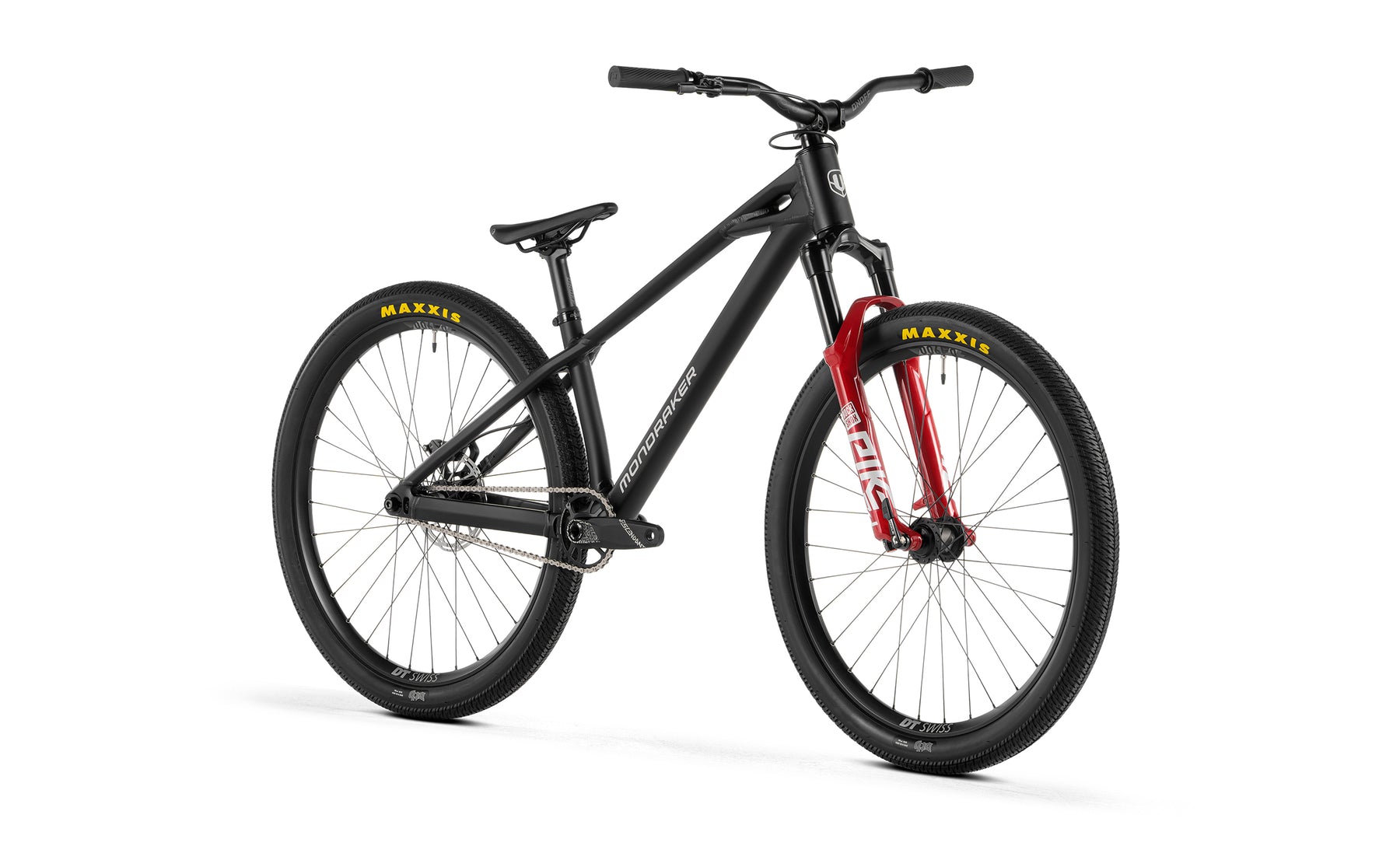

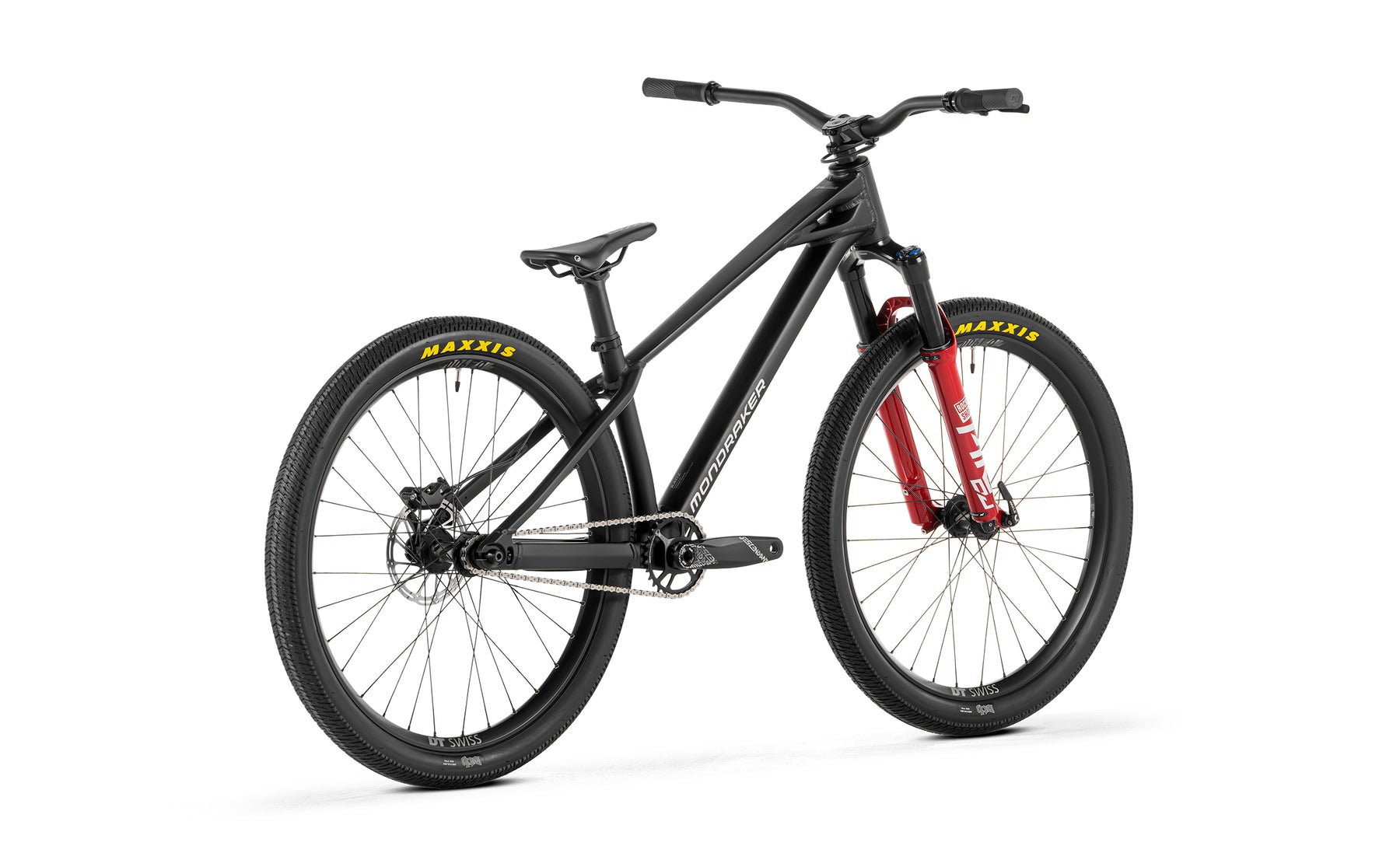

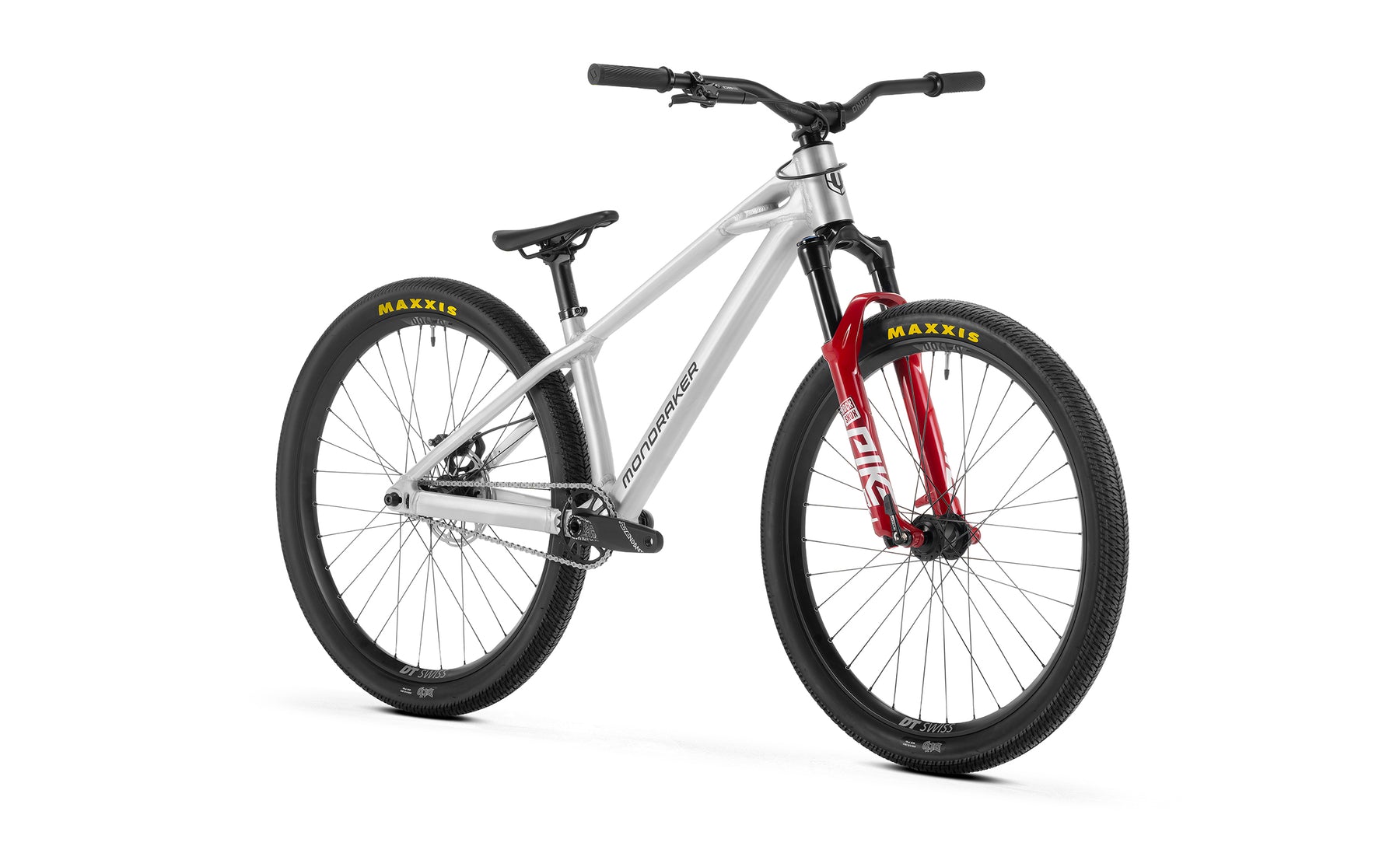

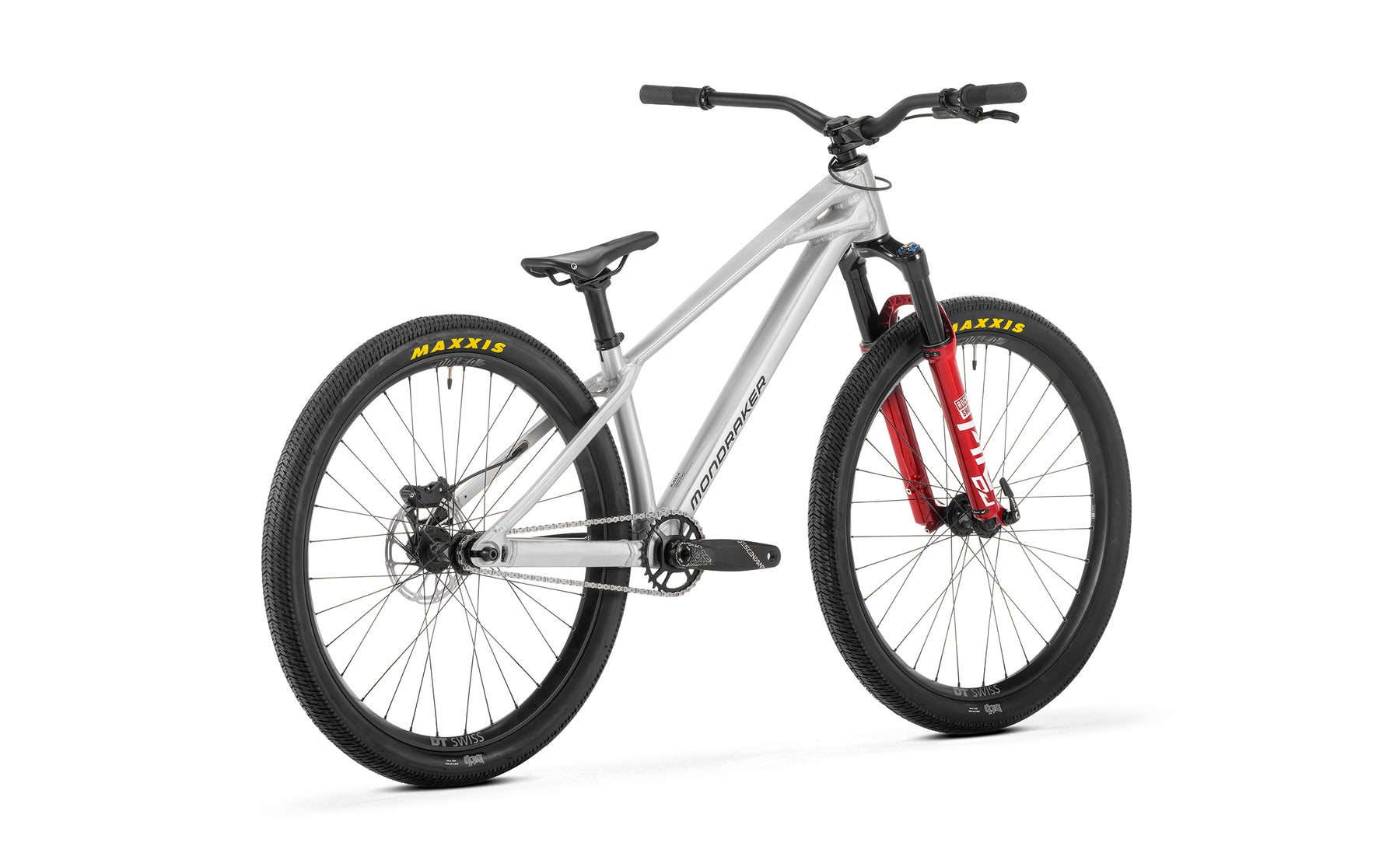

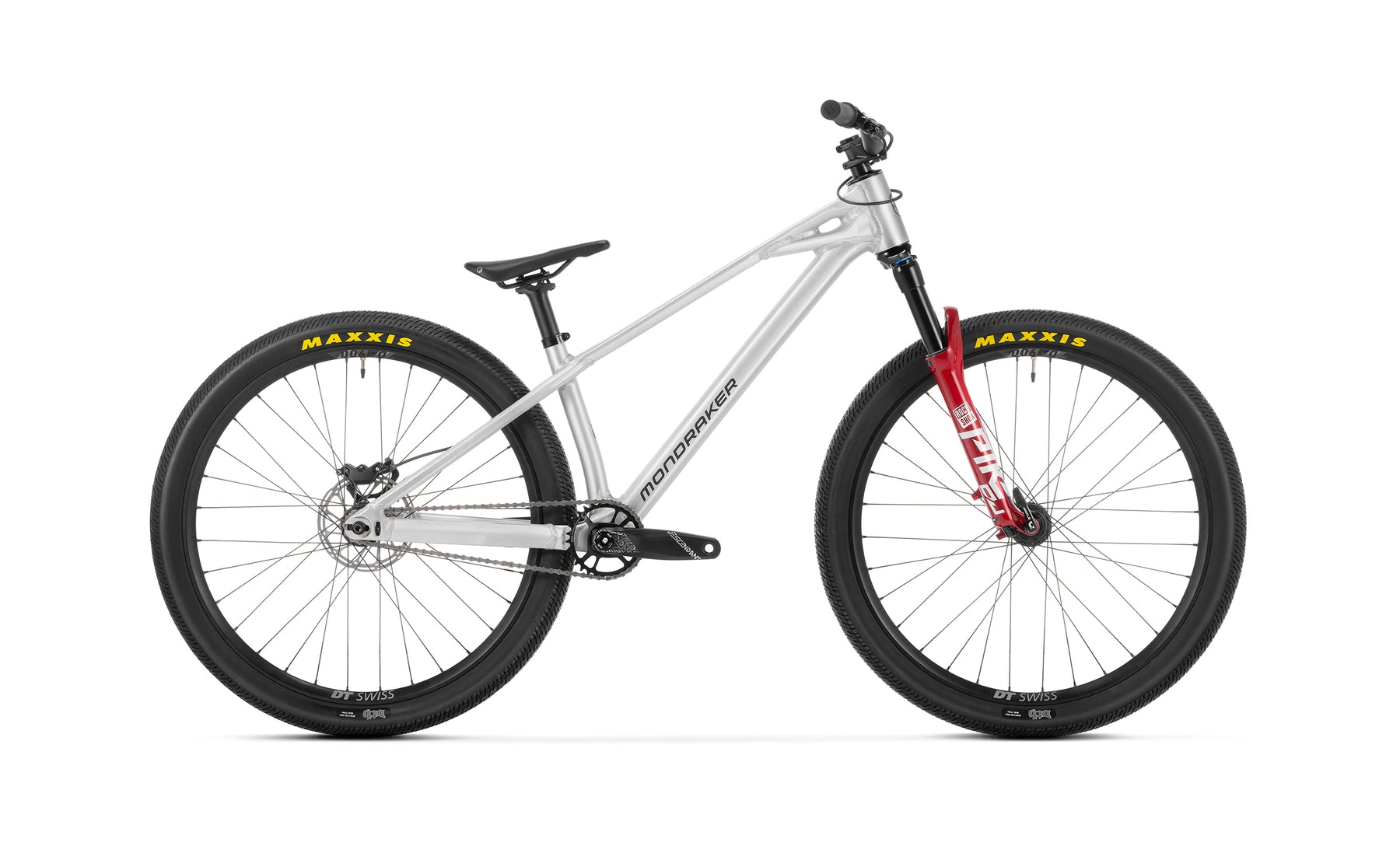

The latest bike to join our gravity collection, alongside the proven Summum DH race bike, and new Anark park bike.
With instantly recognisable Mondraker aesthetics, the KAOZ is a frame for creative riding and has some unique features.
Whether that’s carving concrete bowls; pumping hard packed rollers or boosting off sculpted lips - KAOZ is the bike for expressing yourself.
On frames designed around loading into compressions, stiffness at the bottom bracket area is everything. KAOZ has a ‘split-forged’ bottom bracket shell.
The most extreme forces converge here, so a unique two-piece forged bottom bracket shell allows for continuity of form towards the chainstays.
By eliminating abrupt welds and stress concentrators, KAOZ has exceptional lateral stiffness and superior fatigue resistance. Crucial for withstanding the hardest landings.
Components
Technical specs
-
Frame
Kaoz 6061-T6 Stealth Alloy Evo, hydroformed tubing, 26” Forward Geometry, BSA73, 10x135mm rear axle, Sliding Dropouts, Single Speed
Sizes
M: 415mm / L: 440mm
-
Fork
RockShox PIKE DJ, 26”, 100mm, Charger damper, tapered steerer tube, 15x100mm axle, 40mm offset
Headset
Onoff custom ZS56/ZS56, 1-1/8”, 1.2” head tube
-
Stem
Onoff S3 30mm 0º, 6061 forged alloy, 31.8mm barbore
Handlebar
Onoff S6 1.5 7050 alloy, rise: 38mm, width: 800mm, 8º backsweep, 5º upsweep, 31.8mm barbore
-
Grips
Onoff Desert Pro, CNC lock-on, 135mm, thin
Seatpost
Onoff S3 DH alloy, diameter 31.6mm, length 300mm
-
Saddle
Ergon SM10 DH Black
Rear brake
Sram DB8, 4-piston caliper, Centerline 160mm IS 6 bolts one-piece rotor, steel-backed organic pads
-
Brake lever
Sram DB8, tool reach adjust, lever pivot bushings
Rims
DT Swiss D 1900 Classic, 30mm internal width, aluminum pinned rim joint, tubeless ready, 32 spokes
-
Spokes
DT J-bend spokes, DT competition®, black
Front hub
DT Swiss 370, 15x100mm, IS 6 bolts
-
Rear hub
DT Swiss 370 Classichub with 36T Ratchet LN, Singlespeed with sprocket 12T, 10x135mm bolts-on, IS 6 bolts
Front tire
Maxxis DTH 26x2.3, single compound, 60TPI, Tubeless ready, Foldable
-
Rear tire
Maxxis DTH 26x2.3, single compound, 60TPI, Tubeless ready, Foldable
Crankset
Sram Truvativ Descendant 6K, DUB axle, Direct mount chain ring, 165mm CL 49mm
-
Rings
Sram Eagle 30T, steel, X-Sync 2
Bottom bracket
Sram DUB BSA, sealed bearings, 73mm
-
Chain
Sram PC-1, Singlespeed, PowerLock 1s
Weight
11,2 kg (Size M)
Geometry
Frame sizeM A Seattube length 330 mm 330 mm B Toptube length 599 mm 623 mm C Bottom bracket drop - 21 mm - 21 mm D Bottom bracket height 315mm 315 mm E Chainstay length 385mm 385 mm F Seat tube angle 72 º 72 º G Effective seattube angle 72 º 72 º H Headtube angle 68.5 º 68.5 º I Fork Offset 40 mm 40 mm J Wheelbase 1057 mm 1082 mm K Headtube length 115 mm 115 mm L Reach 415 mm 440 mm M Stack 565 mm 565 mm
