Mondraker

2024 Mondraker Chaser

£4,499.00 £2,999.00 Save £1,500.00

Tax included. Shipping calculated at checkout.

Frame

Chaser 6061 Alloy Stealth Evo, e-Bike Optimized Zero Suspension System, 150mm travel, Forward Geometry, internal removable battery, Boost 12x148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 17mm axles, integrated dropout speed sensor, exclusive plastic motor covers, shock mudguard

Sizes

S: 380mm / M: 420mm / L: 450mm / XL: 490mm
Rear shock

RockShox Deluxe Select R DebonAir, 205x65mm. Settings: Low-speed rebound, air preload. Trunnion top mount, 25x10mm bottom bushings

Shock settings

Light compression, Linear rebound, 1 Token
Fork

RockShox 35 Silver TK 29, 160mm, TurnKey, Solo Air, tapered steerer tube, Boost 15x110mm axle, 35mm steel stanchions, 44mm offset. Settings: compression adjustment at low-speed to lock, rebound, air preload

Headset

Onoff Saturn tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41x30.2x7x45ºx45º, bottom 51.9x40x8x45ºx45º
Stem

Onoff Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore

Handlebar

Onoff Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore
Grips

Onoff Twin, 1lock-on, 135mm

Seatpost

Onoff Pija dropper internal, diameter 31.6mm, 1X Remote lever with bearing, S size: 405x95-125mm, M size: 458x120-150mm, L size: 498x140-170mm, XL size: 558x170-200mm
Saddle

MDK ebike black

Front brake

Sram DB8, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads
Rear brake

Sram DB8, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads

Brake lever

Sram DB8, tool reach adjust, lever pivot bushings
Rims

Mavic E-CrossRide 29, 30mm internal width, welded, PFP, tubeless ready, 28 spokes

Spokes

Mavic J-bend double butted, contactless lacing
Front hub

Mavic, Boost 15x110mm, IS 6 bolts

Rear hub

Mavic, Boost 12x148mm, ID360 Ratched system, IS 6 bolts, HG freehub
Front tire

Maxxis Rekon 29x2.6, tubeless ready, dual compound, EXO protection, 60TPI, folding bead

Rear tire

Maxxis Rekon 29x2.6, tubeless ready, dual compound, EXO protection, 60TPI, folding bead
Crankset

Race Face Aeffect ebike, 165mm

Rings

Sram X-Sync 2 Eagle 34T, steel, narrow-wide, 104 BCD
Chain

Sram SX Eagle, 12s, Powerlock

Rear derrailleur

Sram SX Eagle, Type 3 roller bearing clutch, cage lock, long cage, 1x12s, X-actuation 1:1
Shift levers

Sram Trigger SX Eagle, 12s, X-Actuation 1:1, single click

Casette

Sram PG-1210, 11-50T, 12s
Derailleur hanger

Mondraker M068

Weight

25,4 kg
Display

Bosch Intuvia 100 / Bosch Mini Remote / Bosch System Controller

Motor

Bosch Performance Line CX Cruise (25Km/h) GEN4 SMART SYSTEM

Battery

Bosch Powertube 625Wh

Geometry

Frame size		S	M	L
A	Seattube length	380mm	420mm	450mm	490mm
B	Toptube length	605mm	625mm	650mm	670mm
C	Bottom bracket drop	-25mm	-25mm	-25mm	-25mm
D	Bottom bracket height	350mm	350mm	350mm	350mm
E	Chainstay length	455mm	455mm	455mm	455mm
F	Seat tube angle	73.5°	73.5°	73.5°	73.5°
G	Effective seattube angle	76°	76°	76°	76°
H	Headtube angle	65.5°	65.5°	65.5°	65.5°
I	Fork Offset	44mm	44mm	44mm	44mm
J	Wheelbase	1225mm	1245mm	1265mm	1285mm
K	Headtube length	110mm	110mm	130mm	130mm
L	Reach	450mm	470mm	490mm	510mm
M	Stack	622mm	622mm	640mm	640mm

Mondraker

2024 Mondraker Foxy R Alloy Bike

£4,699.00 £2,995.00 Save £1,704.00

Tax included. Shipping calculated at checkout.

Frame

Foxy 29 6061 Alloy Stealth Evo, hydroformed tubing, Zero Suspension System, 150mm travel, Forward Geometry, one piece Monoblock upper link, Boost 12x148mm rear axle, tapered head tube, 73mm BSA bottom bracket, dedicated 1x drivetrain design, telescopic seatpost internal routing, MAX capacity sealed bearings, ISCG 05

Sizes

S: 380mm / M: 420mm / L: 470mm / XL: 510mm
Rear shock

Öhlins TTX Air 205x65mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, air preload. Trunnion top mount, 25x8mm bottom bushings

Shock settings

C20 compression, R35 rebound
Fork

Öhlins RXF 36 M.3 29, 160mm, TTX18 Twin Tube cartridge, tapered steerer tube, Boost 15x110mm axle, offset 44mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, air preload, ramp chamber. Fork settings: C20 R40

Headset

Onoff Saturn tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41x30.2x7x45ºx45º, bottom 51.9x40x8x45ºx45º
Stem

Onoff Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore

Handlebar

Onoff Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore
Grips

Onoff Twin, 1lock-on, 135mm

Seatpost

Onoff Pija dropper internal, diameter 31.6mm, 1X Remote lever with bearing, S size: 405x95-125mm, M size: 458x120-150mm, L size: 498x140-170mm, XL size: 558x170-200mm
Saddle

SDG BEL-AIR 3.0, LPU foam, steel rails

Front brake

Sram Code Bronze Stealth, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads
Rear brake

Sram Code Bronze Stealth, 4-piston caliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed organic pads

Brake lever

Sram Code Bronze Stealth, SwingLink and lever pivot bushings, tool-free reach adjust
Rims

e*thirteen LG1 Enduro, IW30 Hookless, 6069 Welded Aluminum, 30mm internal width, tubeless ready, 28 spokes

Spokes

e*thirteen custom Hive triple-butted black steel, alloy nipples, nipple washers
Front hub

e*thirteen Boost 15x110mm, triple-sealed, fully machined aluminum, IS 6 bolts

Rear hub

e*thirteen Boost 12x148mm, triple-sealed, fully machined aluminum w/6-degree engagement, IS 6 bolts, HG freehub
Front tire

Maxxis Minion DHF 29x2.5 WT, tubeless ready, 3C MAXX TERRA compound, EXO+ protection, 120TPI, folding bead

Rear tire

Maxxis Aggressor 29x2.3, tubeless ready, dual compound, Exo protection, 60TPI, folding bead
Crankset

Sram SX Eagle, Boost, DUB axle, Direct Mount chain ring, S size: 170mm M size: 175mm L size: 175mm XL size: 175mm, CL55

Rings

32T, CNC-machined alloy, X-SYNC 2
Bottom bracket

Sram DUB BSA, sealed bearings, 73mm

Chain

Sram SX Eagle, 12s, Powerlock
Rear derrailleur

Sram NX Eagle, Type 3 roller bearing clutch, cage lock, 1x12s, X-Actuation 1:1

Shift levers

Sram Trigger SX Eagle, 12s, X-Actuation 1:1
Casette

Sram PG-1230, 11-50T, 12s

Derailleur hanger

Sram UDH

Weight

16,2 kg

Geometry

FRAME SIZE		S	M	L
A	Seattube length	375mm	415mm	445mmm	500mm
B	Toptube length	600mm	622mm	647mm	670mm
C	Bottom bracket drop	-22mm/-27mm	-22mm/-27mm	-22mm/-27mm	-22mm/-27mm
D	Bottom bracket height	350mm/345mm	350mm/345mm	350mm/345mm	350mm/345mm
E	Chainstay length	438mm/345mm	438mm/445mm	438mm/445mm	445mm
F	Seat tube angle	71º/70.5º	71º/70.5º	71º/70.5º	71º/70.5º
G	Effective seattube angle	77°/76.5º	77°/76.5º	77°/76.5º	77°/76.5º
H	Headtube angle	64.5º/64º	64.5º/64º	64.5º/64º	64,5º
I	Fork Offset	44mm	44mm	44mm	44mm
J	Wheelbase	1210mm/1216mm	1233mm/1239mm	1260mm/1267mm	1286mm/1292mm
K	Headtube length	100mm	100mm	120mm	120mm
L	Reach	445mm/440mm	465mm/460mm	485mm/480mm	505mm/500mm
M	Stack	617mm	617mm	647mm	647mm

2024 Mondraker Summum Carbon R 29" Downhill Bike

Mondraker

2024 Mondraker Summum Carbon R 29" Downhill Bike

£7,699.00 £3,999.00 Save £3,700.00

Tax included. Shipping calculated at checkout.

The SUMMUM CARBON R inherits all of the features from the CARBON RR

Name: 2024 Mondraker Chaser
Brand: Mondraker
Price: 2999.0 GBP
Availability: InStock

The SUMMUM CARBON R inherits all of the features from the CARBON RR but with more affordable components. It shares the same frame as the CARBON RR, and also offers the MX option with a 29" front wheel and a 27.5" rear wheel. Light and effective, it's a great bike for podium finishes in any DH race. In this case the geometry change kit is optional.

Components

Technical specs

Frame

Summum Carbon Stealth Air full Carbon, Zero Suspension System, 200mm travel, Forward Geometry, Carbon Monoblock upper link, SuperBoost 12x157mm rear axle, 83mm BSA bottom bracket, HHG internal cable routing, MAX. capacity dual row Enduro bearings, shock mudguard, ISCG 05, custom frame protectors. *Optional Geometry kit.

Sizes

S / M / L / XL 29" and MX
Rear shock

Fox DHX2 Performance Elite, 225x70mm. Settings: low-speed compression, low-speed rebound, spring preload. Trunnion top mount, 30x8mm bottom bushings

Shock settings

ECC010 compression, ECR012 rebound. Spring rate: S size 400 lbs, M size 450 lbs, L/XL size 500 lbs
Fork

Fox 40 29 Float FIT GRIP EVOL Performance, 203mm, air spring, 1-1/8” steerer tube, 20x110mm axle, offset 56mm. Settings: low-speed compression, low-speed rebound, air preload

Headset

ONOFF Mercurium 1.5 ZS for 1-1/8” steerer tube, 41x30.15x7x45ºx45º ACB sealed bearings, geometry kit cups, external diameter 56mm
Stem

ONOFF Krypton DH CNC Integrated FG, 25-30mm adjustable length, 31.8mm barbore, 6061 alloy, 2x6mm spacer

Handlebar

ONOFF Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore
Grips

ONOFF Desert, 1lock-on, 135mm

Seatpost

SDG Micro I-Beam SP-751 Alloy, diameter 31.6mm, length 300mm, micro-adjustment
Saddle

SDG I-Fly 2.0 I-Beam, high-density PU foam, Cordura sides

Front brake

Sram Code R, oversized 4-piston caliper, Centerline 220mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads
Rear brake

Sram Code R, oversized 4-piston caliper, Centerline 203mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads

Brake lever

Sram Code R, tool-free reach adjust
Rims

e*thirteen LG1 Plus DH, IW29 29" Hookless, 6069 Welded Aluminum, 30mm internal width, tubeless ready, 32 spokes

Spokes

e*thirteen custom Hive triple-butted black steel, alloy nipples, nipple washers
Front hub

e*thirteen Boost 20x110mm, triple-sealed, fully machined aluminum, IS 6 bolts

Rear hub

e*thirteen Superboost 12x157mm, triple-sealed, fully machined aluminum w/6-degree engagement, IS 6 bolts
Front tire

Michelin DH34 29x2.4, tubeless ready, Magi-X DH compound, double-reinforced DH shield casing, wire bead

Rear tire

Michelin DH34 29x2.4, tubeless ready, Magi-X DH compound, double-reinforced DH shield casing, wire bead
Crankset

Truvativ Descendant DH, DUB axle, Direct mount chain ring, 165mm

Rings

34T, steel, X-SYNC
Bottom bracket

Sram DUB BSA, sealed bearings, 83mm

Chain

Sram PC1110 11s, Powerlock
Front derrailleur

E.13 Vario Compact Upper Slider ,Alloy backplate ,DMB (Direct mount Bashguard) Lower Slider 34-36t, ISCG 05 adjustable upper slider

Rear derrailleur

Sram GX DH, 7s, medium cage, X-actuation 1:1
Shift levers

Sram trigger GX DH 7s, X-actuation 1:1

Casette

Sram PG 720 11-25T, 7s

Others

*Optional geometry kit: +-1º / +-2º headset cups

Weight

16,9 kg

Geometry

Frame size		S	M	L
A	Seattube length	400 mm	400 mm	400 mm	400 mm
B	Toptube length	575 mm	595 mm	620 mm	645 mm
C	Bottom bracket drop	-20 mm	-20 mm	-20 mm	-20 mm
D	Bottom bracket height	350 mm	350 mm	350 mm	350 mm
E	Chainstay length	450/455/460 mm	450/455/460 mm	450/455/460 mm	450/455/460 mm
F	Seat tube angle	69°	68.5º	69°	69°
G	Effective seattube angle	77°	77°	77°	77°
H	Headtube angle	63º	63,5º	63,5º	63,5º
I	Fork Offset	56 mm	56 mm	56 mm	56 mm
J	Wheelbase	1260 mm	1270 mm	1295 mm	1320 mm
K	Headtube length	110 mm	110 mm	112 mm	112 mm
L	Reach	430 mm	450 mm	475 mm	500 mm
M	Stack	632 mm	633 mm	632 mm	632 mm

2024 Mondraker Summum Carbon RR 29 Frameset

Mondraker

2024 Mondraker Summum Carbon RR 29 Frameset

£3,999.00 £2,249.00 Save £1,750.00

Tax included. Shipping calculated at checkout.

SUMMUM

DH is our passion. DH and racing are in our DNA.

Our DNA comes from DH racing, there’s no denying it and we’re proud of it. DH is the Formula 1 of mountain biking. It’s where prototypes are put through the wringer, hammered by the tracks and the riders. That’s why at Mondraker we have a top-level international team: the Mondraker Factiry Racing, which includes world-class riders such as Dakotah Norton and Ronan Dunne. Our DH bikes will continue to be available as carbon or aluminium framed versions, depending on rider preference.

FRAME	Summum Carbon Stealth Air full Carbon, Zero Suspension System, 200mm travel, Forward Geometry, Carbon Monoblock upper link, SuperBoost 12x157mm rear axle, 83mm BSA bottom bracket, HHG internal cable routing, MAX. capacity dual row Enduro bearings, shock mudguard, ISCG 05, custom frame protectors. *Geometry kit included.
SIZES	S / M / L / XL 29" and MX
REAR SHOCK	Fox DHX2 Factory Kashima, 225x70mm. Settings: high and low-speed compression, high and low-speed rebound, spring preload. Super light steel (SLS) spring. Trunnion top mount, 30x8mm bottom bushings
SHOCK SETTINGS	ECC010 compression, ECR012 rebound. Spring rate: S size 400 lbs, M size 450 lbs, L/XL size 500 lbs
HEADSET	Onoff Mercurium 1.5 ZS for 1-1/8” steerer tube, 41x30.15x7x45ºx45º ACB sealed bearings, geometry kit cups, external diameter 56mm
STEM	Onoff Krypton DH CNC Integrated FG, 25-30mm adjustable length, 31.8mm barbore, 6061 alloy, 2x6mm spacer
DERAILLEUR HANGER	Mondraker M075
OTHERS	*Geometry kit included: +-1º / +-2º headset cups

Mondraker

2024 Mondraker Summum Carbon RR Mullet Frameset

£3,999.00 £2,249.00 Save £1,750.00

Tax included. Shipping calculated at checkout.

SUMMUM

DH is our passion. DH and racing are in our DNA.

Our DNA comes from DH racing, there’s no denying it and we’re proud of it. DH is the Formula 1 of mountain biking. It’s where prototypes are put through the wringer, hammered by the tracks and the riders. That’s why at Mondraker we have a top-level international team: the Mondraker Factiry Racing, which includes world-class riders such as Dakotah Norton and Ronan Dunne. Our DH bikes will continue to be available as carbon or aluminium framed versions, depending on rider preference.

FRAME	Summum Carbon Stealth Air full Carbon, Zero Suspension System, 200mm travel, Forward Geometry, Carbon Monoblock upper link, SuperBoost 12x157mm rear axle, 83mm BSA bottom bracket, HHG internal cable routing, MAX. capacity dual row Enduro bearings, shock mudguard, ISCG 05, custom frame protectors. *Geometry kit included.
SIZES	S / M / L / XL 29" and MX
REAR SHOCK	Fox DHX2 Factory Kashima, 225x70mm. Settings: high and low-speed compression, high and low-speed rebound, spring preload. Super light steel (SLS) spring. Trunnion top mount, 30x8mm bottom bushings
SHOCK SETTINGS	ECC010 compression, ECR012 rebound. Spring rate: S size 400 lbs, M size 450 lbs, L/XL size 500 lbs
HEADSET	Onoff Mercurium 1.5 ZS for 1-1/8” steerer tube, 41x30.15x7x45ºx45º ACB sealed bearings, geometry kit cups, external diameter 56mm
STEM	Onoff Krypton DH CNC Integrated FG, 25-30mm adjustable length, 31.8mm barbore, 6061 alloy, 2x6mm spacer
DERAILLEUR HANGER	Mondraker M075
OTHERS	*Geometry kit included: +-1º / +-2º headset cups

Mondraker

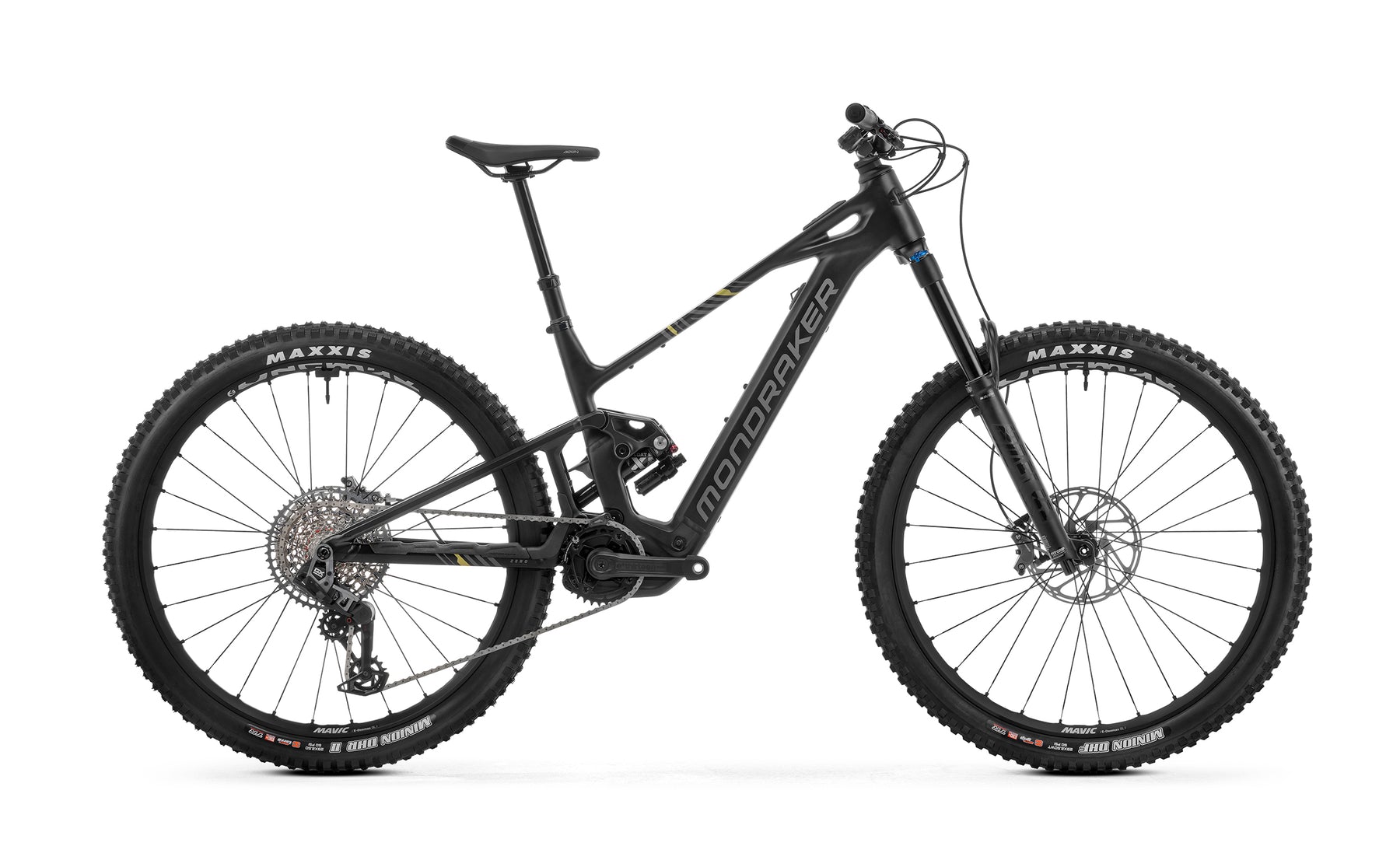

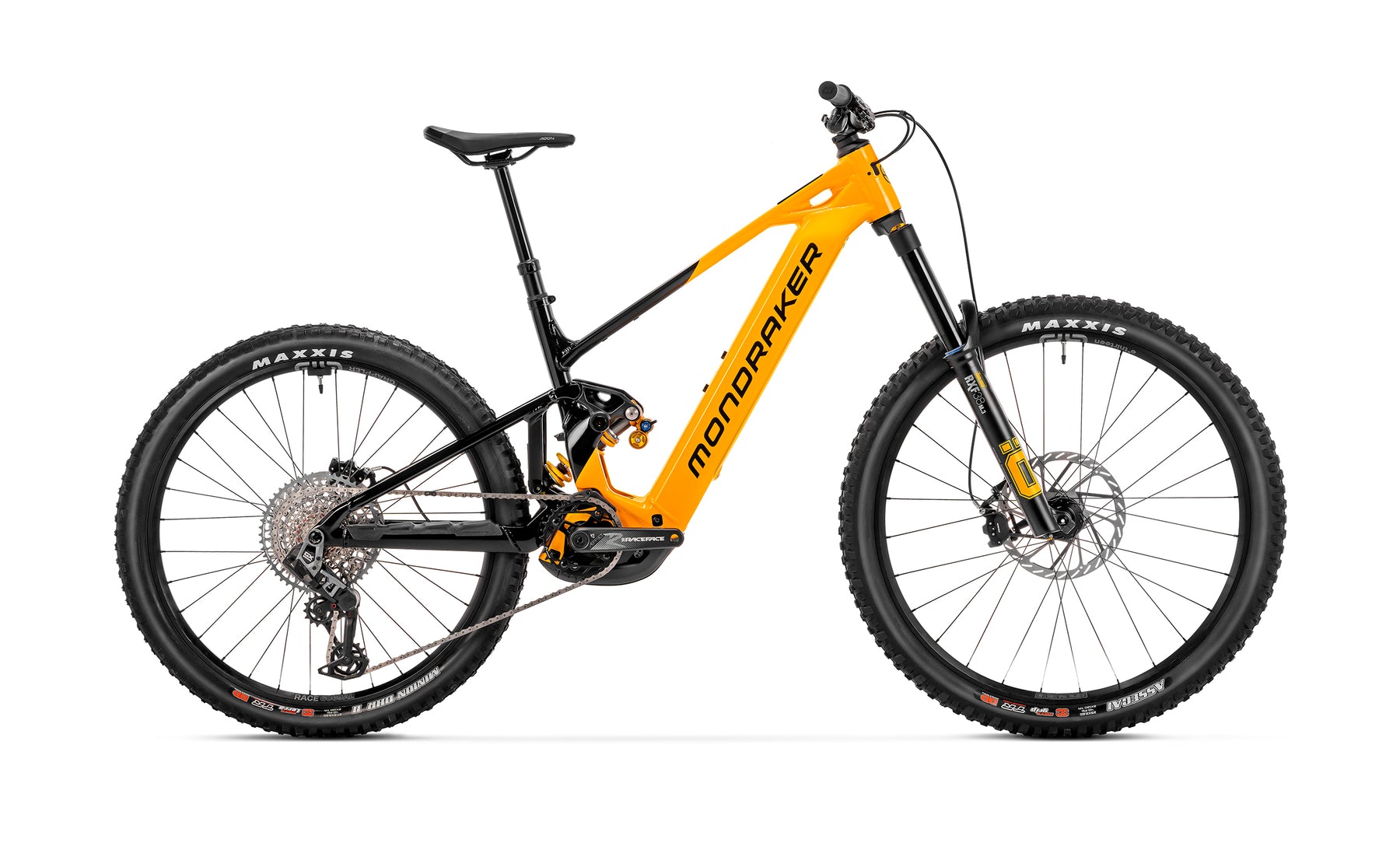

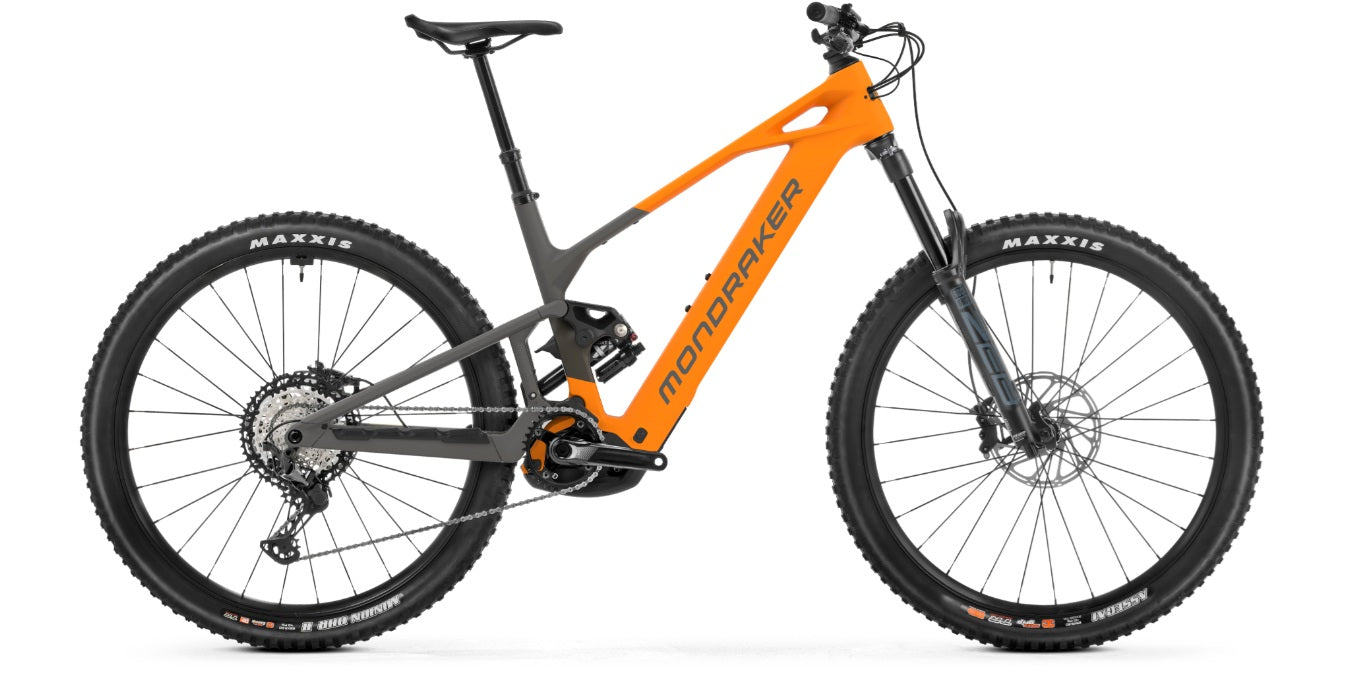

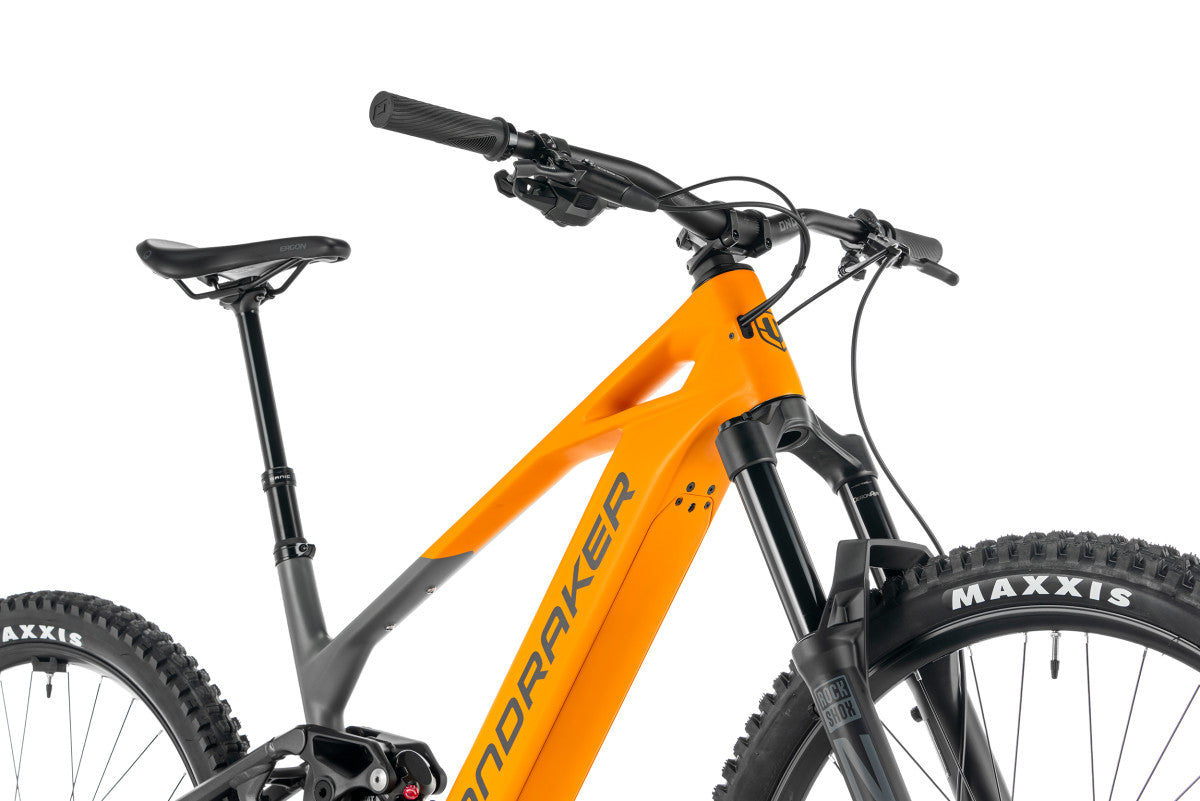

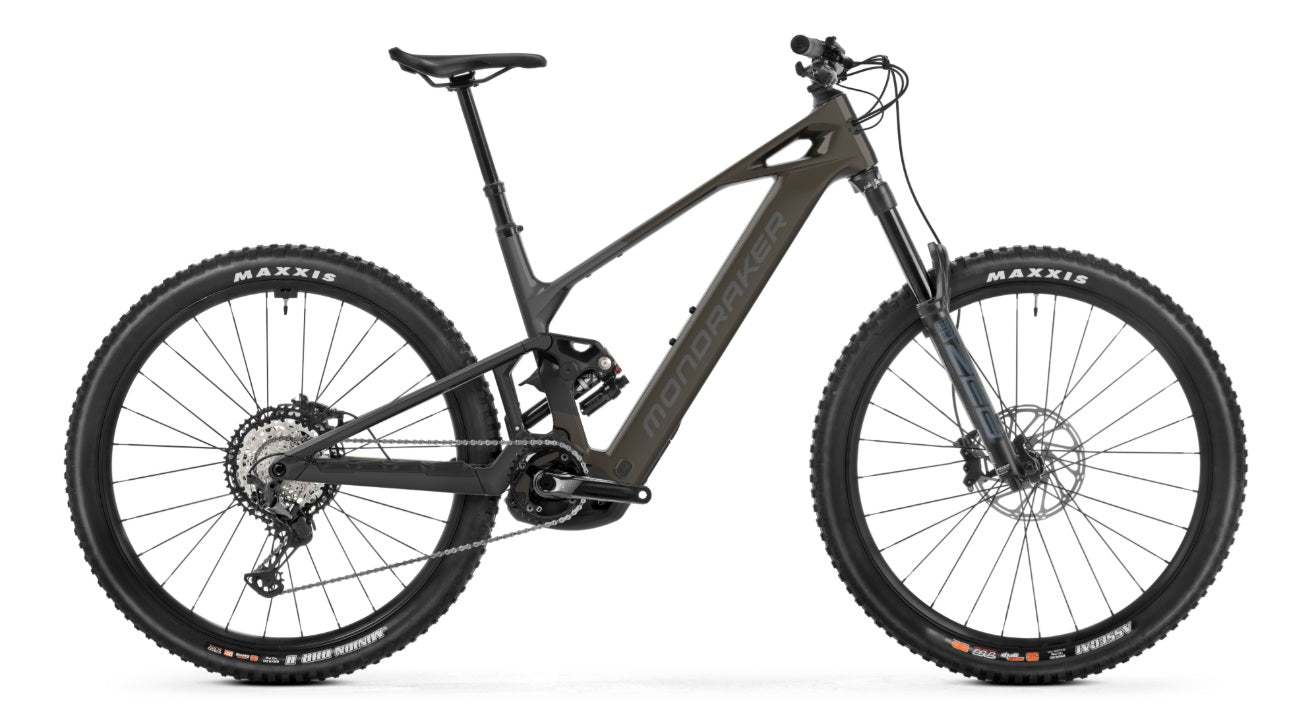

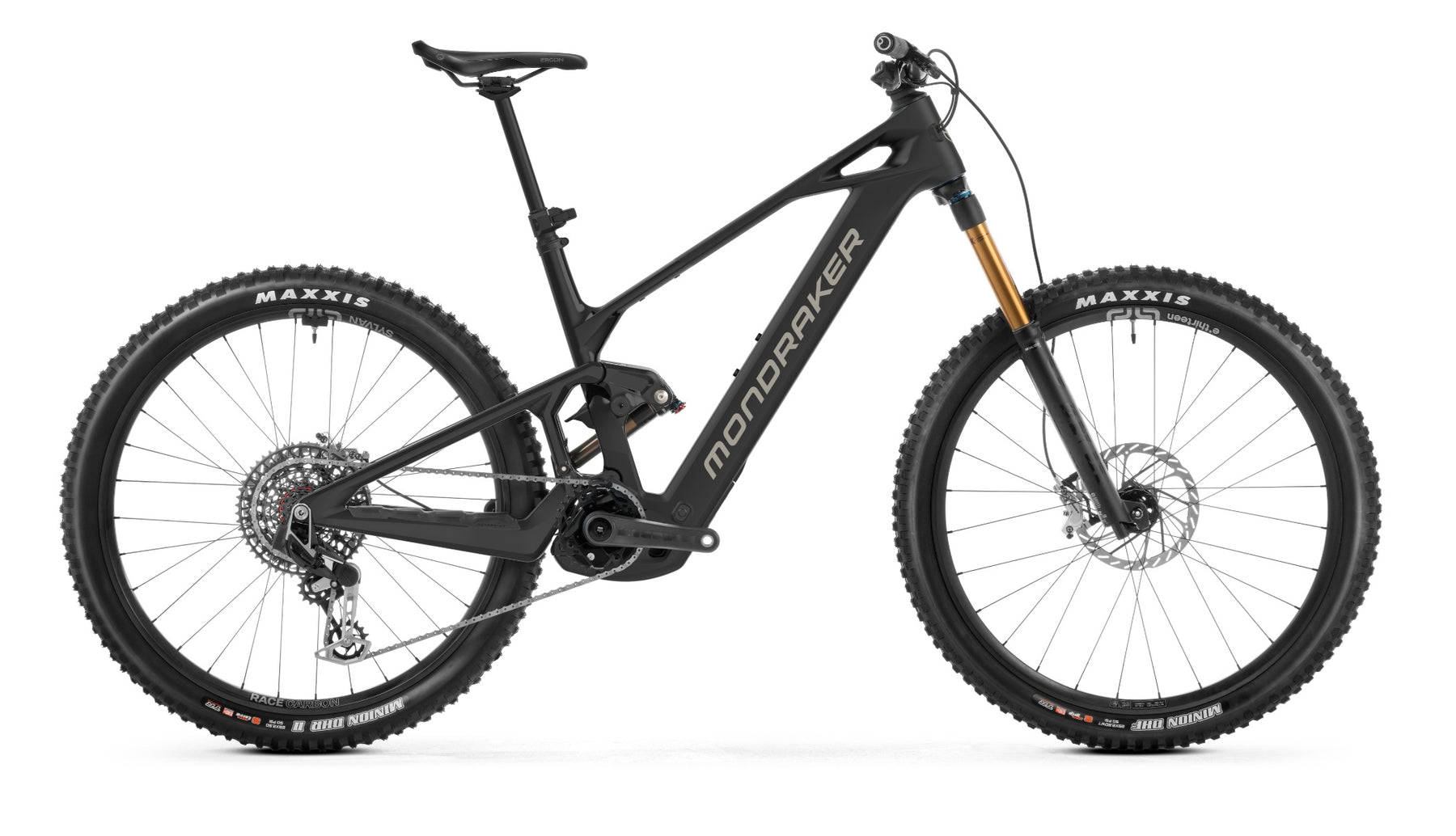

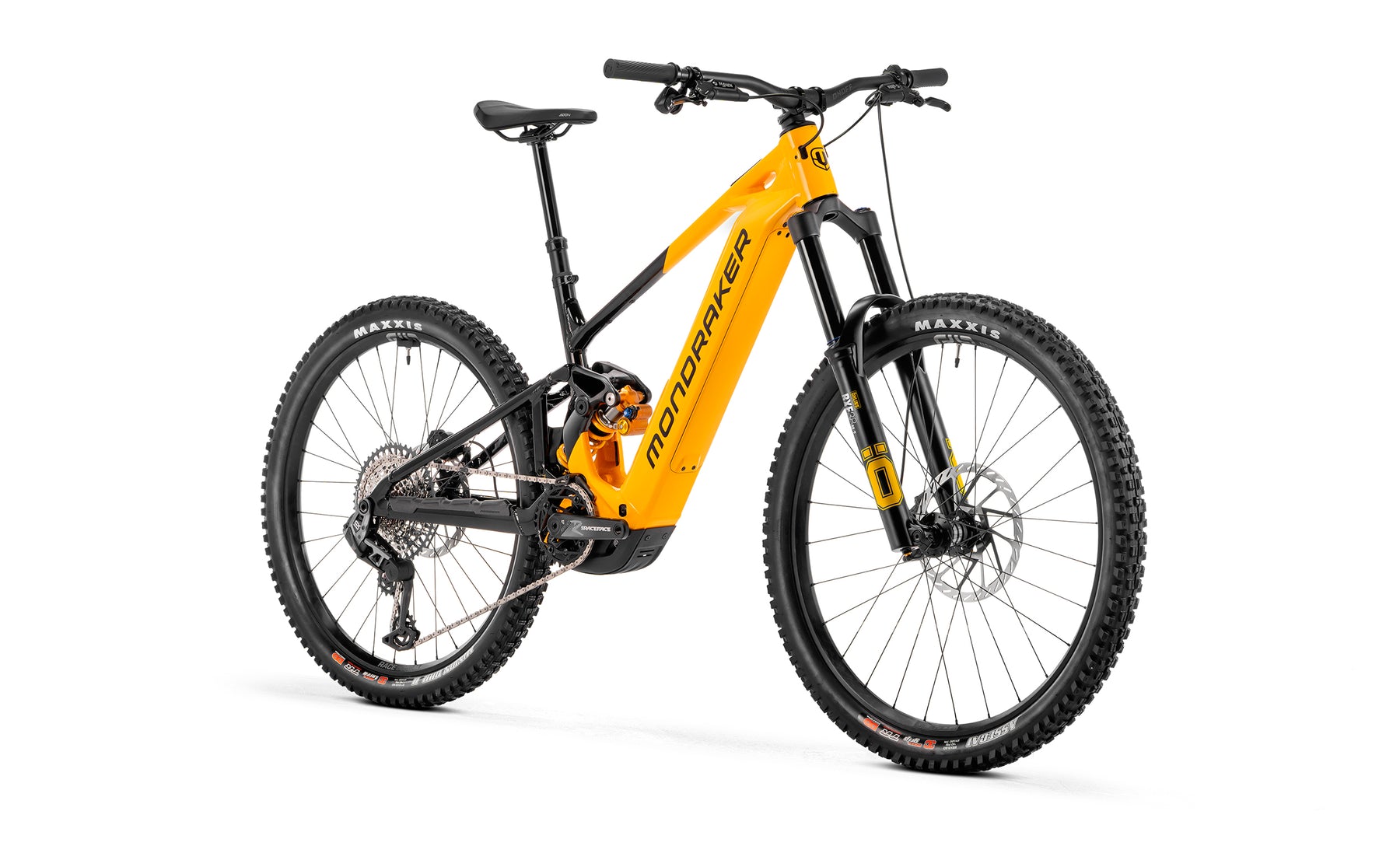

2025 Mondraker Crafty Carbon R EMTB

£6,299.00

Tax included. Shipping calculated at checkout.

CRAFTY CARBON R: ACCESS THE LATEST IN EVOLUTION

Crafty Carbon R is your ticket to ride Mondraker’s best range of ebikes ever. The Bosch CX motor, the heart of the machine, is combined with Bosch’s fully removable 800Wh battery (accessible via a cover on the underside of the downtube). This is the only build with a Shimano XT M8100 groupset, including XT four piston brakes, XT 12 speed rear mech and 10-51 cassette. Available in two colourways: Bunker Grey / Fog Grey / Flame Red, and Black / Nimbus Grey / Tonic Gold.

Components

Technical specs

Frame

Crafty Stealth Air full Carbon front triangle, Stealth Alloy rear triangle, Updated Zero Suspension System, 150mm travel, Forward Geometry, internal removable battery, Boost 12x148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 15mm axles, exclusive plastic motor covers.

Sizes

S: 380mm / M: 410mm / ML: 435mm / L: 460mm / XL: 490mm
Rear shock

Fox Float-X LV Performance, 185x55mm. Settings: compression 2 positions lever, low-speed rebound, air preload. Trunnion top mount, 30x8mm bottom bushings

Shock settings

CS40 compression, RL60 rebound, Rezi B40, LML, 0.2 volume spacer
Fork

Fox 38 29 Float GRIP Performance, 160mm, e-bike tuned, tapered steerer tube, Boost 15x110mm axle, 44mm offset. Settings: 3 positions with micro adjust compression, low-speed rebound, air preload

Headset

Acros custom ZS56/ZS56, 1-1/8", 1.5" head tube, Internal cable routing, sealing plugs without blocklock
Stem

Onoff S6 30mm 0º, 6061 forged alloy + CNC, 31.8mm barbore

Handlebar

Onoff S6 1.0 7050 alloy, rise: 25mm, width: 800mm, 8º backsweep, 5º upsweep, 31.8mm barbore. L and XL size: 1.5 rise.
Grips

Onoff Forest, CNC lock-on, 135mm

Seatpost

Onoff Pija dropper internal, diameter 31.6mm, 1X Remote lever with bearing, S size: 140-115mm (388-235mm), M size: 160-135mm (428-255mm), ML size: 180-155mm (468-275mm), L size: 210-185mm (528-305mm), XL size: 210-185mm (528-305mm)
Saddle

Ergon SM-10

Front brake

Shimano XT M8120, 4 piston caliper, MT800 ICE-Tech 203mm CenterLock rotor, resin pads with fin
Rear brake

Shimano XT M8120, 4 piston caliper, MT800 ICE-Tech 203mm CenterLock rotor, resin pads with fin

Brake lever

Shimano XT M8100, ergonomic antiskid lever with servo wave, tool less reach adjust, free stroke adjust
Rims

Mavic E-Deemax 29, 30mm internal width, welded, PFP, tubeless ready, 28 spokes

Spokes

Mavic J-bend double butted, contactless lacing
Front hub

Mavic, Boost 15x110mm, IS 6 bolts

Rear hub

Mavic, Boost 12x148mm, ID360 Ratched system, IS 6 bolts, MS freehub
Front tire

Maxxis Minion DHF 29x2.6, tubeless ready, 3C MAXX TERRA, EXO+ Protection, 120TPI, folding bead

Rear tire

Maxxis Minion DHR II 29x2.6, tubeless ready, 3C MAXX TERRA, EXO+ Protection, 120TPI, folding bead
Crankset

Race Face Aeffect-R ebike, 160mm

Rings

Race Face, 34T, steel, direct mount
Chain

Shimano XT M8100, 12s

Rear derrailleur

Shimano XT M8100, SGS, Shadow+
Shift levers

Shimano XT M8100, Rapid Fire Plus, 12s

Casette

Shimano XT M8100 10-51T Hyperglide+, 12s
Derailleur hanger

Sram UDH

Weight

23,9 kg
Display

Purion 400 / Bosch Mini Remote / Bosch System Controller

Motor

New Bosch Performance Line CX Cruise (25Km/h) SMART SYSTEM (BDU384Y)
Battery

Bosch Powertube 800Wh

Geometry

Mondraker

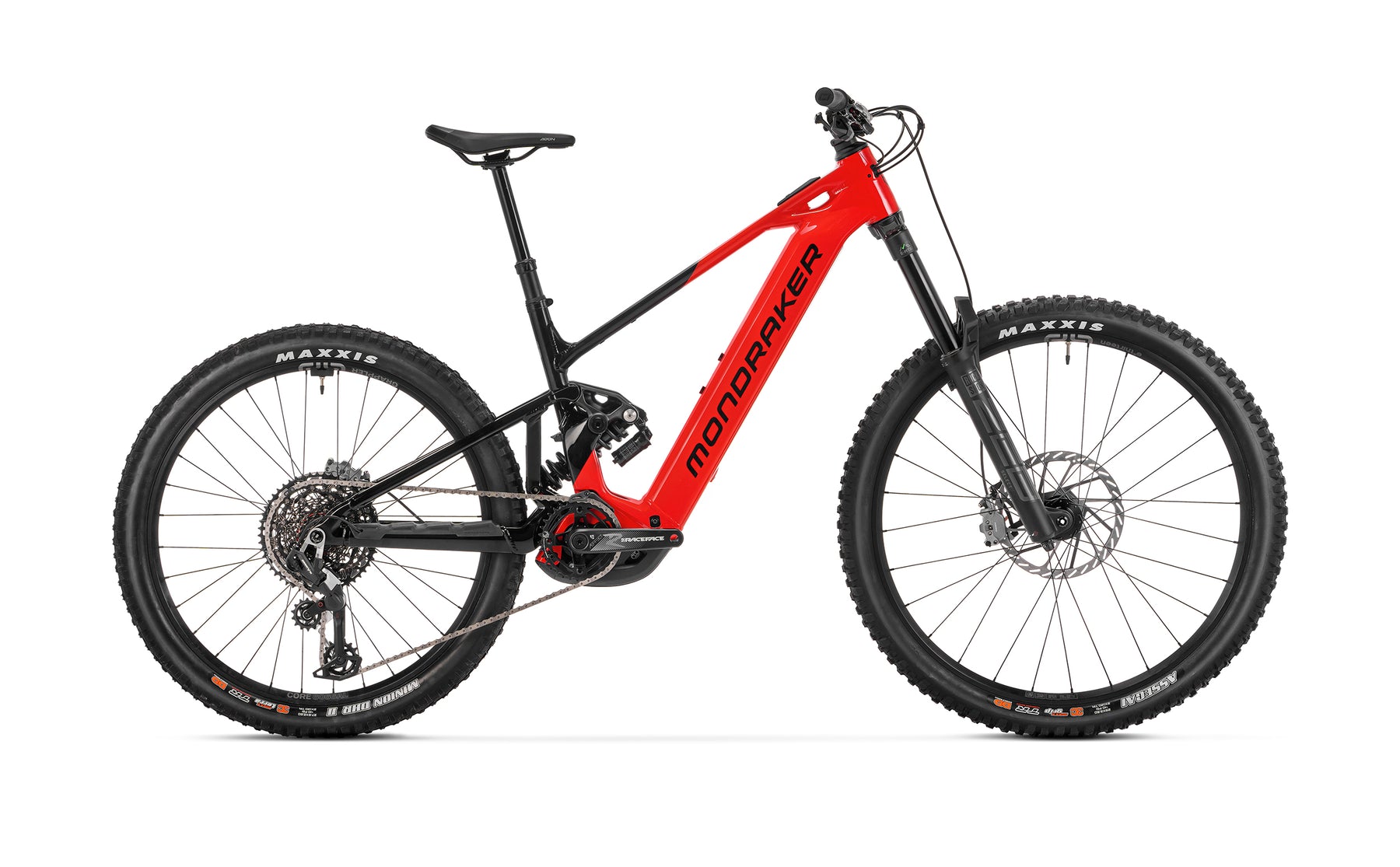

2025 Mondraker Crafty Race EMTB

£5,799.00 £4,899.00 Save £900.00

Tax included. Shipping calculated at checkout.

CRAFTY

THE GAME IS OVER!

The game is over, welcome to a new generation of authentic e-Enduro. Without compromises, the new Crafty Race is a pure performance model, an authentic Enduro bike; With great suspension capability and amazing pedaling efficiency ... agile like no other 29” e-MTB thanks to its renewed Forward Geometry and, all sweetened with raw power of the fourth generation of the Bosch CX Race Motor system. Enjoy the real life.

Components

Technical specs

Frame

Crafty 6061 Alloy Stealth Evo, e-Bike Optimized Zero Suspension System, 150mm travel, Forward Geometry, internal non-removable battery, Boost 12x148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 17mm axles, integrated dropout speed sensor, exclusive plastic motor covers.

Sizes

S: 380mm / M: 420mm / L: 450mm / XL: 490mm
Rear shock

Fox Float-X LV Performance, 205x65mm. Settings: compression 2 positions lever, low-speed rebound, air preload. Trunnion top mount, 25x10mm bottom bushings

Shock settings

medium compression, medium rebound, air volume spacer 0.2
Fork

Fox 38 29 Float FIT GRIP EVOL Performance, 160mm, e-bike tuned, tapered steerer tube, Boost 15x110mm axle, 44mm offset. Settings: 3 positions with micro adjust compression, low-speed rebound, air preload

Headset

Onoff Saturn tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41x30.2x7x45ºx45º, bottom 51.9x40x8x45ºx45º
Stem

Onoff Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore

Handlebar

Onoff Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore
Grips

Onoff Desert, 1lock-on, 135mm

Seatpost

Onoff Pija dropper internal, diameter 31.6mm, 1X Remote lever with bearing, S size: 405x95-125mm, M size: 458x120-150mm, L size: 498x140-170mm, XL size: 558x170-200mm
Saddle

Ergon SM-10

Front brake

Shimano XT M8120, 4 piston caliper, MT800 ICE-Tech 203mm CenterLock rotor, resin pads with fin
Rear brake

Shimano XT M8120, 4 piston caliper, MT800 ICE-Tech 203mm CenterLock rotor, resin pads with fin

Brake lever

Shimano XT M8100, ergonomic antiskid lever with servo wave, tool less reach adjust, free stroke adjust
Rims

Mavic E-Deemax 29, 30mm internal width, welded, PFP, tubeless ready, 28 spokes

Spokes

Mavic J-bend double butted, contactless lacing
Front hub

Mavic, Boost 15x110mm, IS 6 bolts

Rear hub

Mavic, Boost 12x148mm, ID360 Ratched system, IS 6 bolts, MS freehub
Front tire

Maxxis Minion DHF 29x2.6, tubeless ready, 3C MAXX TERRA, EXO+ Protection, 120TPI, folding bead

Rear tire

Maxxis Minion DHR II 29x2.6, tubeless ready, 3C MAXX TERRA, EXO+ Protection, 120TPI, folding bead
Crankset

Race Face Aeffect-R ebike, 160mm

Rings

Race Face, 34T, steel, direct mount
Chain

Shimano XT M8100, 12s

Rear derrailleur

Shimano XT M8100, SGS, Shadow+
Shift levers

Shimano XT M8100, Rapid Fire Plus, 12s

Casette

Shimano XT M8100 10-51T Hyperglide+, 12s
Derailleur hanger

Mondraker M068

Weight

25,2 kg
Display

Purion 400 Bosch Mini Remote / Bosch System Controller

Motor

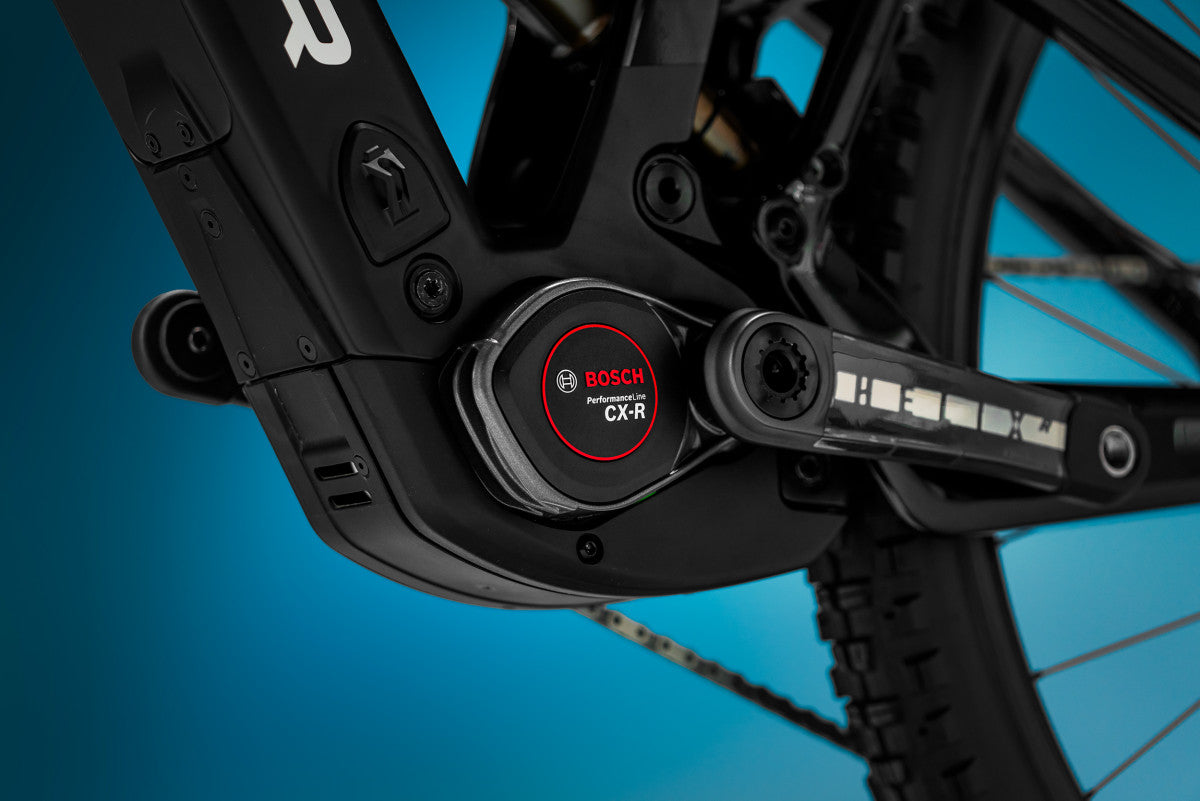

Bosch Performance Line CX-Race (25Km/h) GEN4 SMART SYSTEM

Battery

Bosch Powertube 750Wh

Geometry


	Frame size	S	M	L	XL
A	Seattube length	380mm	420mm	450mm	490mm
B	Toptube length	605mm	625mm	650mm	670mm
C	Bottom bracket drop	-25mm	-25mm	-25mm	-25mm
D	Bottom bracket height	350mm	350mm	350mm	350mm
E	Chainstay length	455mm	455mm	455mm	455mm
F	Seat tube angle	73.5°	73.5°	73.5°	73.5°
G	Effective seattube angle	76°	76°	76°	76°
H	Headtube angle	65.5°	65.5°	65.5°	65.5°
I	Fork Offset	44mm	44mm	44mm	44mm
J	Wheelbase	1225mm	1245mm	1265mm	1285mm
K	Headtube length	110mm	110mm	130mm	130mm
L	Reach	450mm	470mm	490mm	510mm
M	Stack	622mm	622mm	640mm	640mm

Mondraker

2025 Mondraker Dune R Light EMTB

£6,799.00

Tax included. Shipping calculated at checkout.

DUNE R: THE ENTRY LEVEL BUILD

The entry level DUNE R gives up little to its more expensive siblings. A 170mm FOX 38 Float 3P Performance Grip fork keeps the front wheel in check while a Fox Float X Performance EVOL shock tames things at the back, SRAM supplies the GX Eagle rear mech and E.13 their E*Spec Plus cranks, ONOFF provide the Pija dropper post, SRAM the DB8 brakes and e*thirteen Grappler Core wheels with 30mm wide aluminium rims round things out.

Technical specs

Frame

Stealth Air full Carbon, Updated Zero Suspension System, Mullet, 165mm travel, Forward Geometry, internal battery, Boost 12x148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 15mm axles, exclusive plastic motor covers.

Sizes

S: 380mm / M: 420mm / L: 450mm / XL: 490mm
Rear shock

Fox Float X Performance EVOL, 205x65mm. Settings: 2-position compression (Open/Firm), rebound, air preload. Trunnion top mount, 30x8mm bottom bushings

Shock settings

Medium compression, medium rebound, air volume spacer 0.4
Fork

FOX 38 Float 3P Performance Grip, 170mm, e-bike tuned, tapered steerer tube, Boost 15x110mm axle, 44mm offset. Settings: 3 positions with micro adjust compression, low-speed rebound, air preload

Headset

Acros custom IS52/ZS56, 1-1/8", 1.5" head tube, Internal cable routing, sealing plugs without blocklock
Stem

Onoff S6 30mm 0º, 6061 forged alloy + CNC, 31.8mm barbore

Handlebar

Onoff S6 1.0 7050 alloy, rise: 25mm, width: 800mm, 8º backsweep, 5º upsweep, 31.8mm barbore. L and XL size: 1.5 rise.
Grips

Onoff Forest, CNC lock-on, 135mm

Seatpost

Onoff Pija dropper internal, diameter 31.6mm, 1X Remote lever with bearing, S size: 140-115mm (388-235mm), M size: 160-135mm (428-255mm), L size: 180-155mm (468-275mm), XL size: 210-185mm (528-305mm)
Saddle

Fizik Terra Aidon Slim X5

Front brake

Sram DB8 stealth, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads
Rear brake

Sram DB8 stealth, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads

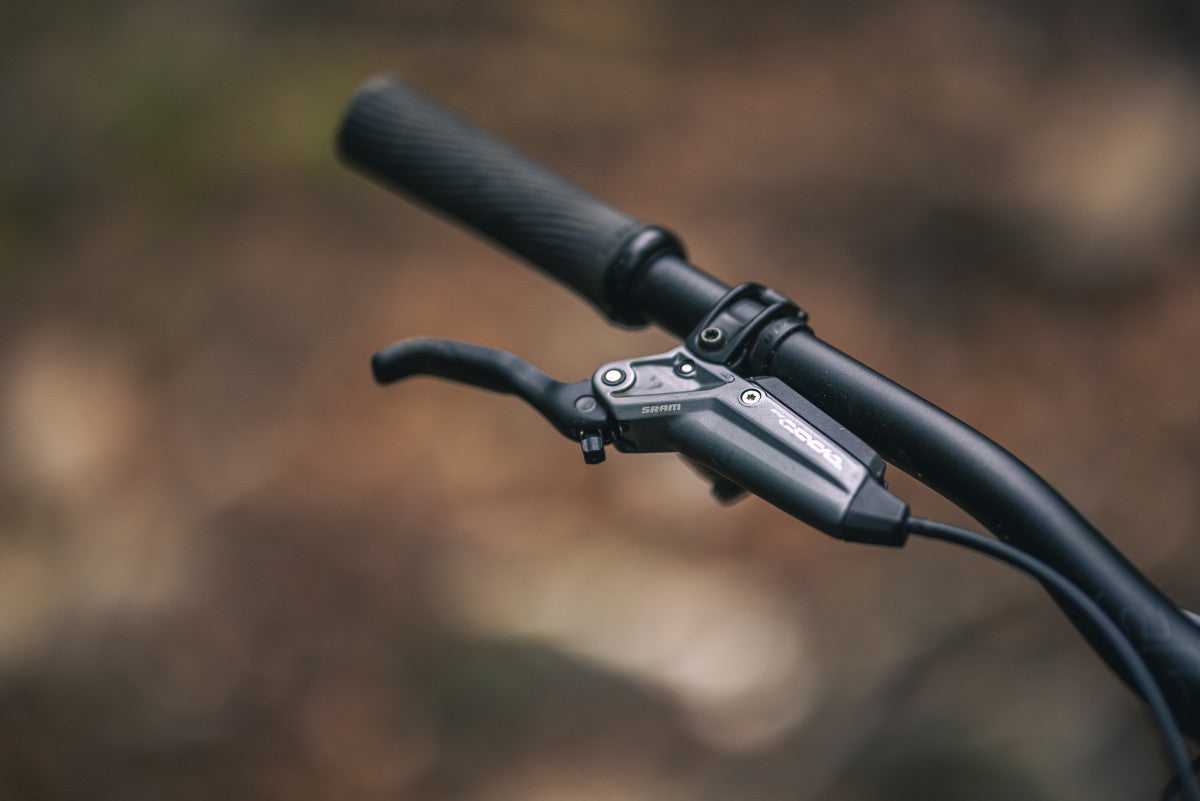

Brake lever

Sram DB8, SwingLink and lever pivot bearings, tools-free reach and contact point adjust
Rims

e*thirteen Grappler Core, Hookless 6066 Welded Aluminum 30mm internal width, tubeless ready, 28F spokes 29 front, 27''''''''5 rear

Spokes

e*thirteen custom J-bend, triple-butted steel, alloy nipples, nipple washers
Front hub

e*thirteen Boost 15x110mm, triple-sealed, fully machined aluminum, IS 6 bolts

Rear hub

e*thirteen Boost 12x148mm, triple-sealed, fully machined aluminum w/6-degree engagement, IS 6 bolts, HG Freehub

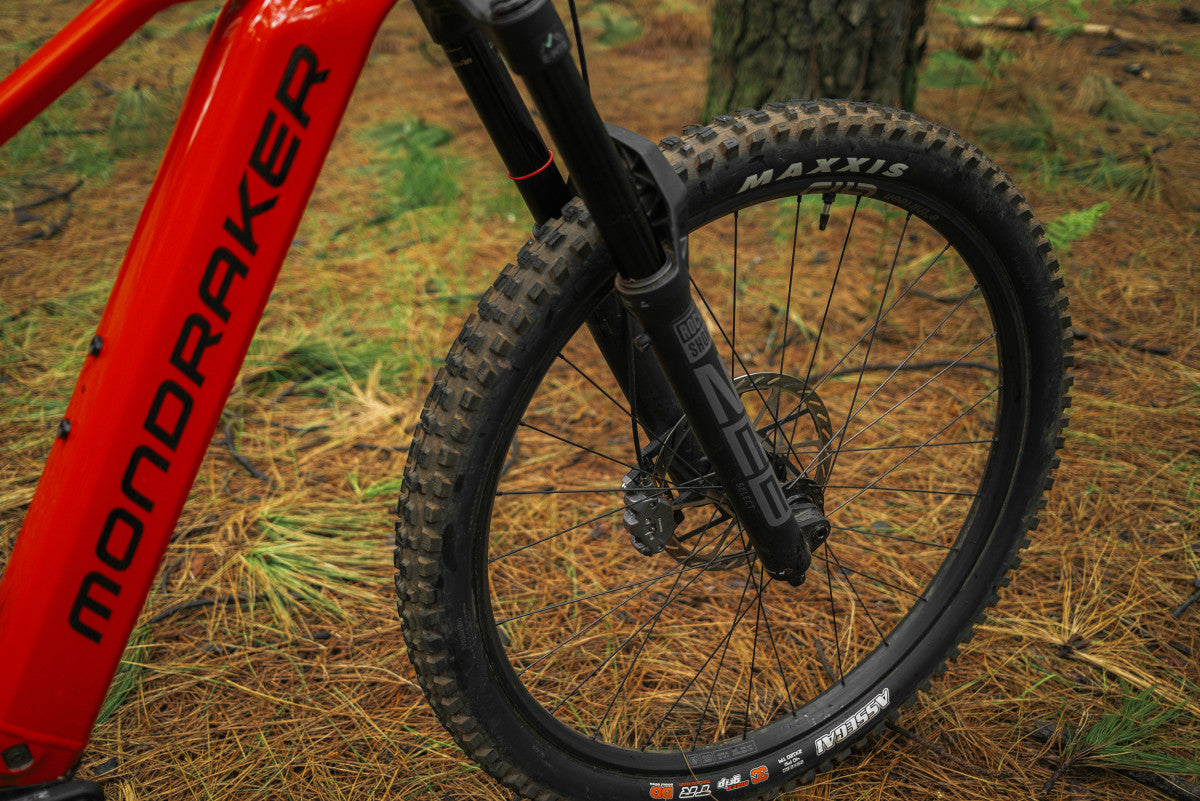

Front tire

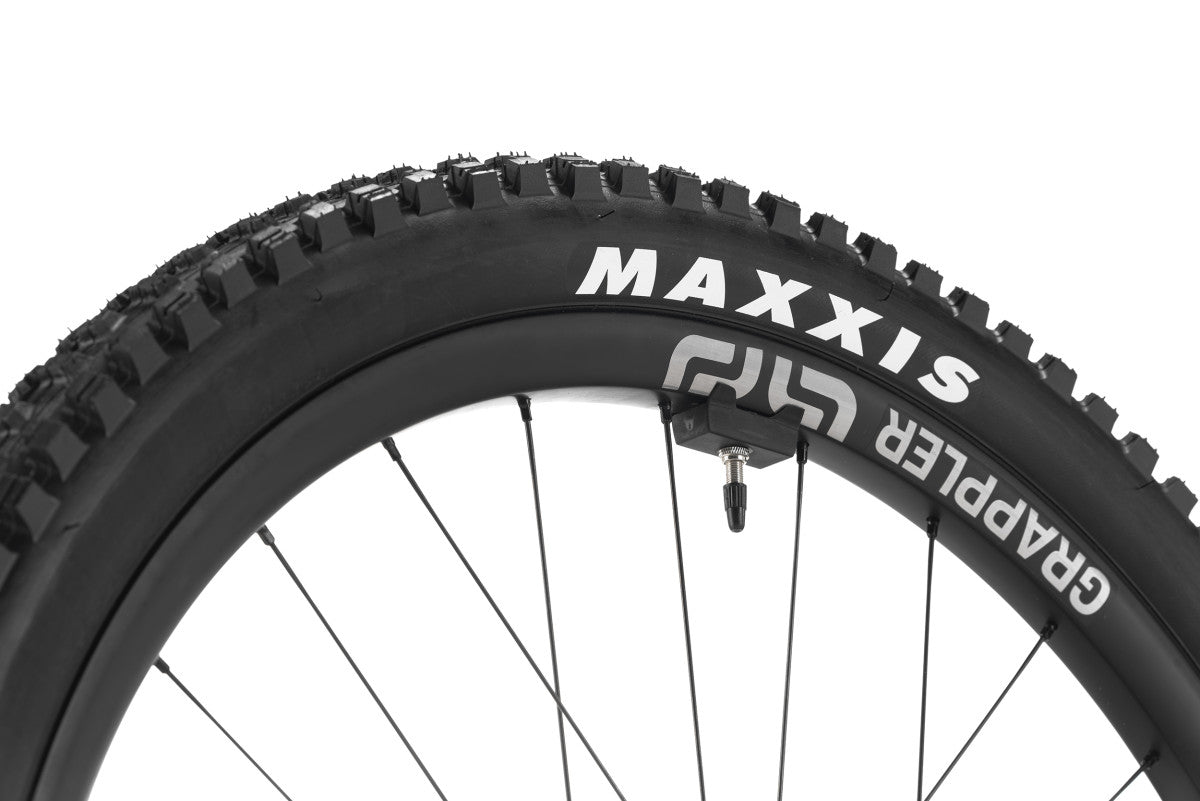

Maxxis Assegai 29x2.5WT, tubeless ready, 3C MAXX GRIP compound, DH casing, 60x2TPI, folding bead

Rear tire

Maxxis Minion DHR II 27’5x2.4 WT, tubeless ready, 3C MaxxTerra compound, DD protection, 2x120TPI, folding bead
Crankset

e*Thirteen Helix Core E*Spec Plus, All sizes: 160mm

Rings

Sram X-Sync 2 Eagle 34T, steel, narrow-wide, 104 BCD
Chain

Sram NX Eagle, 12s, Powerlock

Rear derrailleur

Sram GX Eagle,12s
Shift levers

Sram Trigger NX Eagle, 12s, X-Actuation 1:1, single click

Casette

Sram PG-1230, 11-50T, 12s
Derailleur hanger

Sram UDH

Weight

19,9 kg
Display

Purion 400 / Bosch Mini Remote / Bosch System Controller

Motor

Bosch Performance Line SX (25Km/h) GEN4 SMART SYSTEM Diagonal, Wide

Battery

Bosch Compact Powertube 400Wh

Geometry

Frame size		S	M	L
A	Seattube length	380mm	420mm	450mm	490mm
B	Toptube length	600mm	620mm	645mm	665mm
C	Bottom bracket drop	-21/0mm	-21/0mm	-21/0mm	-21/0mm
D	Bottom bracket height	352mm	352mm	352mm	352mm
E	Chainstay length	445mm	445 mm	445mm	445mm
F	Seat tube angle	74,0º	74,0º	74,0º	74,0º
G	Effective seattube angle	77,5°	77,5°	77,5°	77,5°
H	Headtube angle	64º	64º	64º	64º
I	Fork Offset	44mm	44mm	44mm	44mm
J	Wheelbase	1232mm	1260mm	1285mm	1309mm
K	Headtube length	100mm	110mm	130mm	140mm
L	Reach	445mm	465mm	485mm	505mm
M	Stack	621mm	630mm	648mm	658mm

Read less

Mondraker

2025 Mondraker Neat RR Light EMTB

£8,499.00

Tax included. Shipping calculated at checkout.

PLEASE EVERYONE, STAND UP AND WELCOME THE NEAT.

A new beginning. A new era of ebikes. Born and bred with all of our character, identity and feeling. A Mondraker by definition, but more manoeuverable, nimble and even faster than ever before. A new cycle with a new leader.

A NEW CYCLE

Three years ago, we started a project with a mission. Just one. To create a new generation of ebikes that would redefine the current concept of mountain biking. A new category which would enhance the very best version of yourself as a rider, to make you faster, everywhere. Powerful yet silent. Stable yet agile. A mission we dubbed NEAT and which has led to the first Light e-MTB in our history. With this model we’re opening the doors to a new category with the TQ-HPR50 motor, an integrated removable 360W battery, a full carbon fibre frame and a ready to roll weight of under 18kg. Mission accomplished. Now it’s your turn. Mondraker NEAT.

The NEAT range shares the same carbon fibre frame but with three different builds to choose from: NEAT R, NEAT RR and NEAT RR SL. All three come with a Fox Float X shock and Fox 36 fork, 4 piston brakes and Maxxis Minion DHF and DHR tyres with EXO+ sidewalls.

The package is completed with an ebike specific wheel and tyre package, 4 piston brakes and the quietest and most advanced motor on the market: the TQ-HPR50, combined with an integrated removable 360Wh battery. We didn’t rush this project, but the results speak for themselves: The NEAT is here. The NEAT is a reality.

After several years of taking stock of the state of the market and deciding that it just didn’t convince us, we developed the NEAT project utilizing an innovative system of motor and battery, more than capable of satisfying the needs of this sector and with which we felt we could identify as riders. We understood that weight was a key factor for this new platform, but we couldn’t let it compromise the performance of the whole package, the suspension travel or the handling.

BEST OF BOTH WORLDS

Mondraker has managed to merge the best of both worlds by blending our two category leading bikes: the Enduro FOXY CARBON and e-MTB Enduro CRAFTY CARBON. 2024 then, sees the arrival of NEAT. A model with unmistakable aesthetics, characteristics and identity which sets a benchmark in this new category.

DEFINING OUR LIGHT E-MTB

NEAT is our vision of what the Light e-MTB category should be, while bringing the character which defines all Mondraker bikes into the mix.

NEAT is the product of our desire to blur the line between traditional MTBs and full power eMTBs, creating a bike which truly offers the best of both worlds. A 150mm enduro bike with a 160mm fork, the lower limit travel for maximum performance. Light, but without sacrificing anything in the process.

LIGHT WEIGHT WITHOUT COMPROMISE

NEAT is the expression of a new design concept. The layout is more angular, cleaner, especially around the headtube. This area, where the headtube joins both the top tube and the down tube, defines the identity of all Mondrakers, and expresses from this model on a new look for the brand.

The defining lightness of the frame (only 2300 grams) together with the redesigned swingarm which is lighter and more compact, make NEAT the lightest ever MTB ebike in the history of Mondraker, weighing in at under 18kg for the RR SL build.

THE BALANCED GEOMETRY OF NEAT

NEAT comes with category specific geometry and counts on the best that the FOXY CARBON and CRAFTY CARBON offer in their respective categories.

64.5º head angle. As slack as a FOXY CARBON in the LOW setting.

76.5º effective seat tube angle. 1º steeper than the FOXY CARBON.

450mm chainstays. 5mm shorter than the CRAFTY CARBON and 5mm longer than the FOXY CARBON.

BB height of 348mm (-25mm drop). The perfect height for an ebike of its class.

Reach of 450/470/495/515mm (S/M/L & XL). Reach figures inspired by the FOXY CARBON and CRAFTY CARBON.

FRAME SIZE		S	M	L
A	Seattube length	380mm	420mm	450mm	490mm
B	Toptube length	595mm	615mm	640mm	660mm
C	Bottom bracket drop	-25mm	-25mm	-25mm	-25mm
D	Bottom bracket height	348mm	348mm	348mm	348mm
E	Chainstay length	450mm	450mm	450mm	450mm
F	Seat tube angle	72,6º	72,6º	72,6º	72,6º
G	Effective seattube angle	76.5°	76.5°	76.5°	76.5°
H	Headtube angle	64.5º	64.5º	64.5º	64.5º
I	Fork Offset	44mm	44mm	44mm	44mm
J	Wheelbase	1235mm	1255mm	1275mm	1295mm
K	Headtube length	110mm	110mm	130mm	140mm
L	Reach	450mm	470mm	495mm	515mm
M	Stack	626mm	626mm	642mm	650 mm

NATURAL FEEL TQ-HPR50 SYSTEM

The TQ-HPR50 system comprises a very compact motor which we’ll talk about later on, a 360Wh removable internal battery located in the downtube, a 2” display fitted into the top tube and an optional 160Wh range extender. The whole system weighs in at 3.9Kg, 1850g the motor and 1830g the 360Wh battery. The optional TQ range extender weighs 950g.

Combining 3 natural-feeling levels of assistance and running almost silently, the TQ-HPR50 provides up to 300W of power and 50Nm of torque. A multitude of variables will always come into play when talking about range, but a rider of average weight (around 75Kg) can expect to be able to complete a ride of between 3-4 hours, with more than 1000m of altitude gain, switching between ECO and MID modes, and ride anywhere from 40 to 50km. The optional range extender can increase that by up to 50%.

NEAT = ANY TYPE OF RIDER AND ANY TYPE OF RIDING

NEAT is a new category of bike for Mondraker. A category that was until now unrealised, falling between the flexibility of a FOXY CARBON and the capability of a CRAFTY CARBON. NEAT walks the perfect line between the two, for any type of rider and any type of riding.

-Riders who are making the move from a traditional mountain bike or who are just starting out on an ebike: NEAT lets you ride faster, farther, and descend with more aplomb and more safely than ever before, without sacrificing the feelings and handling of a traditional non-ebike MTB.

-Riders who are making the move from a full power ebike: NEAT is going to make your ride fleeter of foot, more agile, and faster reacting on climbs without giving up the traits of an ebike on the descents.

NEAT RR

The intermediate model in the range is the NEAT RR, with a Fox 36 29 Float GRIP2 Factory Kashima fork, SRAM GX Eagle AXS transmission, SRAM Level Bronze Stealth brakes, Fox Transfer Factory Kashima seatpost and Mavic E-DeeMax SL 29 wheels.

TECHNICAL SPECS

- Frame

  Stealth Air full Carbon, Updated Zero Suspension System, 150mm travel, Forward Geometry, internal & removable battery, Boost 12x148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 15mm axles, integrated dropout speed sensor, exclusive plastic motor covers.

  Sizes

  S: 380mm / M: 420mm / L: 450mm / XL: 490mm
- Rear shock

  Fox Float X Factory Kashima EVOL, 185x55mm. Settings: 2-position compression (Open/Firm), rebound, air preload. Trunnion top mount, 30x8mm bottom bushings

  Shock settings

  CS40 compression, RL60 rebound, Rezi B40, LML, 0.2 volume spacer
- Fork

  Fox 36 29 Float GRIPX2 Factory Kashima, 160mm, tapered steerer tube, Boost 15x110mm Kabolt axle, 44mm offset. Settings: high and low-speed compression, high and low-speed rebound, air preload

  Headset

  Acros custom IS52/ZS56, 1-1/8", 1.5" head tube, Internal cable routing, sealing plugs without blocklock
- Stem

  Onoff S6 30mm 0º, 6061 forged alloy + CNC, 31.8mm barbore

  Handlebar

  Onoff S6 1.0 Carbon, rise: 25mm, width: 800mm, 8º backsweep, 5º upsweep, 31.8mm barbore. L and XL size: 1.5 rise.
- Grips

  Onoff Forest, CNC lock-on, 135mm

  Seatpost

  Fox Transfer Factory Kashima internal, adjustable travel, Shimano SL-MT800-IL lever, diameter 31.6mm,S size: 95mm -120mm, M size: 125mm -150mm, L size: 155mm -180mm, XL size: 185mm -210mm
- Saddle

  Fizik Terra Aidon Slim X5

  Front brake

  Shimano XT M8120, 4 piston caliper, MT800 ICE-Tech 203mm CenterLock rotor, resin pads with fin
- Rear brake

  Shimano XT M8120, 4 piston caliper, MT800 ICE-Tech 203mm CenterLock rotor, resin pads with fin

  Brake lever

  Shimano XT M8100, ergonomic antiskid lever with servo wave, tool less reach adjust, free stroke adjust

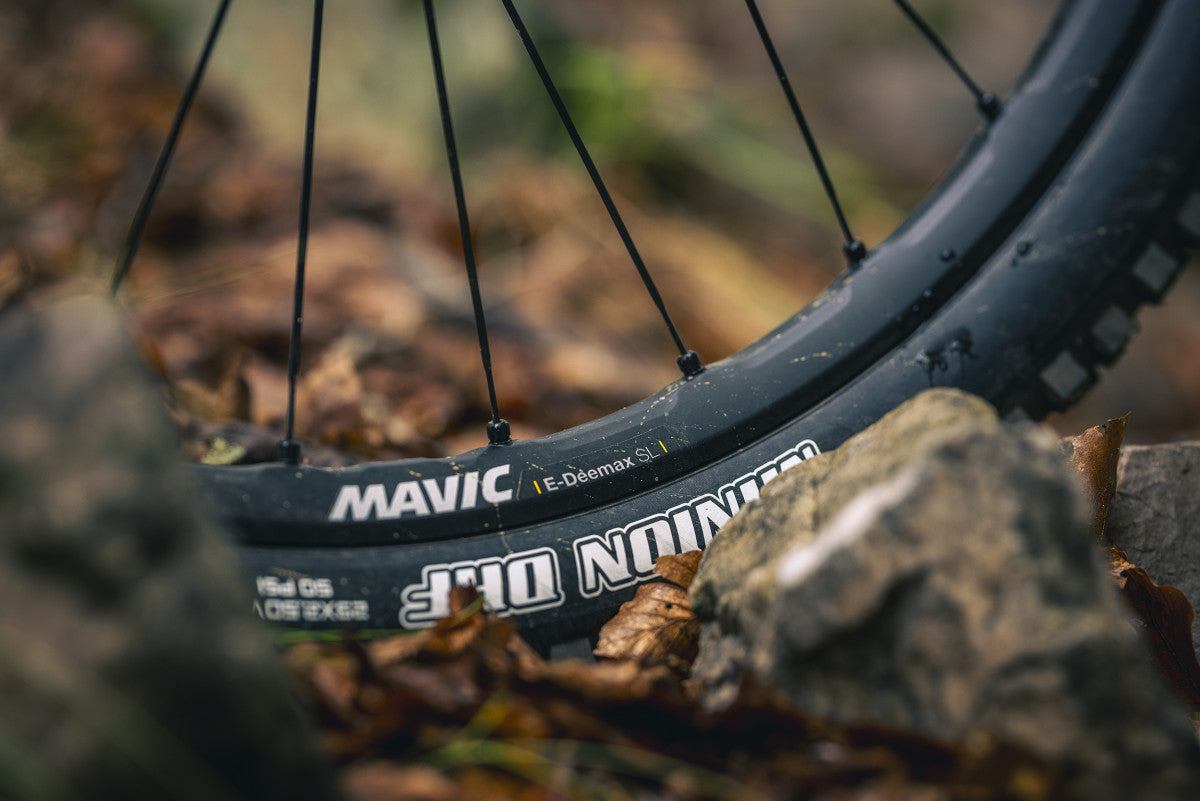

- Rims

  Mavic E-CrossTrail SL, 29 Boost 30mm internal width, hookless, tubeless ready, 28 spokes

  Spokes

  Mavic 28 straight-pull double butted spokes
- Front hub

  Mavic Infinity hub, Boost 15x110mm, IS 6 bolts

  Rear hub

  Mavic Infinity hub, ID360 freewheel technology, Boost 12x148mm, IS 6 bolts XD freehub
- Front tire

  Maxxis Minion DHF 29x2.5 WT, tubeless ready, 3C MAXX GRIP compound, EXO+ protection, 60TPI, folding bead

  Rear tire

  Maxxis Minion DHR II 29x2.5 WT, tubeless ready, 3C MAXX TERRA compound, EXO+ protection, 60TPI, folding bead
- Crankset

  e*Thirteen Helix Core E*Spec Plus, All sizes: 160mm

  Rings

  Sram X-Sync 2 Eagle 34T T-Type, steel, narrow-wide, 104 BCD
- Chain

  Sram GX Eagle T-Type, 12s, Powerlock

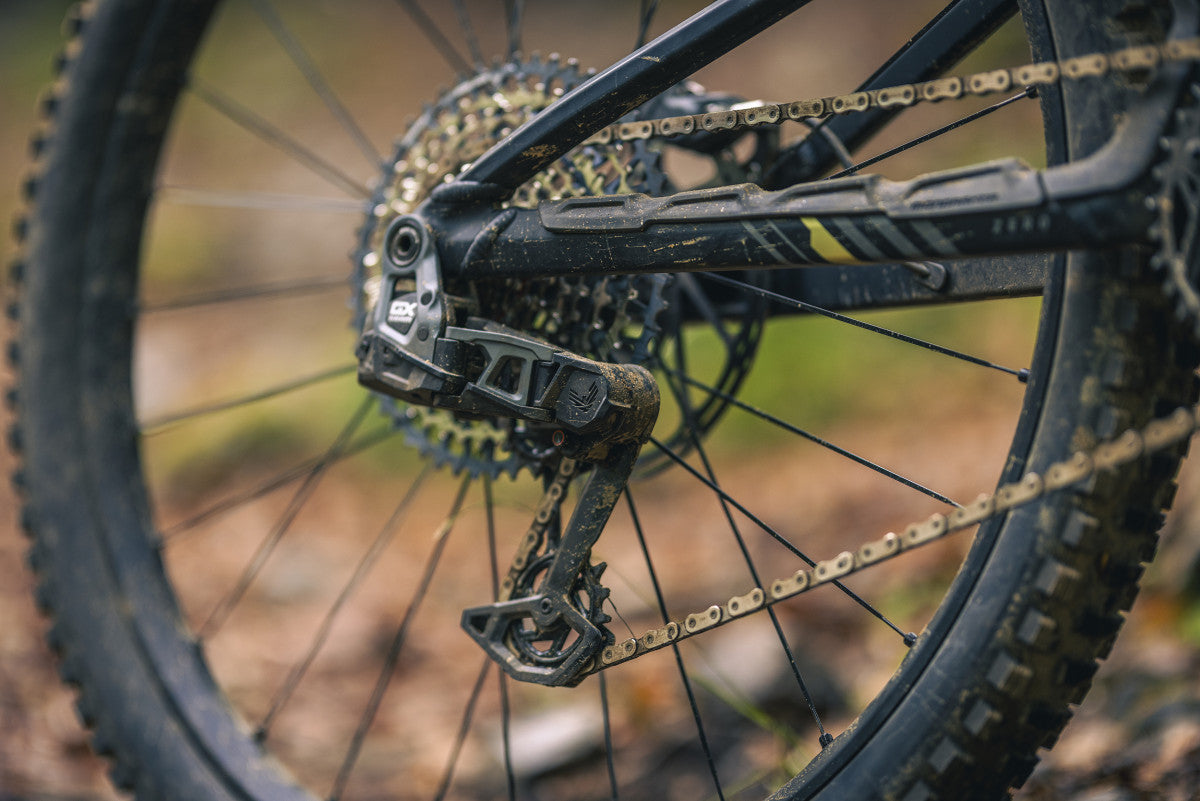

  Rear derrailleur

  Sram GX Eagle AXS T-Type,12s
- Shift levers

  Sram Eagle AXS Pod MMX, 12s

  Casette

  Sram XS-1275, 10-52T, T-Type, 12s
- Others

  Mondraker custom desing Fidlock smoked transparent 600ml bottle + Fidlock base down version *Optional external battery: TQ 160Wh

  Weight

  18,7 kg
- Display

  TQ HPR display V01

  Motor

  TQ HPR-50
- Battery

  TQ HPR-50 360Wh integrated and removable

Mondraker

2025 Mondraker Sly R EMTB

£5,299.00 £5,295.00 Save £4.00

Tax included. Shipping calculated at checkout.

IT’S ABOUT WHO YOU WANT TO BE

SLY belongs to each and every one of us. To you too. A new breed of ebike blending Stealth aluminium with a Bosch SX motor and a 400Wh battery. Providing a balanced power delivery to make you the master of your rides. It’s not about who you are when you’re riding an ebike. It’s about who you want to be. Introducing SLY. ONE SLY FITS ALL.

R AND RR: TWO BUILDS THAT DEFINE SLY

Sometimes less is more. We had that clear from the beginning when designing SLY. The two builds available are the R and the RR, and they both boast 4 piston brakes, all-new 2.5” Maxxis DHF/DHR II EXO+ tyres, 12 speed Eagle T-Type drivetrains, up to 210mm ONOFF Pija dropper posts, and 800mm handlebars. The R build comes with a 160mm fork with 35mm stanchions, while the RR has a burlier 160mm fork with 36mm stanchions. Both models come with the Bosch display, mounted on the handlebar. And the mini remote on the handlebar to switch between assist modes on the Bosch SX motor.

SLY R: ACCESS YOUR SLY

Access a world of SLY. Access the best cost performance out there.

The R build offers RockShox suspension with a Psylo Gold RC 160mm fork paired with a Rockshox Deluxe Select+ shock; SRAM 4 piston DB8 Stealth brakes to keep things firmly under control, and Mavic 29”, 30mm E-CrossRide 29 wheels for reliability and strength.

Our component brand ONOFF supplies the handlebar, grips and stem from its S3 range, while the S6 range offers up the Pija seatpost in lengths from 140mm to 210mm depending on frame size.

The SLY R comes in the spectacular Marlin Blue / Racing Silver / Obsidian Grey colourway.

Technical Specifications

Frame

6061 Alloy Stealth Evo, hydroformed tubing, Updated Zero Suspension System, 150mm travel, Forward Geometry, internal battery, Boost 12x148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 15mm axles, exclusive plastic motor covers.

Sizes

S: 380mm / M: 410mm / ML: 435mm / L: 460mm / XL: 490mm
Rear shock

Rockshox Deluxe Select+, 185x55mm, Trunnion top mount, 30x8mm bottom bushings

Shock settings

L compression, digressive rebound, 4 tokens
Fork

Rockshox Psylo Gold RC, 160mm, 3 Position, Debon Air, tapered steerer tube, Boost 15x110mm axle, 35mm steel stanchions, 44mm offset. Settings: compression adjustment at low-speed to lock, rebound, air preload

Headset

Acros custom IS52/ZS56, 1-1/8", 1.5" head tube, Internal cable routing, sealing plugs without blocklock
Stem

Onoff S3 30mm 0º, 6061 forged alloy, 31.8mm barbore

Handlebar

Onoff S3 1.0 6061 alloy, rise: 25mm, width: 800mm, 8º backsweep, 5º upsweep, 31.8mm barbore. L and XL size: 1.5 rise.
Grips

Onoff Forest, CNC lock-on, 135mm

Seatpost

Onoff Pija dropper internal, diameter 31.6mm, 1X Remote lever with bearing, S size: 140-115mm (388-235mm), M size: 160-135mm (428-255mm), ML size: 180-155mm (468-275mm), L size: 210-185mm (528-305mm), XL size: 210-185mm (528-305mm)
Saddle

Fizik Terra Aidon X5 145mm

Front brake

Sram DB8 stealth, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads
Rear brake

Sram DB8 stealth, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads

Brake lever

Sram DB8, SwingLink and lever pivot bearings, tools-free reach and contact point adjust
Rims

Mavic E-CrossRide 29, 30mm internal width, welded, PFP, tubeless ready, 28 spokes

Spokes

Mavic J-bend double butted, contactless lacing
Front hub

Mavic, Boost 15x110mm, IS 6 bolts

Rear hub

Mavic, Boost 12x148mm, ID360 Ratched system, IS 6 bolts, HG freehub
Front tire

Maxxis Minion DHF 29x2.5 WT, tubeless ready, 3C MAXX GRIP compound, EXO+ protection, 60TPI, folding bead

Rear tire

Maxxis Minion DHR II 29x2.5 WT, tubeless ready, 3C MAXX TERRA compound, EXO+ protection, 60TPI, folding bead
Crankset

e*Thirteen Helix Core E*Spec Plus, All sizes: 160mm

Rings

Sram X-Sync 2 Eagle 34T, steel, narrow-wide, 104 BCD
Chain

Sram GX Eagle T-Type, 12s, Powerlock

Rear derrailleur

Sram S1000 Eagle AXS T-Type, 12s
Shift levers

Sram Eagle AXS Pod MMX, 12s

Casette

Sram XS-1270, 10-52T, T-Type, 12s
Weight

20,9 kg

Display

Purion 400 / Bosch Mini Remote / Bosch System Controller

Motor

Bosch Performance Line SX (25Km/h) GEN4 SMART SYSTEM Diagonal, Wide

Battery

Bosch Compact Powertube 400Wh

Geometry

Frame size		S	M	M/L	L
A	Seattube length	380 mm	410 mm	435 mm	460 mm	490 mm
B	Toptube length	595 mm	615 mm	635 mm	660 mm	685 mm
C	Bottom bracket drop	-22 mm	-22 mm	-22 mm	-22 mm	-22 mm
D	Bottom bracket height	350 mm	350 mm	350 mm	350 mm	350 mm
E	Chainstay length	455 mm	455 mm	455 mm	455 mm	455 mm
F	Seat tube angle	74º	74º	74º	74º	74º
G	Effective seattube angle	77º	77º	77º	77º	77º
H	Headtube angle	64,5º	64,5º	64.5º	64,5º	64,5º
I	Fork Offset	44 mm	44 mm	44 mm	44 mm	44 mm
J	Wheelbase	1225 mm	1250 mm	1265 mm	1290 mm	1315 mm
K	Headtube length	120 mm	120 mm	130 mm	140 mm	150 mm
L	Reach	440 mm	460 mm	480 mm	500 mm	520 mm
M	Stack	633 mm	633 mm	642 mm	651 mm	660 m

Mondraker

2025 Mondraker Summum R Mullet DH Bike

£4,899.00

Tax included. Shipping calculated at checkout.

SUMMUM

DH is our passion. DH and racing are in our DNA.

Our DNA comes from DH racing, there’s no denying it and we’re proud of it. DH is the Formula 1 of mountain biking. It’s where prototypes are put through the wringer, hammered by the tracks and the riders. That’s why at Mondraker we have a top-level international team: the Mondraker Factiry Racing, which includes world-class riders such as Dakotah Norton and Ronan Dunne. Our DH bikes will continue to be available as carbon or aluminium framed versions, depending on rider preference.

Components

Technical specs

Frame

Summum MX 6061 Alloy Stealth Evo, Mullet, hydroformed tubing, Zero suspension system, 200mm travel, Forward Geometry, alloy upper link with shock eyelet bearings, SuperBoost 12x157mm rear axle, 83mm BSA bottom bracket, MAX. capacity dual row Enduro bearings, HHG internal cable routing, ISCG 05. *Optional Geometry kit

Sizes

S / M / L / XL MX
Rear shock

Fox DHX2 Performance Elite, 225x70mm. Settings: low-speed compression, low-speed rebound, spring preload. Trunnion top mount, 30x8mm bottom bushings

Shock settings

CP104 compression, M rebound, Rezi BP101. Spring rate: S size 400 lbs, M size 450 lbs, L size 500 lbs, XL size 500 lbs
Fork

Fox 40 29 Float GRIP Performance, 203mm, air spring, 1-1/8” steerer tube, 20x110mm axle, offset 52mm. Settings: 3-pos compression dial, air preload

Headset

Onoff ZS56/ZS56, 1-1/8", 1-1/8" steerer tube, 42x30x7x45ºx45º ACB sealed bearings, geometry kit cups, external diameter 62mm
Stem

Onoff S9 DH CNC Integrated, 45-50mm adjustable length, 10mm rise, 31.8mm barbore, 7075 alloy, 2x6mm spacer

Handlebar

Onoff S3 1.0 6061 alloy, rise: 25mm, width: 800mm, 8º backsweep, 5º upsweep, 31.8mm barbore. L and XL size: 1.5 rise.
Grips

Onoff Beehive, 1lock-on, 135mm

Seatpost

Onoff S3 DH Alloy, diameter 31.6mm, length 300mm
Saddle

Ergon SM10 DH Black

Front brake

Sram DB8, oversized 4-piston caliper, Centerline 220mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads
Rear brake

Sram DB8, oversized 4-piston caliper, Centerline 203mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads

Brake lever

Sram DB8, tool reach adjust, lever pivot bushings
Rims

Mavic Deemax BikePark 29, 30mm internal width, 32 holes

Spokes

Mavic 32 steel flat spokes
Front hub

Mavic Boost 20x110mm, IS 6 bolts

Rear hub

Mavic 12x157mm, ID360 freewheel, sealed bearings, IS 6 bolts, HG freehub
Front tire

Maxxis Assegai 29x2.5WT, tubeless ready, 3C MAXX GRIP compound, DH casing, 60x2TPI, folding bead

Rear tire

Maxxis Dissector 27''5x2.4 WT, tubeless ready, 3C MAXX GRIP compound, DH casing, 60x2TPI, folding bead
Crankset

Sram Truvativ Descendant DH, DUB axle, Direct mount chain ring, 165mm CL 56´5

Rings

34T, steel, X-SYNC
Bottom bracket

Sram DUB BSA, sealed bearings, 83mm

Chain

Sram PC1110 11s, Powerlock
Front derrailleur

e*Thirteen Vario Compact Upper Slider ,Alloy backplate ,DMB (Direct mount Bashguard) Lower Slider 34-36t, ISCG 05 adjustable upper slider

Rear derrailleur

Sram GX DH, 7s, medium cage
Shift levers

Sram trigger GX DH 7s, X-actuation 1:1

Casette

Sram PG 720 11-25T, 7s

Derailleur hanger

Mondraker M068

Others

*Optional geometry kit: +-1º / +-2º headset cups

Geometry

Frame size		S	M	L
A	Seattube length	400 mm	400 mm	400 mm	400 mm
B	Toptube length	576 mm	596 mm	621 mm	646 mm
C	Bottom bracket drop	-5 mm	-5 mm	-5 mm	-15 mm
D	Bottom bracket height	350 mm	350 mm	350 mm	350 mm
E	Chainstay length	450 mm	450 mm	450 mm	450 mm
F	Seat tube angle	69°	69°	69°	69°
G	Effective seattube angle	77°	77°	77°	77°
H	Headtube angle	63.5°	63,5º	63,5º	63,5º
I	Fork Offset	58 mm	58 mm	58 mm	58 mm
J	Wheelbase	1256 mm	1270 mm	1301 mm	1326 mm
K	Headtube length	112 mm	112 mm	112 mm	112 mm
L	Reach	430 mm	450 mm	475 mm	500 mm
M	Stack	632 mm	632 mm	632 mm	632 mm

Mondraker

2025 Mondraker Summum RR Mullet

£6,499.00

Tax included. Shipping calculated at checkout.

Our DNA comes from DH racing, there’s no denying it and we’re proud of it. DH is the Formula 1 of mountain biking. It’s where prototypes are put through the wringer, hammered by the tracks and the riders. That’s why at Mondraker we have a top-level international team: the Mondraker Factory Racing, which includes world-class riders such as Dakotah Norton and Ronan Dunne. Our DH bikes will continue to be available as carbon or aluminium framed versions, depending on rider preference.

Components

Technical specs

Frame

Summum MX 6061 Alloy Stealth Evo, Mullet, hydroformed tubing, Zero suspension system, 200mm travel, Forward Geometry, alloy upper link with shock eyelet bearings, SuperBoost 12x157mm rear axle, 83mm BSA bottom bracket, MAX. capacity dual row Enduro bearings, HHG internal cable routing, ISCG 05. *Optional Geometry kit

Sizes

S / M / L / XL MX
Rear shock

Fox DHX2 Factory Kashima, 225x70mm. Settings: high and low-speed compression, high and low-speed rebound, spring preload. Super light steel (SLS) spring. Trunnion top mount, 30x8mm bottom bushings

Shock settings

CX004 compression, ECR012 rebound Rezi BX001. Spring rate: S size 400 lbs, M size 450 lbs, L size 500 lbs, XL size 500 lbs
Fork

Fox 40 29 Float FIT GRIP X2 EVOL Factory Kashima, 203mm, air spring, 1-1/8” steerer tube, 20x110mm axle, offset 52mm. Settings: high and low-speed compression, high and low-speed rebound, air preload

Headset

Onoff ZS56/ZS56, 1-1/8", 1-1/8" steerer tube, 42x30x7x45ºx45º ACB sealed bearings, geometry kit cups, external diameter 62mm
Stem

Onoff S9 DH CNC Integrated, 45-50mm adjustable length, 10mm rise, 31.8mm barbore, 7075 alloy, 2x6mm spacer

Handlebar

Onoff S6 1.0 7050 alloy, rise: 25mm, width: 800mm, 8º backsweep, 5º upsweep, 31.8mm barbore. L and XL size: 1.5 rise.
Grips

Ergon GDH Team black

Seatpost

Onoff S3 DH Alloy, diameter 31.6mm, length 300mm
Saddle

Ergon SM10 DH Black

Front brake

Shimano Saint M820, 4-piston caliper, RT86 203mm 2-piece IS 6 bolts rotor with ICE technology, resin pads with cooler
Rear brake

Shimano Saint M820, 4-piston caliper, RT86 203mm 2-piece IS 6 bolts rotor with ICE technology, resin pads with cooler

Brake lever

Shimano Saint, ergonomic antiskid lever with servo wave, free stroke and tool less reach adjust
Rims

e*thirteen Grappler Race DH, IW29 29" Hookless, 6069 Welded Aluminum, 30mm internal width, tubeless ready, 32 spokes

Spokes

e*thirteen custom Hive triple-butted black steel, alloy nipples, nipple washers
Front hub

e*thirteen Boost 20x110mm, triple-sealed, fully machined aluminum, IS 6 bolts

Rear hub

e*thirteen Superboost 12x157mm, triple-sealed, fully machined aluminum w/6-degree engagement, IS 6 bolts, HG freehub
Front tire

Maxxis Assegai 29x2.5WT, tubeless ready, 3C MAXX GRIP compound, DH casing, 60x2TPI, folding bead

Rear tire

Maxxis Dissector 27''5x2.4 WT, tubeless ready, 3C MAXX GRIP compound, DH casing, 60x2TPI, folding bead
Crankset

Shimano Saint M825 Hollowtech II, reinforced steel axle, 165mm

Rings

36T, aluminum, BCD 104
Bottom bracket

Shimano 83mm

Chain

Shimano HG95, 10s
Front derrailleur

e*Thirteen Vario Compact Upper Slider ,Alloy backplate ,DMB (Direct mount Bashguard) Lower Slider 34-36t, ISCG 05 adjustable upper slider

Rear derrailleur

Shimano Saint RD-M820-SS, 10s, Shadow+, short cage
Shift levers

Shimano Saint SL-M820 10s, low friction multi bearing, instant release, multi release, 2-way release

Casette

Shimano CS-HG500-10, 11-25T, 10s

Derailleur hanger

Mondraker M068

Others

*Geometry kit included: +-1º / +-2º headset cups

Frame size		S	M	L
A	Seattube length	400 mm	400 mm	400 mm	400 mm
B	Toptube length	576 mm	596 mm	621 mm	646 mm
C	Bottom bracket drop	-5 mm	-5 mm	-5 mm	-15 mm
D	Bottom bracket height	350 mm	350 mm	350 mm	350 mm
E	Chainstay length	450 mm	450 mm	450 mm	450 mm
F	Seat tube angle	69°	69°	69°	69°
G	Effective seattube angle	77°	77°	77°	77°
H	Headtube angle	63.5°	63,5º	63,5º	63,5º
I	Fork Offset	58 mm	58 mm	58 mm	58 mm
J	Wheelbase	1256 mm	1270 mm	1301 mm	1326 mm
K	Headtube length	112 mm	112 mm	112 mm	112 mm
L	Reach	430 mm	450 mm	475 mm	500 mm
M	Stack	632 mm	632 mm	632 mm	632 mm

Mondraker

2025 Mondraker Trick 24

£1,349.00 £1,199.00 Save £150.00

Tax included. Shipping calculated at checkout.

START YOUR MONDRAKER JOURNEY WITH TRICK

You never forget the first time you rode a bike, just like you’ll never forget that first time you rode a Mondraker. That feeling you got from those first pedal strokes is indelible. The new Trick range, available in 16”, 20”, 24” and 26” sizes, will start a relationship with Mondraker that we’re sure will last you a lifetime.

ADULT TECH TO MAKE YOU FEEL LIKE A KID

The new Trick rewrites everything compared to the old Leader, as this year brings a fresh new frame design with a design language clearly influenced by our high-end adult bikes. Minimalistic frame tubes, straighter lines, and details such as the top tube flowing into the seat stays in an almost straight line, and nothing says ‘Mondraker’ more than the ‘window’ between the top tube, the down tube and the headtube now featured on the Trick too.

Components

Technical specs

Frame

Trick 24 6061 Alloy Stealth Evo, HHG internal cable routing, internal headset, replaceable hanger, BSA bottom bracket, 12x142mm rear axle

Sizes

One size 310mm
Fork

X-Fusion Velvet RL 26, 100mm, air spring, tapered steerer tube, 15x100mm axle, 32mm aluminum stanchions, 41mm offset. Settings: lockout, rebound, air preload

Headset

FPD Dozer tapered internal 1048AS, 1-1/8" 1-1/2 15mm top cover + TJ3 top cap
Stem

MDK XC, 6061 forged alloy, 25.4mm barbore, rise: 0º, length: 40mm

Handlebar

MDK XC 1.0, 6061 alloy, rise: 25mm, width: 650mm, 9º backsweep, 5º upsweep, 31.8mm barbore
Grips

Onoff Twin, 1lock-on

Seatpost

MDK XC, 6061 T6 alloy, diameter 31.6mm, length 300mm, offset 0mm
Saddle

SDG Fly JR

Front brake

Sram Level, 2 piece caliper, Centerline 160mm IS 6 bolts one-piece rotor, steel-backed organic pad
Rear brake

Sram Level, 2 piece caliper, Centerline 160mm IS 6 bolts one-piece rotor, steel-backed organic pad

Brake lever

Sram Level, tooled reach adjust, lever pivot bushings
Rims

MDK-XP1 24 TLR, 25mm internal width, tubeless ready, 32 spokes

Spokes

CN round stainless steel
Front hub

DA210FS02, 15x100mm, sealed bearings, IS 6 bolts

Rear hub

DA210RSRA01 12x142mm, sealed bearings, IS 6 bolts, HG freehub
Front tire

Kenda Booster 24x2.4 single compound 30TPI, wire bead

Rear tire

Kenda Booster 24x2.4 single compound 30TPI, wire bead
Crankset

Samox DM 30T steel, 127mm

Rings

30T, steel
Bottom bracket

BSA, 73mm

Pedals

SDG Slater JR
Chain

Sram PC-1031, 10s, Powerlock

Rear derrailleur

MICROSHIFT ADVENT X-RDM6205GM 1X10
Shift levers

MICROSHIFT ADVENT SL-M9505-R 10s

Casette

MICROSHIFT CS-G104 11-48 BLACK

Derailleur hanger

UDH

Weight

11,7 kg

Geometry


	Frame size	Trick 24
A	Seattube length	310mm
B	Toptube length	510mm
C	Bottom bracket drop	-30mm
D	Bottom bracket height	285mm
E	Chainstay length	385mm
F	Seat tube angle	73º
G	Effective seattube angle	73º
H	Headtube angle	68º
I	Fork Offset	40mm
J	Wheelbase	979mm
K	Headtube length	100mm
L	Reach	341mm
M	Stack	553mm

Ex-Demo 2024 Mondraker Summum R Mullet Alloy Downhill Bike Small

Mondraker

Ex-Demo 2024 Mondraker Summum R Mullet Alloy Downhill Bike Small

£3,499.00 £2,995.00 Save £504.00

Tax included. Shipping calculated at checkout.

Ex-Demo 2024 Mondraker Summum R Alloy DH bike - Size Small - Custom Wrapped

Frame	Summum Mullet 6061 Alloy Stealth Evo, hydroformed tubing, Zero suspension system, 200mm travel, Forward Geometry, alloy upper link with shock eyelet bearings, SuperBoost 12x157mm rear axle, MAX. capacity dual row Enduro bearings
Fork	Fox 40 29 Float FIT GRIP EVOL Performance, 203mm, air spring, 1-1/8” steerer tube, 20x110mm axle, offset 56mm. Settings: low-speed compression, low-speed rebound, air preload
Rear Shock	Fox DHX2 Performance Elite, 225x70mm. Settings: low-speed compression, low-speed rebound, spring preload. Trunnion top mount, 30x8mm bottom bushings
Headset	ONOFF Mercurium 1.5 ZS for 1-1/8” steerer tube, 41x30.15x7x45ºx45º ACB sealed bearings, geometry kit cups, external diameter 56mm
Stem	ONOFF Krypton DH CNC Integrated FG, 25-30mm adjustable length, 31.8mm barbore, 6061 alloy, 2x6mm spacer
Bars	ONOFF Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore
Front Brake	Sram Code R, oversized 4-piston caliper, Centerline 220mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads
Rear Brake	Sram Code R, oversized 4-piston caliper, Centerline 203mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads
Brake Lever	SRAM Code R, tool-free reach adjust
Front Mech	E.13 Vario Compact Upper Slider ,Alloy backplate ,DMB (Direct mount Bashguard) Lower Slider 34-36t, ISCG 05 adjustable upper slider
Rear Mech	SRAM GX DH, 7s, medium cage, X-actuation 1:1
Shifters	SRAM trigger GX DH 7s, X-actuation 1:1
Speed	7
Rims	e*thirteen LG1 Plus DH, IW29 29"/27.5" Hookless, 6069 Welded Aluminum, 30mm internal width, tubeless ready, 32 spokes
Front Hub	e*thirteen Boost 20x110mm, triple-sealed, fully machined aluminum, IS 6 bolts
Rear Hub	e*thirteen Superboost 12x157mm, triple-sealed, fully machined aluminum w/6-degree engagement, IS 6 bolts
Spokes	e*thirteen custom Hive triple-butted black steel, alloy nipples, nipple washers
Front Tyre	Michelin DH34 29x2.4, tubeless ready, Magi-X DH compound, double-reinforced DH shield casing, wire bead
Rear Tyre	Michelin DH34 27.5x2.4, tubeless ready, Magi-X DH compound, double-reinforced DH shield casing, wire bead
Seat Post	SDG Micro I-Beam SP-751 Alloy, diameter 31.6mm, length 300mm, micro-adjustment
Saddle	SDG I-Fly 2.0 I-Beam, high-density PU foam, Cordura sides
Chainset	Truvativ Descendant DH, DUB axle, Direct mount chain ring, 165mm. 34T, steel, X-SYNC
Bottom Bracket	SRAM DUB BSA, sealed bearings, 83mm
Chain	SRAM PC1110 11s, Powerlock
Cassette	SRAM PG 720 11-25T, 7s
Pedals	None

Mondraker

Mondraker Arid Carbon Gravel Bike

£3,199.00

Tax included. Shipping calculated at checkout.

ARID CARBON: ARID + SHIMANO

Arid Carbon is the base model and is the only build to come with a Shimano drivetrain and brakes. The Shimano gravel-specific GRX RX-610 groupset with a 40-tooth chainring and 12-speed 10-45 cassette keeps shifting smooth and sharp, and Mavic Allroad Disc 25mm wheels come fitted with Maxxis 45mm Reaver EXO 120TPI tyres to offer grip and low rolling resistance at the same time. Available in the stunning Earth Red / Black / Flame Red paint scheme.

Components

Technical specs

Frame

Arid Stealth Air Carbon, in-tube storage, T47 bottom bracket, tapered head tube, HHG internal cable routing, 12x142mm rear axle, 1X drivetrain design, Flatmount brake compatible.

Sizes

S: 410mm / M: 450mm / ML: 480mm / L: 510mm / XL: 540mm
Fork

Steatlh Air Carbon tapered steerer tube, HHG, fllat mount integrated fork

Headset

Onoff IS52/IS52, 1-1/8", 1.5" head tube, sealed bearings, Internal cable routing.
Stem

Onoff Semi-Integrated, 31.8mm barbore, rise: -7°, length: S size: 60mm, M size: 70mm, ML size 70mm, L size: 80mm, XL size: 90mm

Handlebar

OnOff S3 GR 16º bar flare. Width sizes S size: 440mm M size: 440mm ML size: 460mm L size: 460mm XL size: 460mm
Grips

OnOff HEX Bartape

Seatpost

Onoff S9 Carbon 0-R, diameter 27.2mm, length 400mm
Saddle

FIZIK Terra Argo X5 140mm

Front brake

Shimano GRX RX-610, RX-400 caliper, CL-800 ice tech 160mm centerlock rotor, resin pad
Rear brake

Shimano GRX RX-610, RX-400 caliper, CL-800 ice tech 160mm centerlock rotor, resin pad

Brake lever

Shimano GRX RX-610, contact point adjustment, tooled reach adjust, aluminium lever.
Rims

Mavic Allroad Disc, UST, 25mm internal width, hookless, infinity hubs, 24 spokes front, 28 spokers rear

Spokes

Mavic Steel double butted flat spokes
Front hub

Mavic, 12x100mm, IS 6 bolts

Rear hub

Mavic infinity hub, 12x142mm, XD ID360 Ratchet system, IS 6 bolts, MS Freehub
Front tire

Maxxis Reaver 700x45, tubeless ready, dual compound EXO protection, 120 TPI, folding bead

Rear tire

Maxxis Reaver 700x45, tubeless ready, dual compound EXO protection, 120 TPI, folding bead
Crankset

Shimano GRX RX-610, S size: 170mm M size: 170mm ML size: 172,5mm L size: 172,5mm XL size: 175mm, CL 49,7

Rings

Shimano 40T, direct mount, steel
Bottom bracket

Token T47 BSA sealed bearings, 85,5mm

Chain

Shimano SLX M7100, Quick link
Rear derrailleur

Shimano GRX RX-822-GS, 12s

Shift levers

Shimano GRX RX-610 dual control, alloy lever
Casette

Shimano SLX M7100, hiperglide+,10-45, 12s

Derailleur hanger

Sram UDH

Others

Carry-On Bags System

Weight

9,7 kg

MONDRAKER CARRY-ON

ARID lets you take your hand luggage without paying extra for it. The downtube is designed as a compartment to store up to 3 custom-made bags in 3 different sizes. Only you get to decide what to take with you as there are no cabin restrictions nor security checkpoints in sight. Clothing, food, tools, or your passport if you’re going to be crossing borders on your ARID. The frame design is so spectacular that we didn’t want to spoil it with gubbins; nothing more than mud or dust should be hitching a lift on this ride.

Geometry

Frame size		S	M	M/L	L
A	Seattube length	410 mm	450 mm	480 mm	510 mm	540 mm
B	Toptube length	520 mm	550 mm	580 mm	600 mm	630 mm
C	Bottom bracket drop	-75	-75	-75	-75	-75
D	Bottom bracket height	269 mm	269 mm	269 mm	269 mm	269 mm
E	Chainstay length	425 mm	425 mm	425 mm	425 mm	425 mm
F	Seat tube angle	73°	73°	73°	73°	73°
G	Effective seattube angle	74°	74°	74°	74°	74°
H	Headtube angle	70°	70°	70°	70°	70°
I	Fork Offset	45 mm	45 mm	45 mm	45 mm	45 mm
J	Wheelbase	1003 mm	1035 mm	1067 mm	1089 mm	1121 mm
K	Headtube length	100 mm	125 mm	145 mm	175 mm	200 mm
L	Reach	363 mm	386 mm	411 mm	423 mm	446 mm
M	Stack	548 mm	572 mm	591 mm	619 mm	642 mm
N	Stem Length	60 mm	70 mm	70 mm	80 mm	90 mm
O	Fork Height	420 mm	420 mm	420 mm	420 mm	420 mm

Mondraker

Mondraker Element Jacket

£99.95 £69.95 Save £30.00

Tax included. Shipping calculated at checkout.

Properties: Windproof | Rainproof
Fit: Men's | Perfect fit
Temperature of Use: +5 to +15 ºcMain fabric
100% Nylon 'Ripstop' fabric
DWR (Durable Water Repellent) Water Repellent
Lightweight, breathability and tear resistance.
Waterproof DWR treatment.
Reflective back.

Mondraker

Mondraker Enduro Jersey Forest Green

£74.95

Tax included. Shipping calculated at checkout.

Geometry

The SUMMUM CARBON R inherits all of the features from the CARBON RR

Technical specs

SUMMUM

DH is our passion. DH and racing are in our DNA.

SUMMUM

DH is our passion. DH and racing are in our DNA.

CRAFTY CARBON R: ACCESS THE LATEST IN EVOLUTION

Technical specs

CRAFTY

THE GAME IS OVER!

Technical specs

DUNE R: THE ENTRY LEVEL BUILD

Technical specs

PLEASE EVERYONE, STAND UP AND WELCOME THE NEAT.

A NEW CYCLE

DEFINING OUR LIGHT E-MTB

THE BALANCED GEOMETRY OF NEAT

NEAT = ANY TYPE OF RIDER AND ANY TYPE OF RIDING

NEAT RR

TECHNICAL SPECS

IT’S ABOUT WHO YOU WANT TO BE

R AND RR: TWO BUILDS THAT DEFINE SLY

SUMMUM

DH is our passion. DH and racing are in our DNA.

Technical specs

Technical specs

START YOUR MONDRAKER JOURNEY WITH TRICK

Technical specs

ARID CARBON: ARID + SHIMANO

Technical specs

MONDRAKER CARRY-ON

Free UK Delivery

Easy Returns

Free Bike Setup
