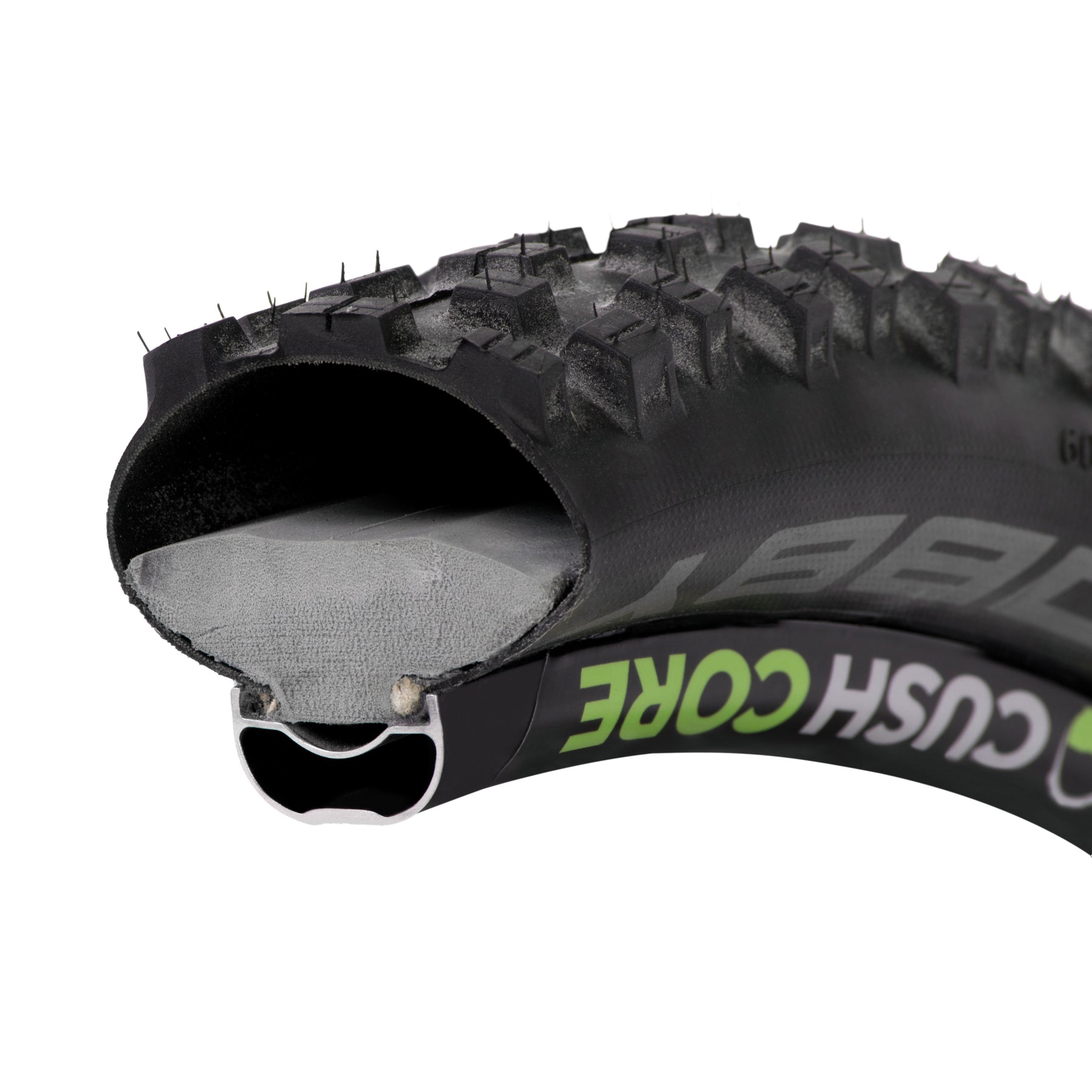

CushCore is an engineered foam insert that mounts inside a mountain bike tyre. It divides the inner volume of the tyre in half, with air underneath the tread and the CushCore insert next to the rim.

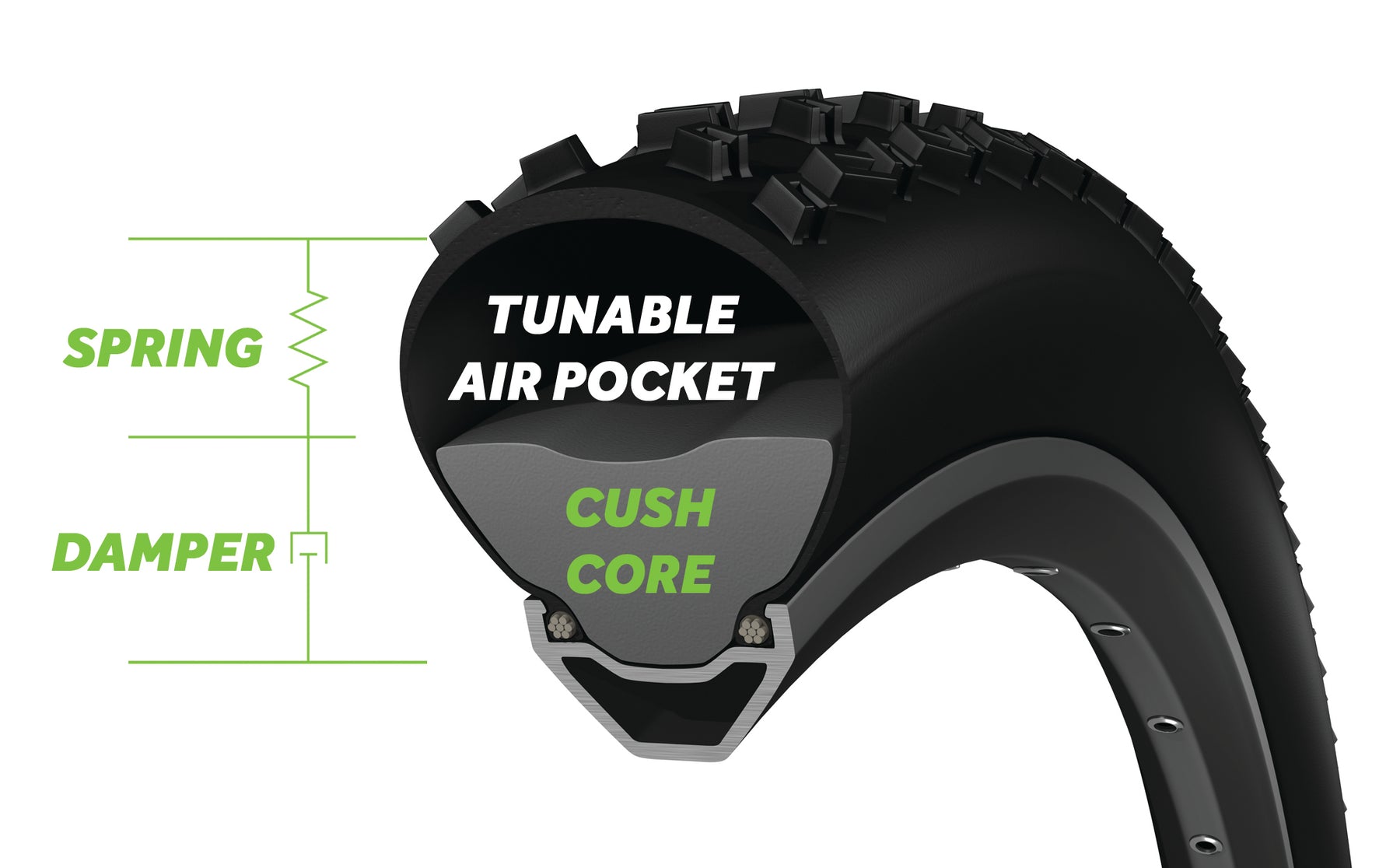

The purpose of Cushcore is to improve the ride quality of your bike. It is not just for flat protection. CushCore absorbs shock, stops deflection off obstacles, reduces vibration, and stabilizes the tyre against roll and squirm. Think of it as suspension for your tyres designed to give you a faster, smoother ride.

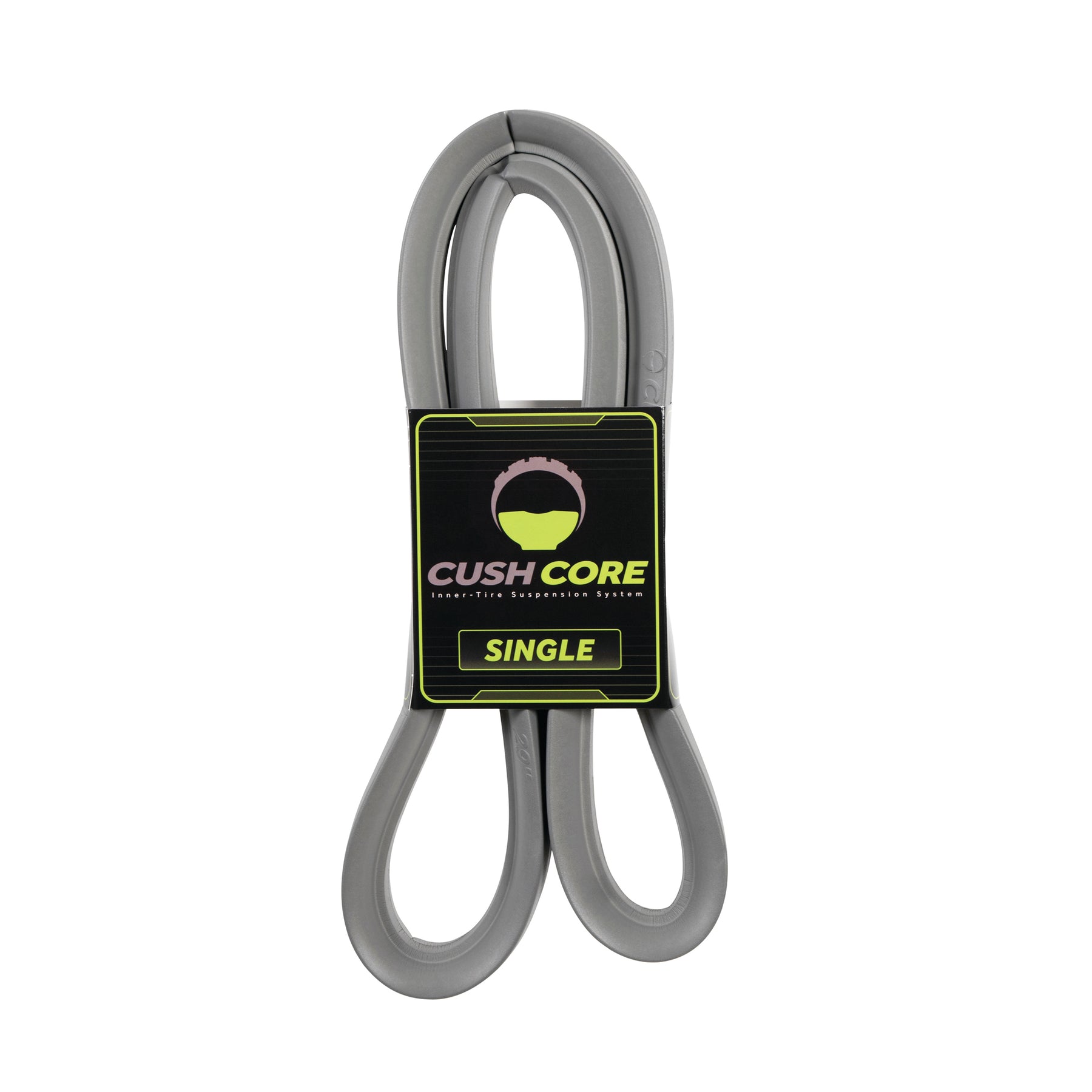

Although single liners are available, CushCore is designed to be used as a set.
This product contains:
1 CushCore Insert
1 CushCore Tubeless Air Valve
CushCore is compatible with your current tubeless tyres and rims
If your wheels are not tubeless ready, rim sealing tape will be required
We recommend the use of tubeless tyre sealant with CushCore
Installation with certain tyre & wheel combinations may require two people - one to work the tyre levers, and another to hold the tyre bead in the drop center of the rim.
Wire bead downhill tyres are most likely to need extra help.
What Cushcore do i need for my bike?
Gravel - An ultra-lightweight insert that reduces fatigue, improves cornering, and helps prevent flats
Fits tyre widths 33mm-46mm
Fits rims with internal width 19mm-26mm
700c - 120g
Pro - The original full-performance version. CushCore PRO allows you to push the limits of your tyres and suspension to new levels. The best choice for the majority of wheels, terrain, and riders.
Fits tyre widths 2.1 - 2.6"
Fits rims with internal width 22 - 35mm
26 - 245g
27.5 - 250g
29 - 260g
XC - Light weight version designed for cross-country racing, light trail riding, and/or less aggressive riders.
Fits tyre widths 1.8 - 2.4"
Fits rims with internal width 22 - 32mm
27.5 - 140g
29 - 150g
Plus - All the performance benefits of the PRO, but optimised for plus sized tyres and wider rims.
Fits tyre widths 2.6 - 3.0"
Fits rims with internal width 32 - 45mm
27.5 - 290g
29 - 330g
CushCore inserts are extremely durable. Our foam is engineered to withstand repeated pounding and flexing without degradation. It does not absorb liquid and is not affected by tyre sealant. Service life will depend on your riding frequency, terrain, etc.
