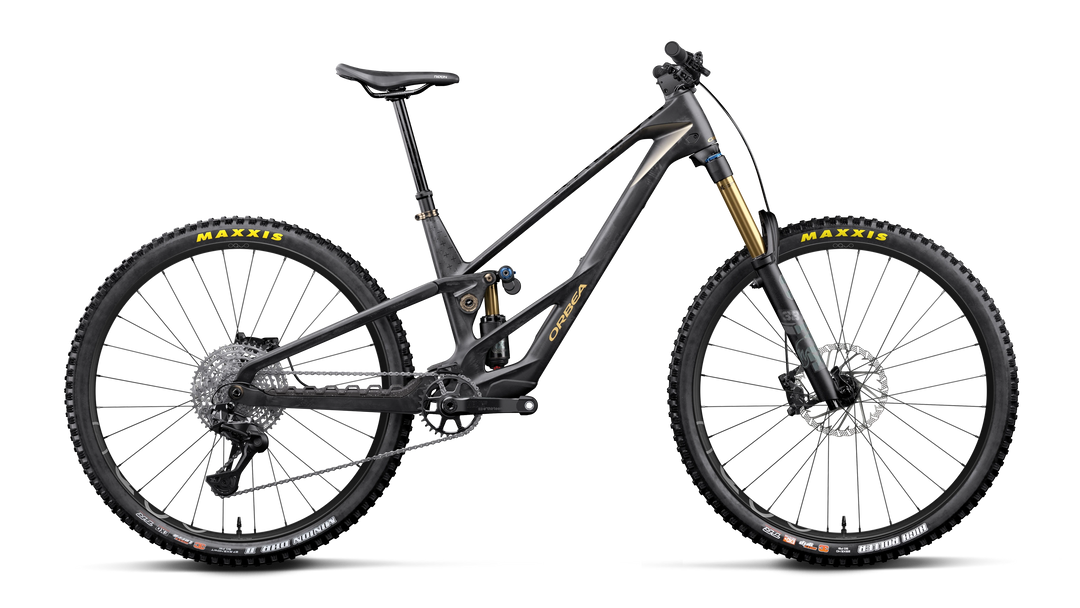

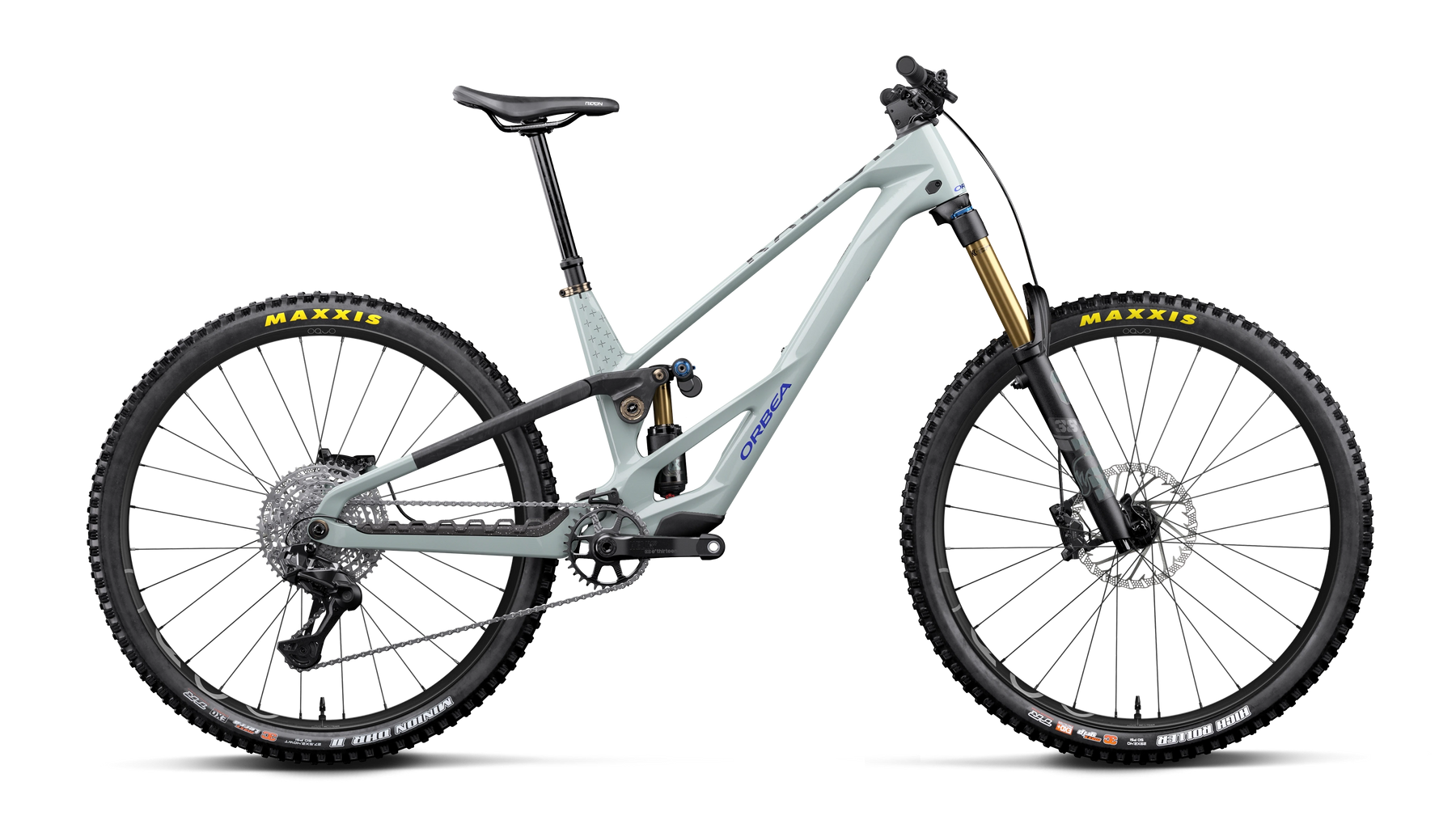

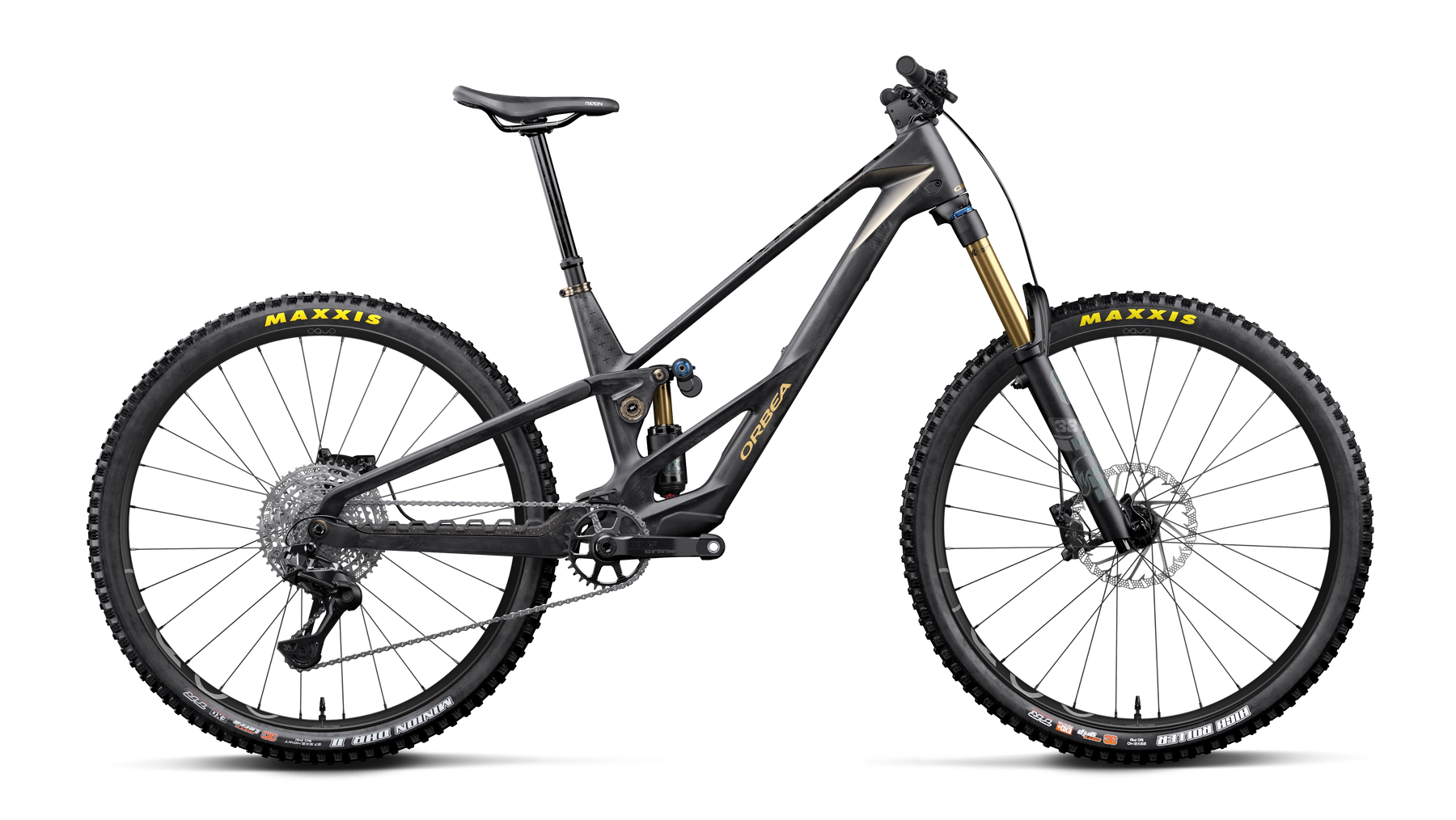

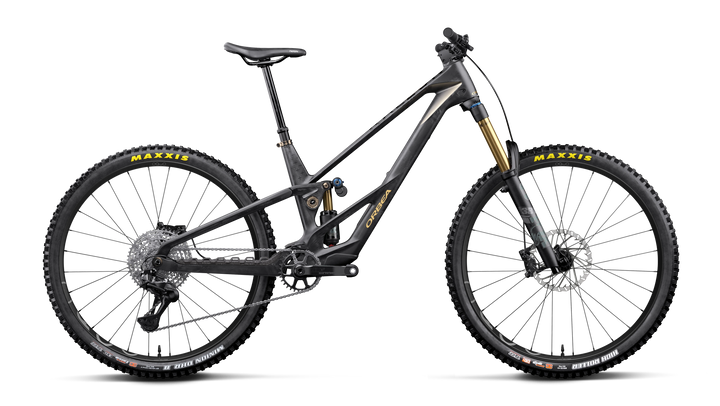

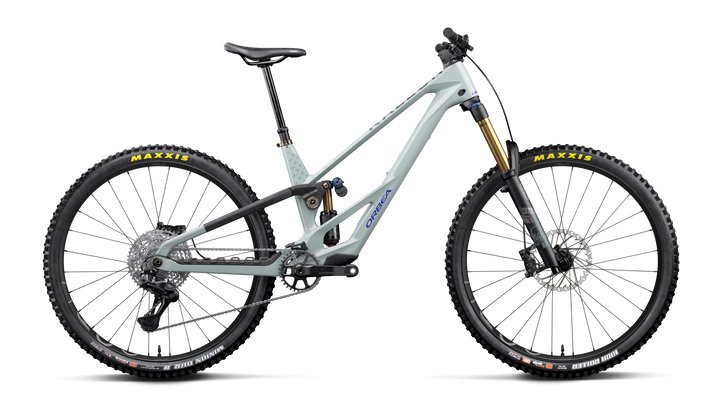

The 2027 Orbea Rallon RS-Team is a full-suspension electric enduro mountain bike (e-MTB) with a TQ-HPR40 motor and TQ 290Wh battery. It uses Orbea's Rallon RS OMR carbon frame, compatible with mullet and 29-inch wheels, and a Fox 38 Float Factory 180mm fork. The RS-Team is lightweight and quiet, with a TQ-HPR40 motor, 290Wh battery, Shimano XT groupset and an electronic dropper.
Key features
- Rallon RS OMR carbon frame, mullet and 29" compatible
- TQ-HPR40 motor with TQ HPR 290Wh battery
- Fox 38 Float Factory 180mm fork and Fox Float X2 shock
- Orbea System Controller with electronic dropper remote
Specification
- Frame: Orbea Rallon RS OMR. Mullet and 29" wheels compatible. Concentric Boost 12x148
- Fork: Fox 38 Float Factory 180, Grip X2, QR15x110, Kashima
- Shock: Fox Float X2 Factory Trunnion 2-Pos Adjust Kashima custom tune 205x62.5mm
- Motor: TQ-HPR40
- Battery: TQ HPR 290Wh
- Charger: TQ Charger 4A
- Remote: Orbea System Controller with eDropper Remote
- Headset: Alloy 1-1/2", Black Oxidated Bearing
- Brakes: Shimano XT 8220 Hydraulic Disc
- Rear derailleur: Shimano XT M8260 SGS
- Shifters: Shimano XT M8250
- Cassette: Shimano CS-M8200 10-51t 12-Speed
- Chain: Shimano M7100
- Chainguide: Orbea eBike chainguide
- Crank: e*thirteen Helix Race alloy 32T
- Wheels: Oquo Mountain Control MC32TEAM
- Tyres: Maxxis High Roller III 2.40" 60 TPI 3CG/EXO+/TR MaxxGrip
- Seatpost: OC Mountain Control MC10, 31.6mm, Electronic Dropper
- Saddle: Fizik Terra Ridon X5 145mm
- Stem: OC Mountain Control MC11 Alu SL, 0º
- Handlebar: OC Mountain Control MC10 Carbon, Rise 20, Width 800
Geometry (mm) – 29" wheels, low flip chip, neutral angleset
| Size | S | M | L | XL |
|---|---|---|---|---|
| Seat Tube | 400 | 405 | 410 | 420 |
| Top Tube (EFF) | 551.48 | 577.37 | 602.11 | 630.85 |
| Head Tube | 105 | 110 | 120 | 130 |
| Chainstay | 445 | 445 | 445 | 445 |
| BB Drop | 31.89 | 31.99 | 32.07 | 32.17 |
| BB Height | 345.61 | 345.51 | 345.43 | 345.33 |
| Wheelbase | 1207.67 | 1234.78 | 1262.01 | 1293.24 |
| Head Angle | 65° | 65° | 65° | 65° |
| Seat Angle | 73.98° | 73.99° | 74° | 74.01° |
| Rake | 44 | 44 | 44 | 44 |
| Standover | 764.01 | 758.49 | 759.73 | 766.47 |
| Reach | 423.08 | 448.16 | 471.19 | 498.23 |
| Stack | 638.34 | 643.02 | 652.19 | 661.37 |
| Fork Length | 587.7 | 587.7 | 587.7 | 587.7 |
Geometry figures supplied by Orbea for the default configuration; other wheel, flip-chip and angleset settings change some figures.
Available in sizes S, M, L and XL.
