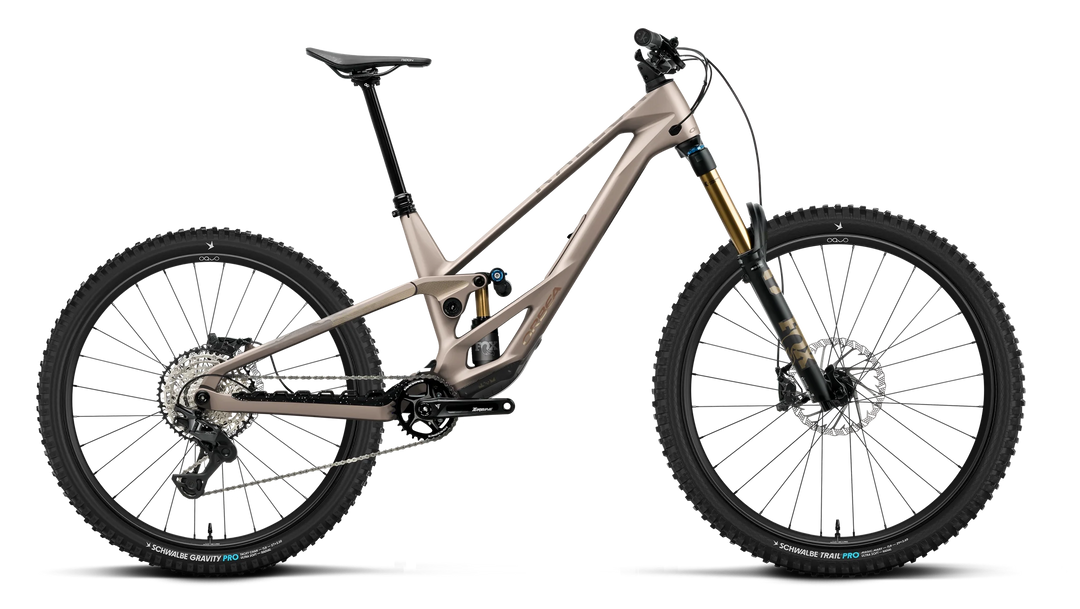

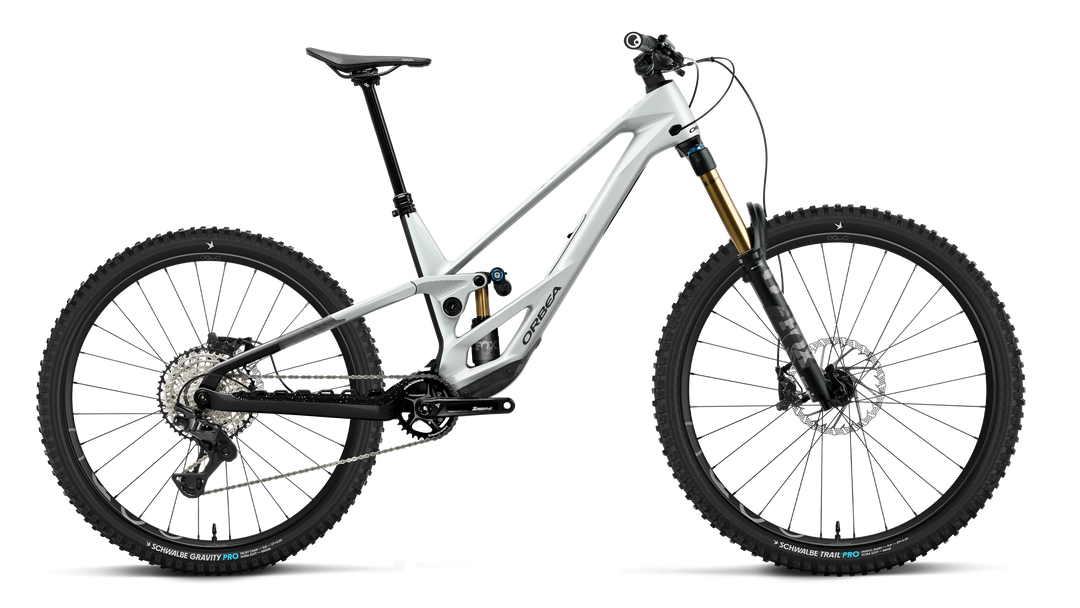

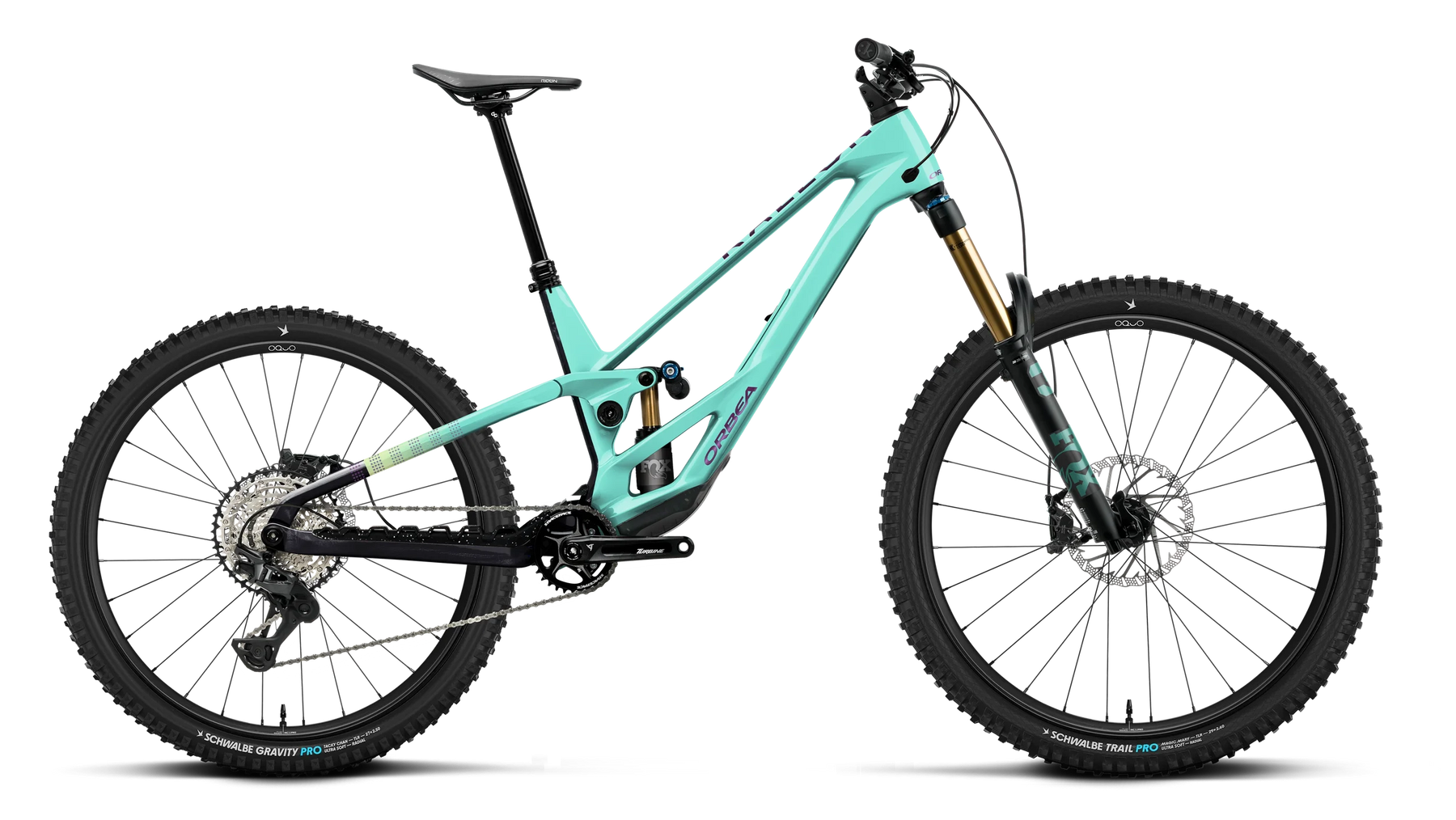

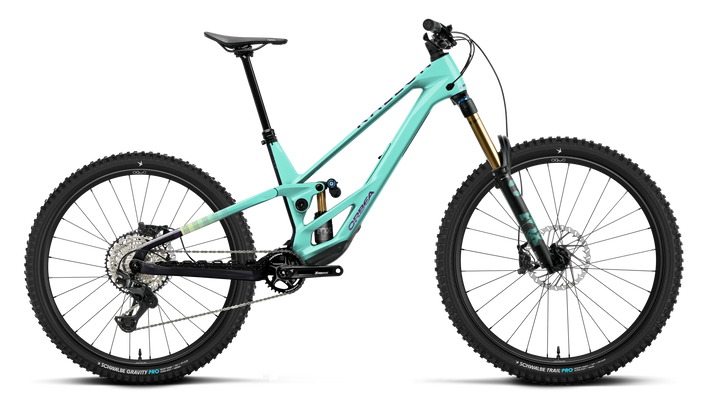

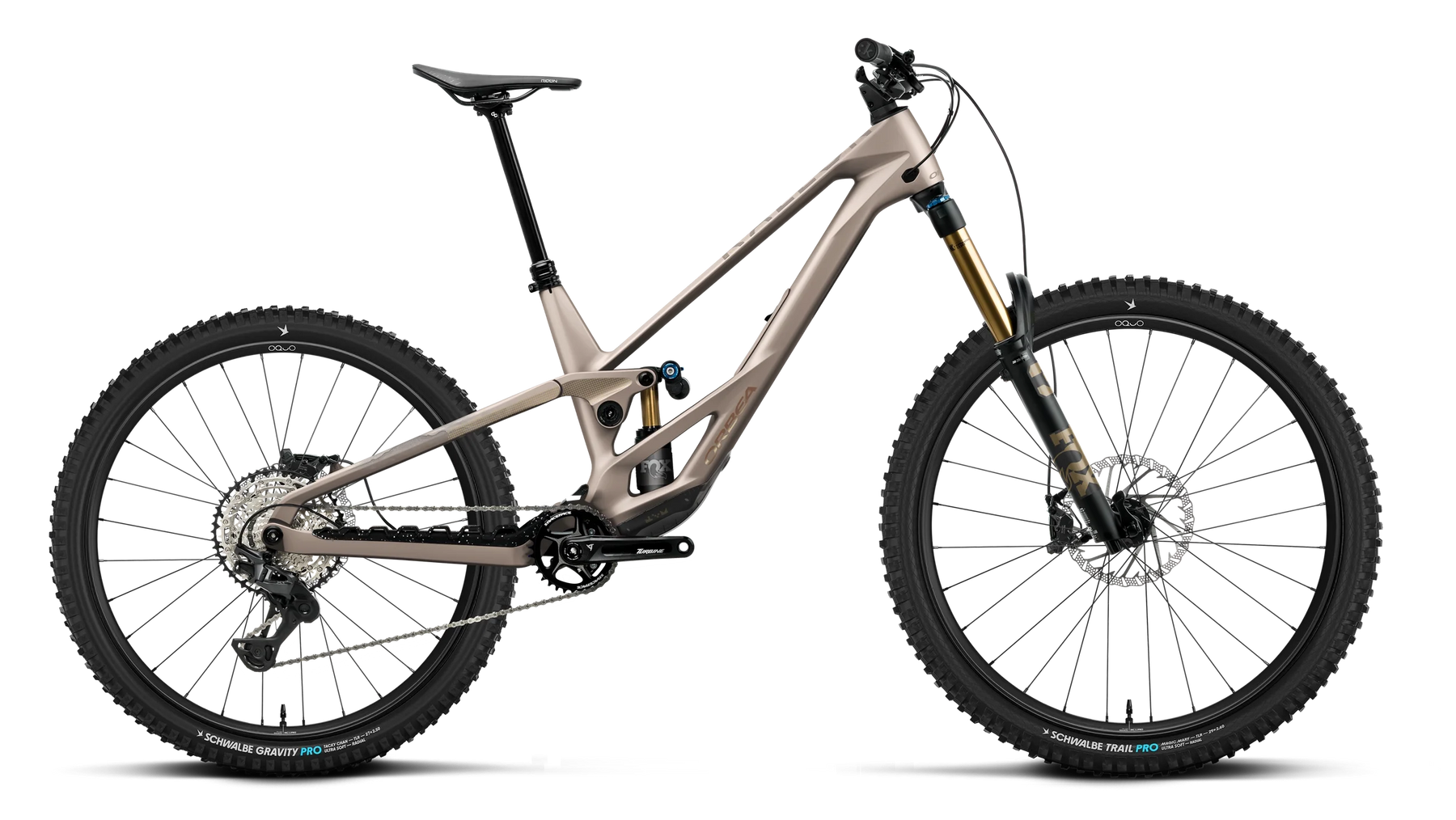

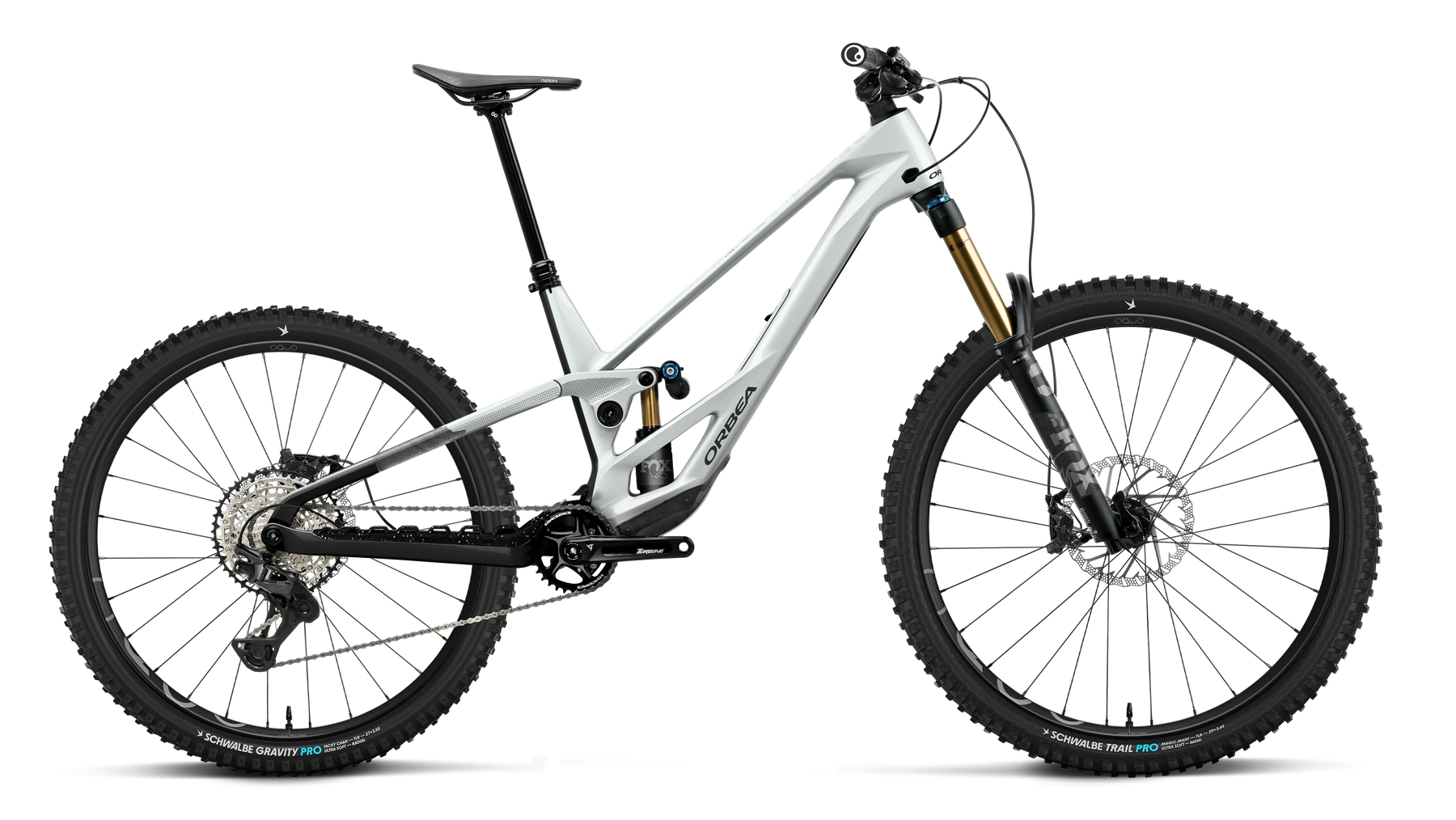

The 2027 Orbea Rallon E-Team is a full-suspension enduro mountain bike with an OMR carbon frame, 442mm chainstay and a 180mm Fox 38 fork, designed around Orbea's Pure Gravity geometry and Attitude Adjust. The E-Team is a well-equipped mid-range build with Shimano XT shifting and brakes, a Fox Float X2 Factory shock, Oquo Team wheels and a carbon handlebar.
Key features
- OMR carbon frame with 442mm chainstay
- 180mm Fox 38 fork and Fox Float X2 Factory shock
- Shimano XT M8200 12-speed drivetrain with Shimano XT 8220 brakes
- Pure Gravity geometry with Attitude Adjust
Specification
- Frame: Orbea Rallon OMR. 442mm chainstay length. Concentric Boost 12x148 rear axle. Pure Gravity geometry. Attitude Adjust. ISCG05
- Fork: Fox 38 Float Factory 180, Grip X2, 15x110, Kashima
- Shock: Fox Float X2 Factory Trunnion 2-Pos Adjust Kashima custom tune 205x62.5mm
- Headset: Alloy 1-1/2", Black Oxidated Bearing
- Brakes: Shimano XT 8220 Hydraulic Disc
- Rear derailleur: Shimano XT M8200 SGS Shadow Plus
- Shifters: Shimano XT M8200 I-Spec EV
- Cassette: Shimano CS-M7200 10-51t 12-Speed
- Chain: Shimano M7100
- Chainguide: e*thirteen CL55 30-36t black
- Crankset: Race Face Turbine 32t
- Wheels: Oquo Mountain Control MC32TEAM
- Tyres: Schwalbe Magic Mary Radial TLR, 29x2.50, Gravity Pro, Ultra Soft
- Seatpost remote: Shimano SL-MT500 I-Spec EV
- Saddle: Fizik Terra Ridon X5 145mm
- Stem: OC Mountain Control MC11 Alu SL, 0º
- Handlebar: OC Mountain Control MC10 Carbon, Rise 35, Width 800
Geometry (mm) – 442mm chainstay
| Size | S | M | L | XL |
|---|---|---|---|---|
| Seat Tube (C-T) | 400 | 405 | 410 | 420 |
| Top Tube (EFF) | 542.6 | 574.5 | 603.1 | 635.3 |
| Head Tube | 100 | 110 | 120 | 130 |
| Chainstay | 442 | 442 | 442 | 442 |
| BB Drop | 28 | 28 | 28 | 28 |
| BB Height | 352.5 | 352.5 | 352.5 | 352.5 |
| Wheelbase | 1209.9 | 1239.3 | 1266.6 | 1298.0 |
| Head Angle | 64.25° | 64.25° | 64.25° | 64.25° |
| Seat Angle | 79.9° | 79.4° | 79.1° | 78.8° |
| Rake | 44 | 44 | 44 | 44 |
| Standover | 763 | 756 | 758 | 763 |
| Reach | 430 | 455 | 478 | 505 |
| Stack | 629.2 | 638.2 | 647.2 | 656.2 |
| Fork Length | 587.7 | 587.7 | 587.7 | 587.7 |
Geometry figures supplied by Orbea.
Available in sizes S, M, L and XL.
