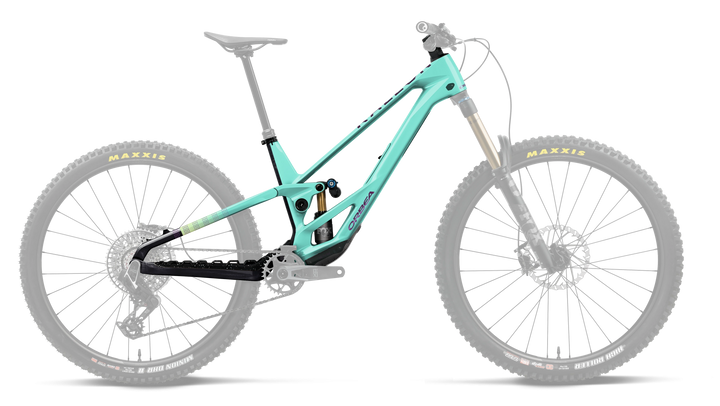

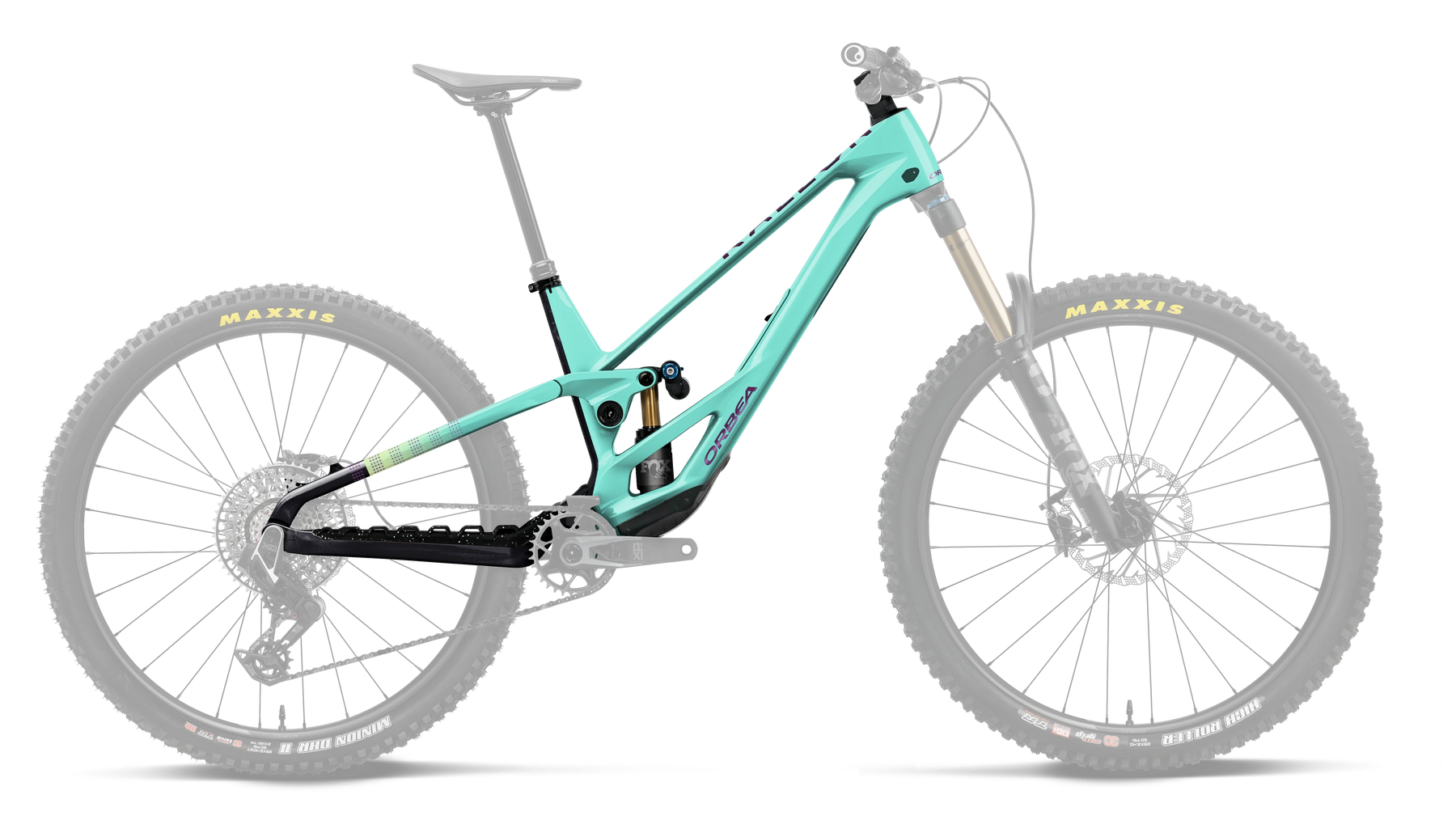

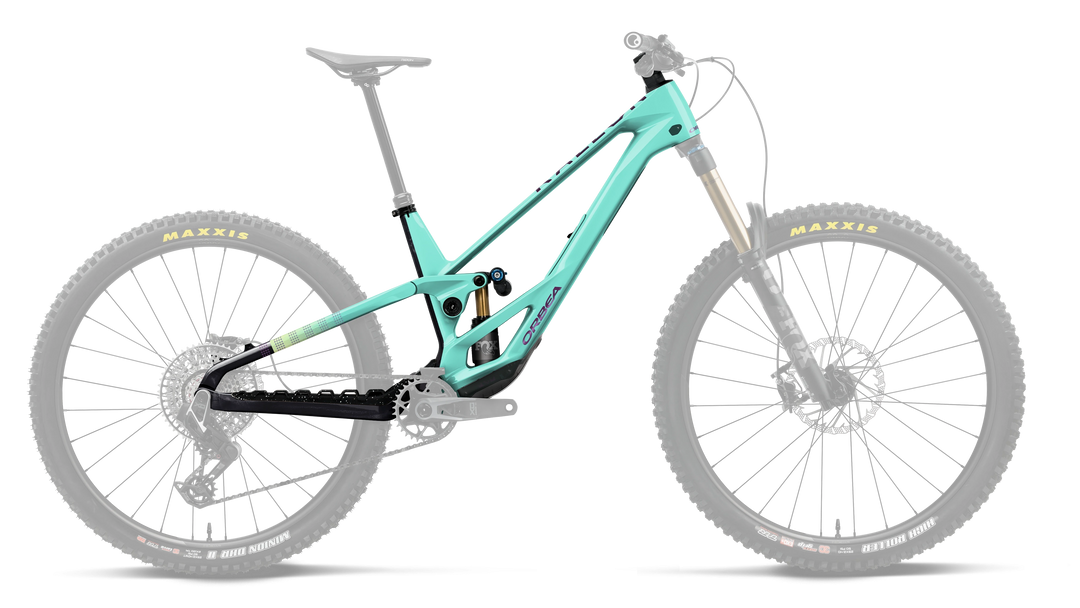

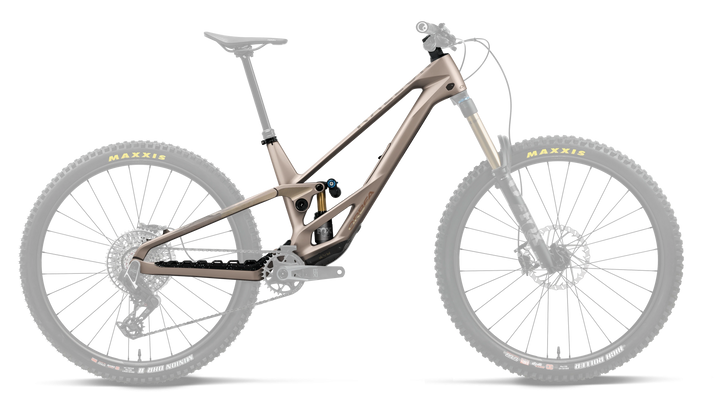

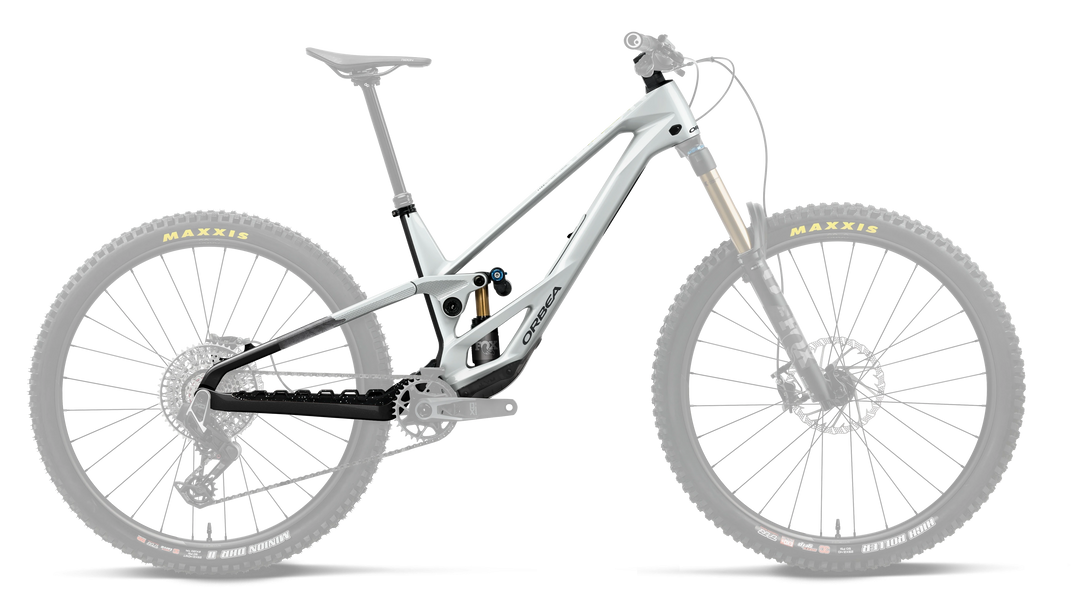

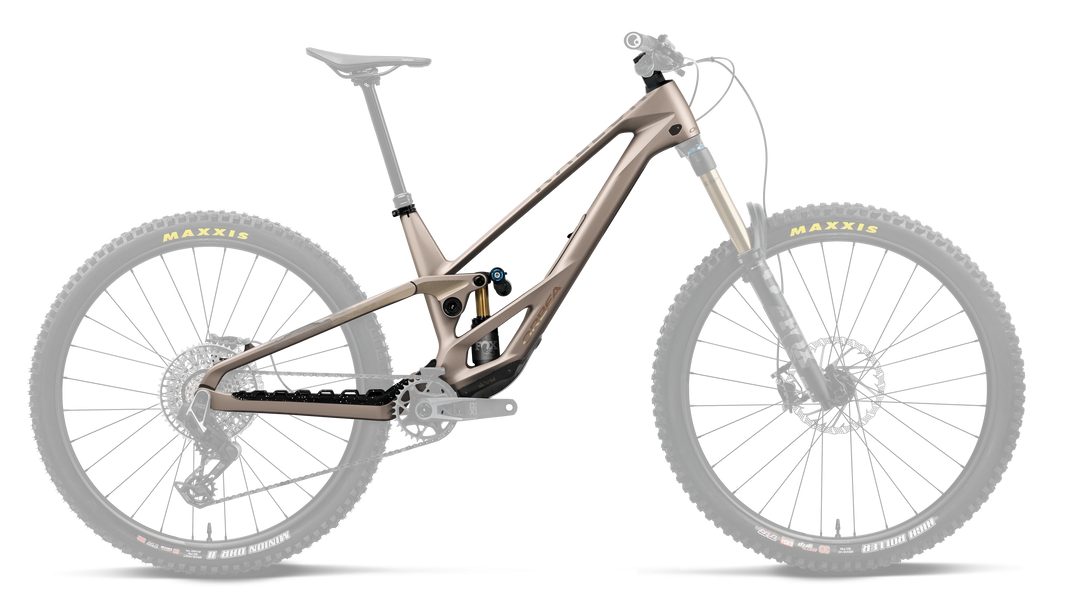

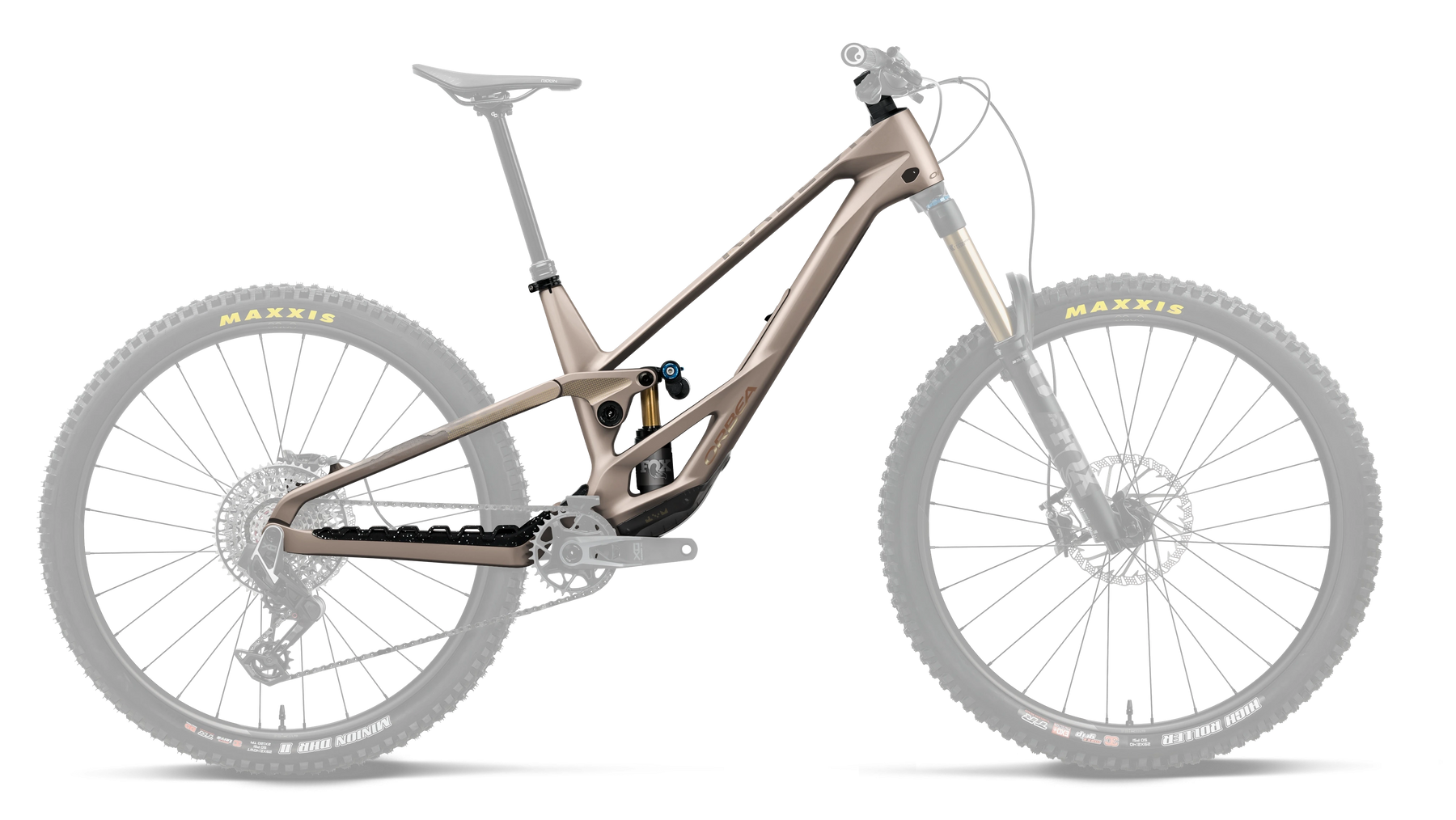

The 2027 Orbea Rallon 442 Enduro Frameset is the 442mm-chainstay frame option for Orbea's Rallon enduro mountain bike, supplied with a 205x62.5mm Fox Float X2 Factory shock, headset and e*thirteen chainguide. It suits riders who want to build their own enduro machine around Orbea's Rallon chassis. The Rallon uses Orbea's carbon OMR construction, Pure Gravity geometry and Attitude Adjust.
Key features
- 442mm chainstay Rallon OMR carbon frame
- Fox Float X2 Factory Trunnion shock 205x62.5mm
- Pure Gravity geometry with Attitude Adjust
- Headset and e*thirteen CL55 chainguide included
Specification
- Frame: Orbea Rallon OMR. 442mm chainstay length. Concentric Boost 12x148 rear axle. Pure Gravity geometry. Attitude Adjust. ISCG05
- Shock: Fox Float X2 Factory Trunnion 2-Pos Adjust Kashima custom tune 205x62.5mm
- Headset: Alloy 1-1/2", Black Oxidated Bearing
- Chainguide: e*thirteen CL55 30-36t black
- Stem: OC Mountain Control MC11 Alu SL, 0º
Geometry (mm) – 442mm chainstay
| Size | S | M | L | XL |
|---|---|---|---|---|
| Seat Tube (C-T) | 400 | 405 | 410 | 420 |
| Top Tube (EFF) | 542.6 | 574.5 | 603.1 | 635.3 |
| Head Tube | 100 | 110 | 120 | 130 |
| Chainstay | 442 | 442 | 442 | 442 |
| BB Drop | 28 | 28 | 28 | 28 |
| BB Height | 352.5 | 352.5 | 352.5 | 352.5 |
| Wheelbase | 1209.9 | 1239.3 | 1266.6 | 1298.0 |
| Head Angle | 64.25° | 64.25° | 64.25° | 64.25° |
| Seat Angle | 79.9° | 79.4° | 79.1° | 78.8° |
| Rake | 44 | 44 | 44 | 44 |
| Standover | 763 | 756 | 758 | 763 |
| Reach | 430 | 455 | 478 | 505 |
| Stack | 629.2 | 638.2 | 647.2 | 656.2 |
| Fork Length | 587.7 | 587.7 | 587.7 | 587.7 |
Geometry figures supplied by Orbea (based on the 180mm fork used on the complete bikes).
Available in sizes S, M, L and XL.
