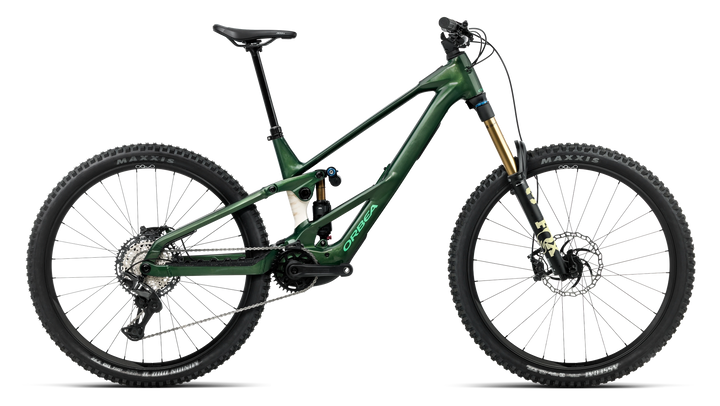

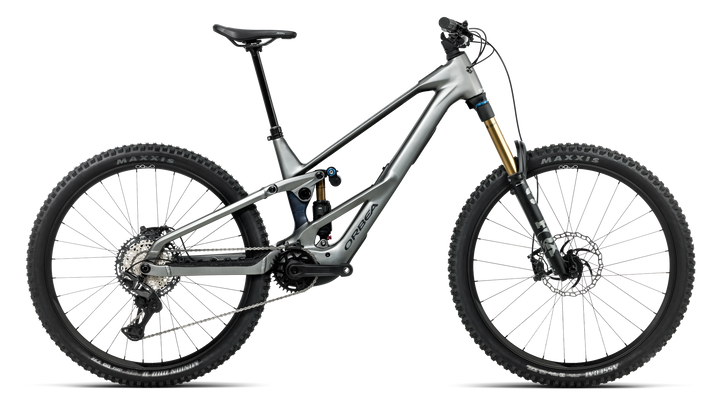

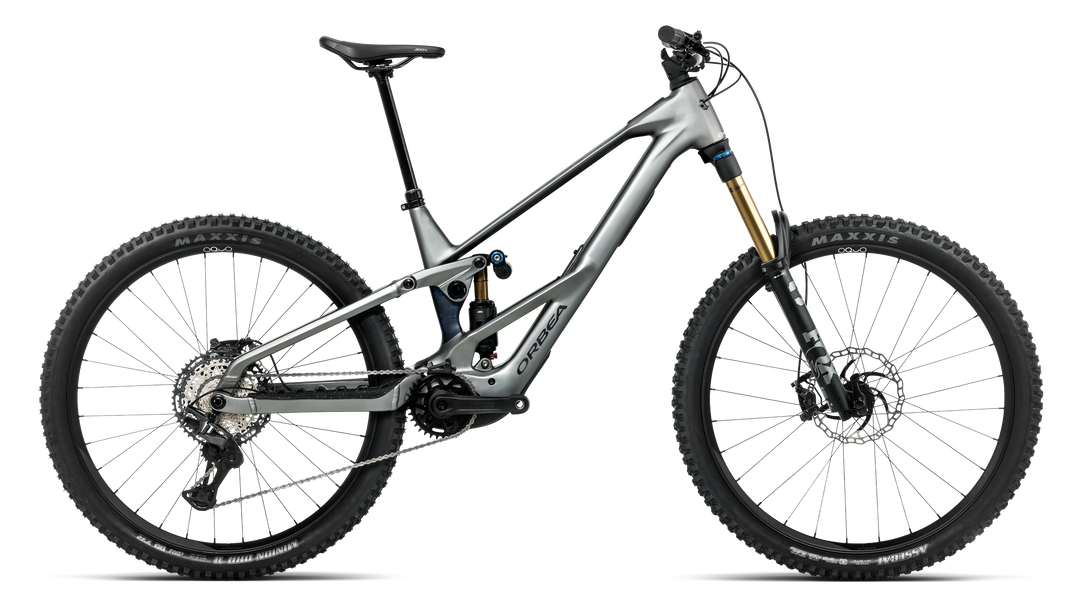

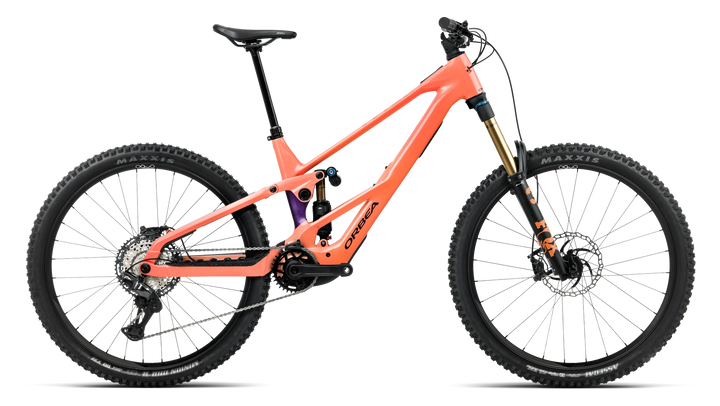

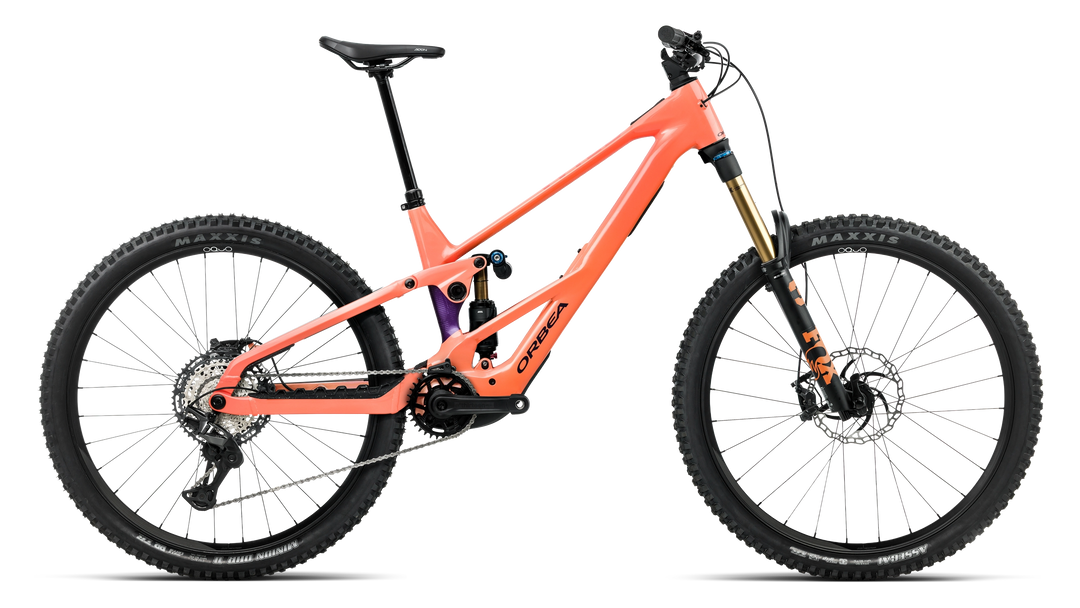

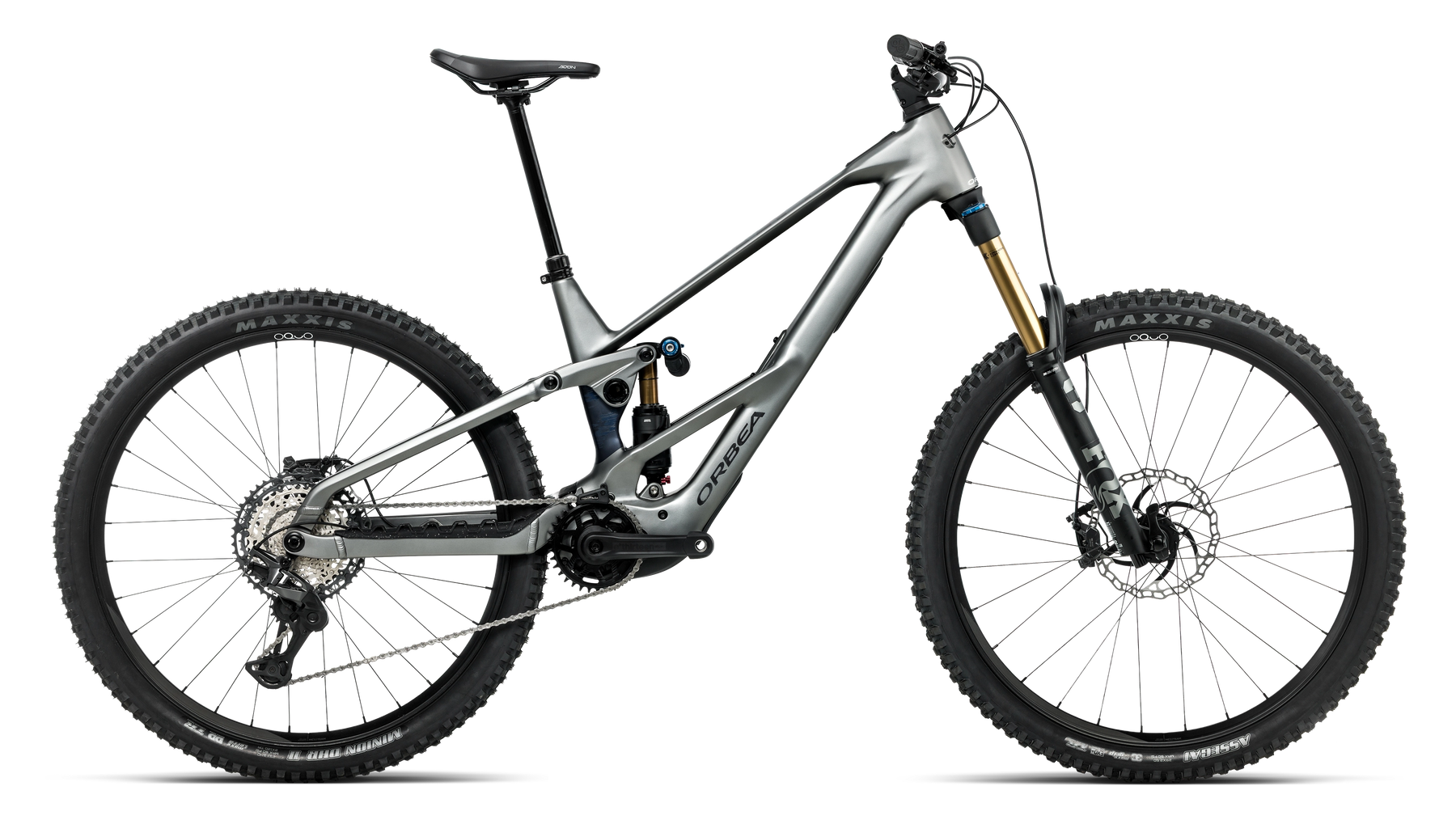

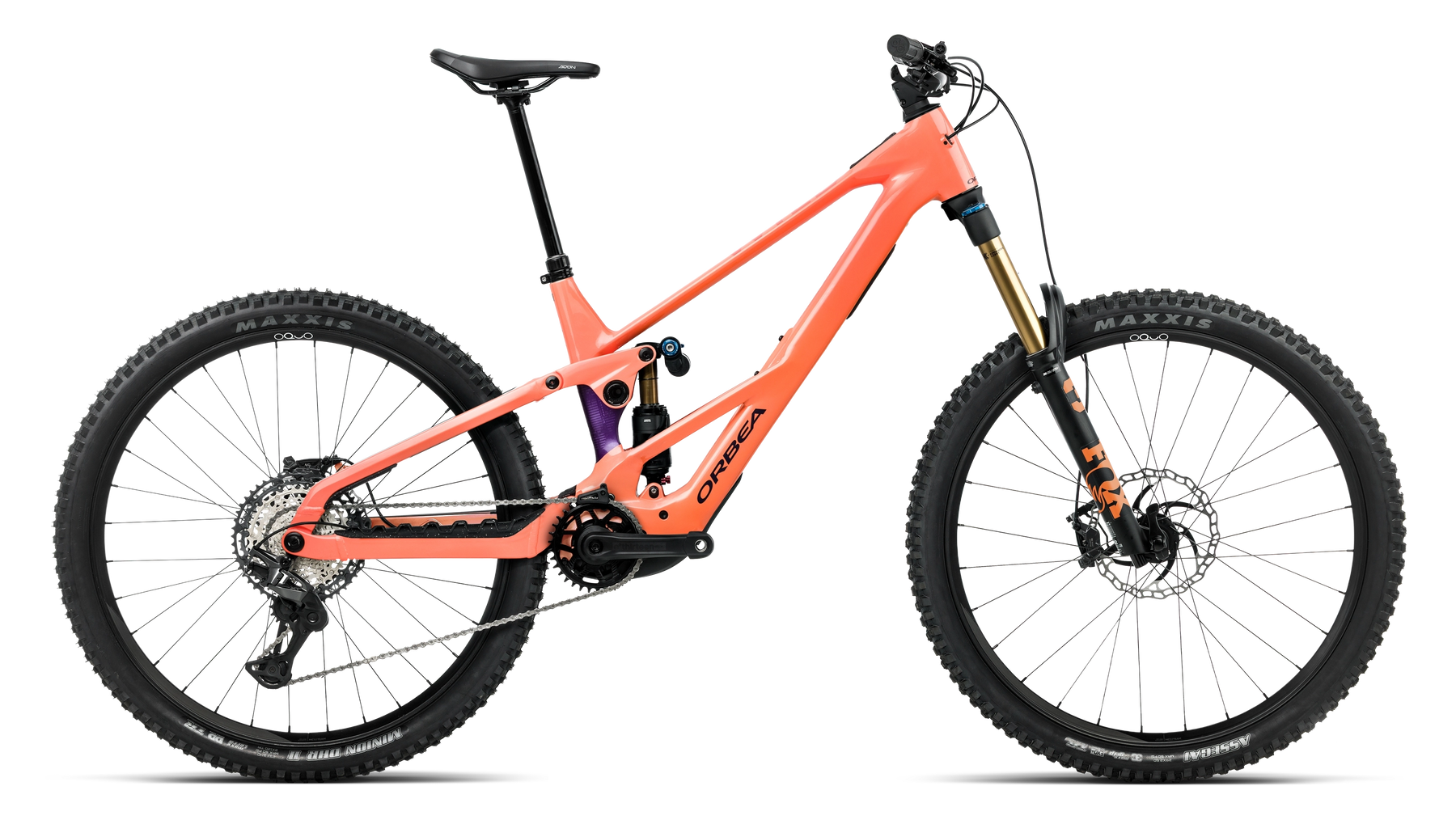

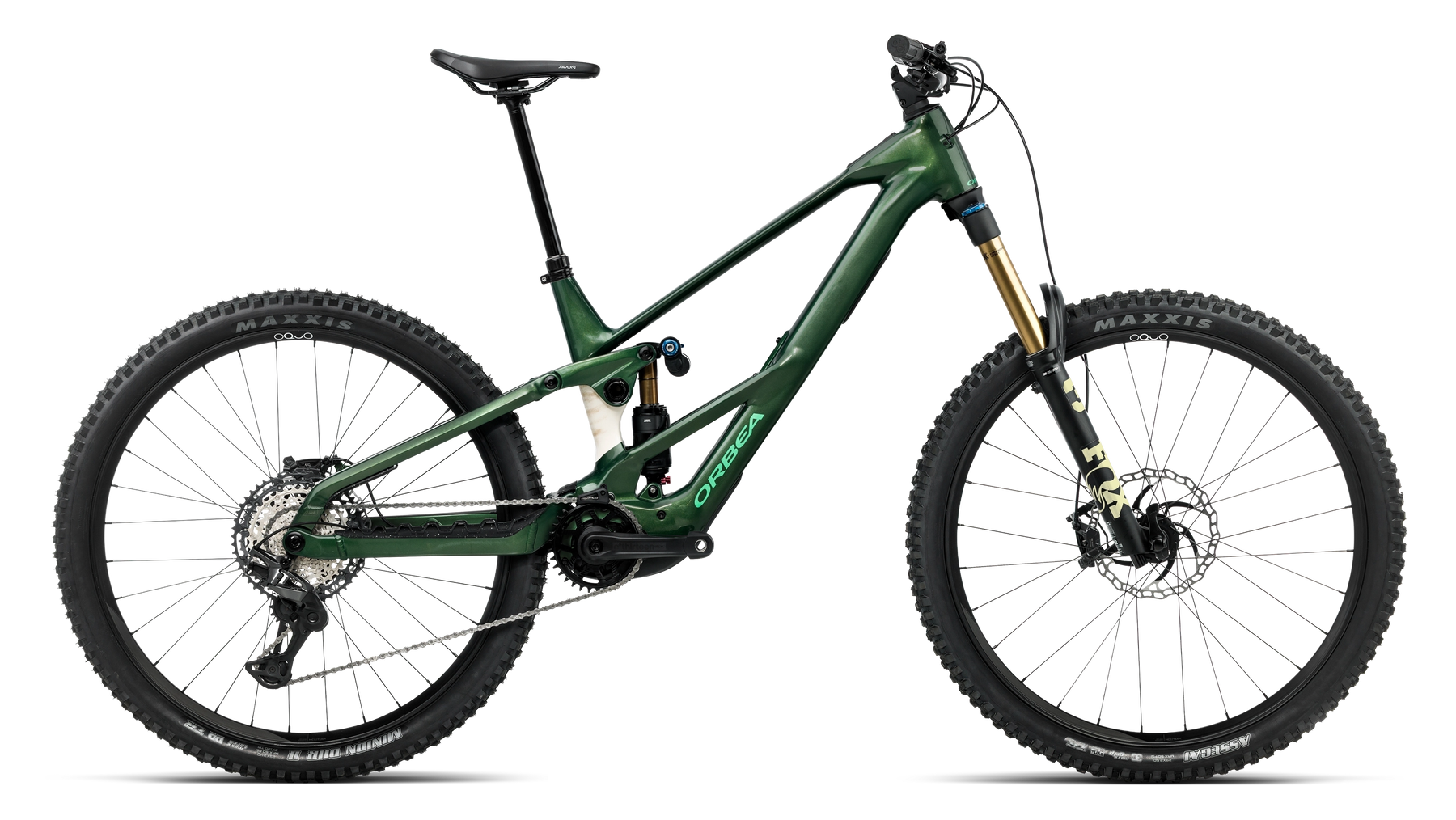

The 2027 Orbea Wild LT H-Team is a 170mm-travel full-suspension electric mountain bike (e-MTB) built for aggressive trail and enduro riding. It combines a hydroformed alloy frame, 29" wheels and an 800Wh DJI Avinox battery with the DJI Avinox M2S motor. The H-Team is the top of the alloy range, with a Fox Factory 38 fork, Float X2 shock, Oquo Team wheels and a full Shimano XT group.
Key features
- 170mm of travel with a Fox 38 fork and Fox Float X2 Factory shock
- DJI Avinox M2S motor, 800Wh battery and DP100 display
- Shimano XT M8200 12-speed drivetrain with Shimano XT 8220 brakes
- Hydroformed alloy frame, 29" wheels, Maxxis Assegai tyres
Specification
- Frame: Orbea Wild Hydro, 29" wheels, Concentric Boost 12x148
- Fork: Fox 38 Float Factory 170, Grip X2, 15x110, Kashima
- Shock: Fox Float X2 Factory Trunnion 2-Pos Adjust Kashima custom tune 205x65mm
- Motor: DJI Avinox M2S
- Battery: DJI Avinox 800Wh
- Display: DJI Avinox DP100
- Charger: DJI Avinox Charger 4A
- Remote: DJI Avinox BC100
- Brakes: Shimano XT 8220 Hydraulic Disc
- Rear Derailleur: Shimano XT M8200 SGS Shadow Plus
- Shifters: Shimano XT M8200 I-Spec EV
- Cassette: Shimano CS-M8200 10-51t 12-Speed
- Chain: Shimano M6100
- Crank: e*thirteen Helix Core e*spec
- Wheels: Oquo Mountain Control MC32TEAM POWER
- Tyres: Maxxis Assegai 2.50" 60TPI Fold 3C MaxxGrip Exo+ TR
- Saddle: Fizik Aidon 208x145mm manganese rail
- Handlebar: OC Mountain Control MC20 Alu SL, Rise 35, Width 800
- Stem: OC Mountain Control MC21, 0º
Geometry (mm) – 29" wheels, high flip chip
| Size | S | M | L | XL |
|---|---|---|---|---|
| Seat Tube (C-T) | 400 | 405 | 410 | 420 |
| Head Tube | 110 | 120 | 130 | 140 |
| Chainstay | 448 | 448 | 448 | 448 |
| BB Drop | 20 | 20 | 20 | 20 |
| BB Height | 360.5 | 360.5 | 360.5 | 360.5 |
| Wheelbase | 1229 | 1256 | 1288 | 1317 |
| Head Angle | 63.9° | 63.9° | 63.9° | 63.9° |
| Seat Angle | 78° | 78° | 78° | 78° |
| Rake | 44 | 44 | 44 | 44 |
| Reach | 436.25 | 461.25 | 486.25 | 511.25 |
| Stack | 624.5 | 633.48 | 642.46 | 651.44 |
Geometry figures supplied by Orbea for the default configuration; the low flip-chip setting changes some figures.
Available in sizes S, M, L and XL.
