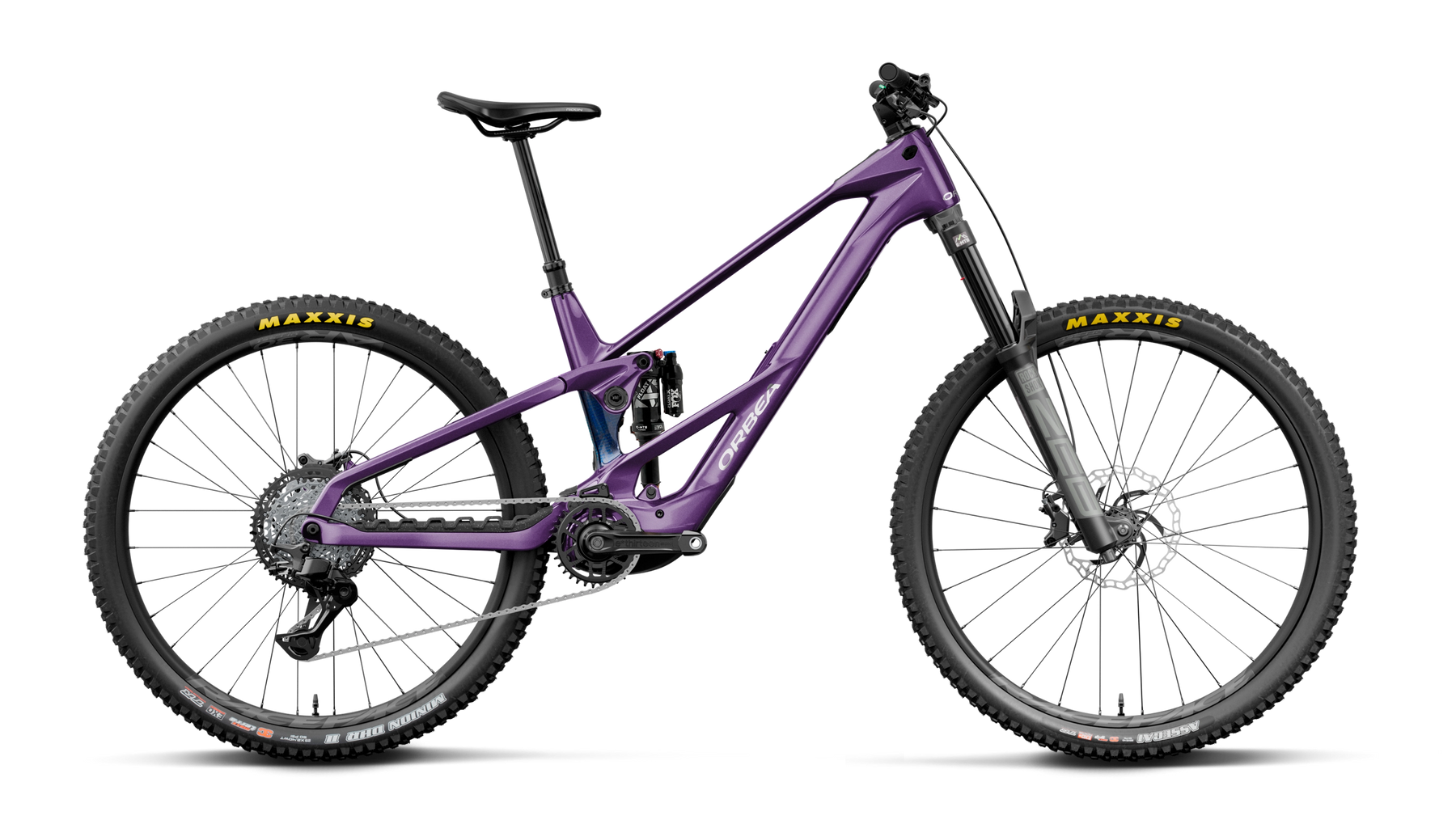

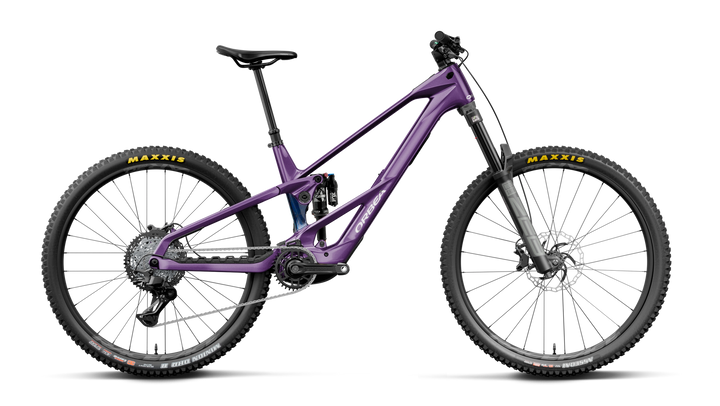

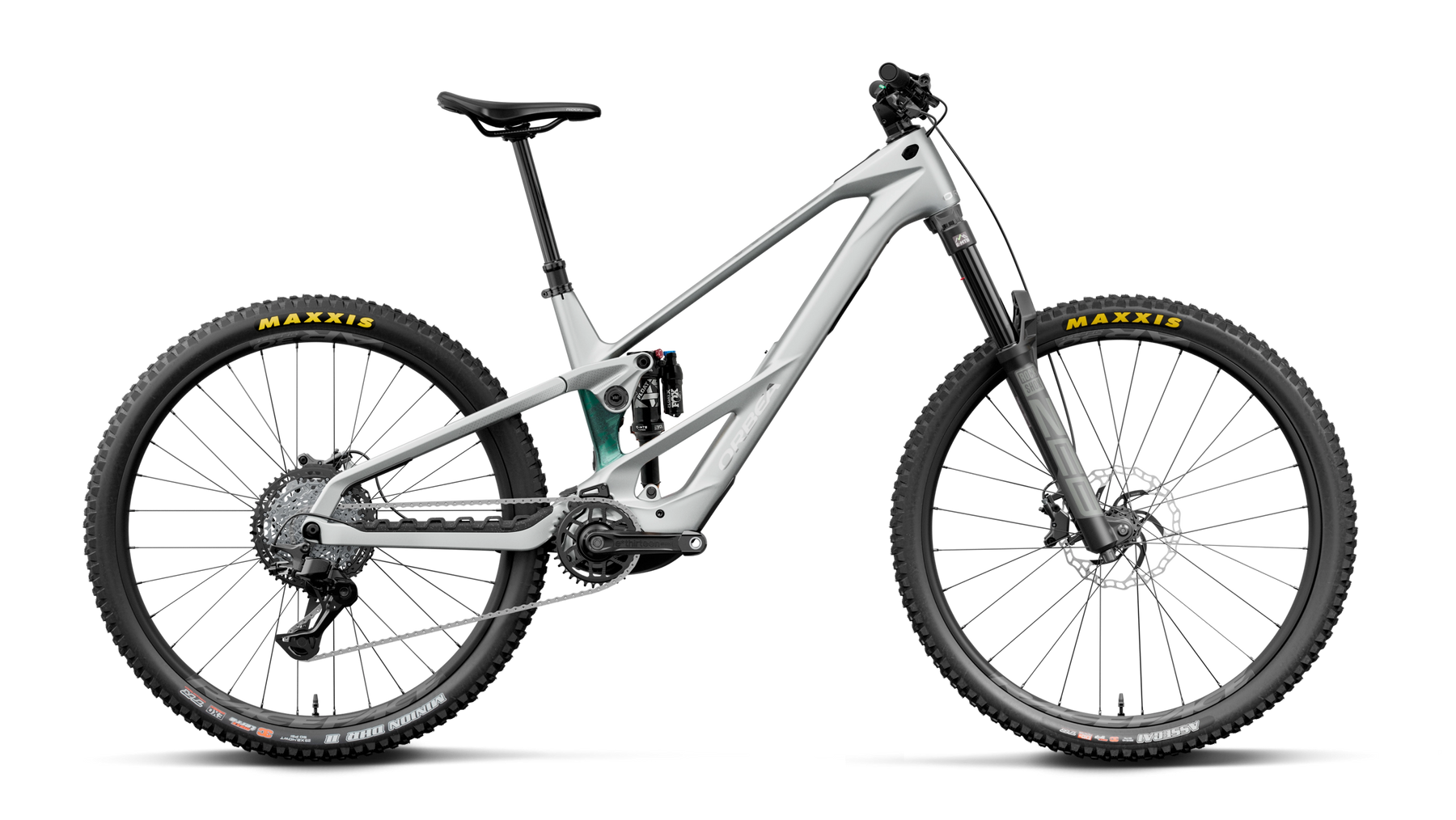

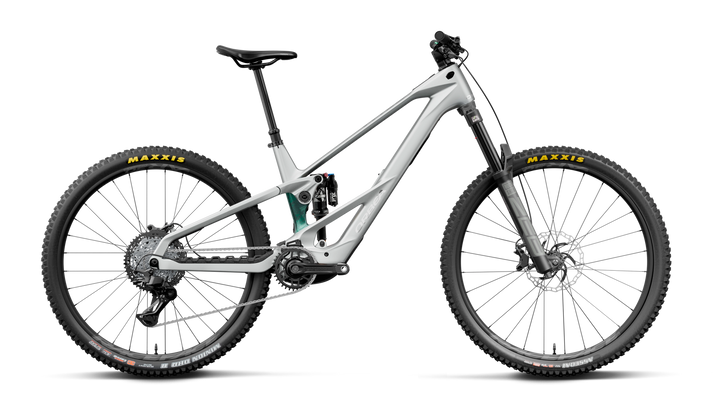

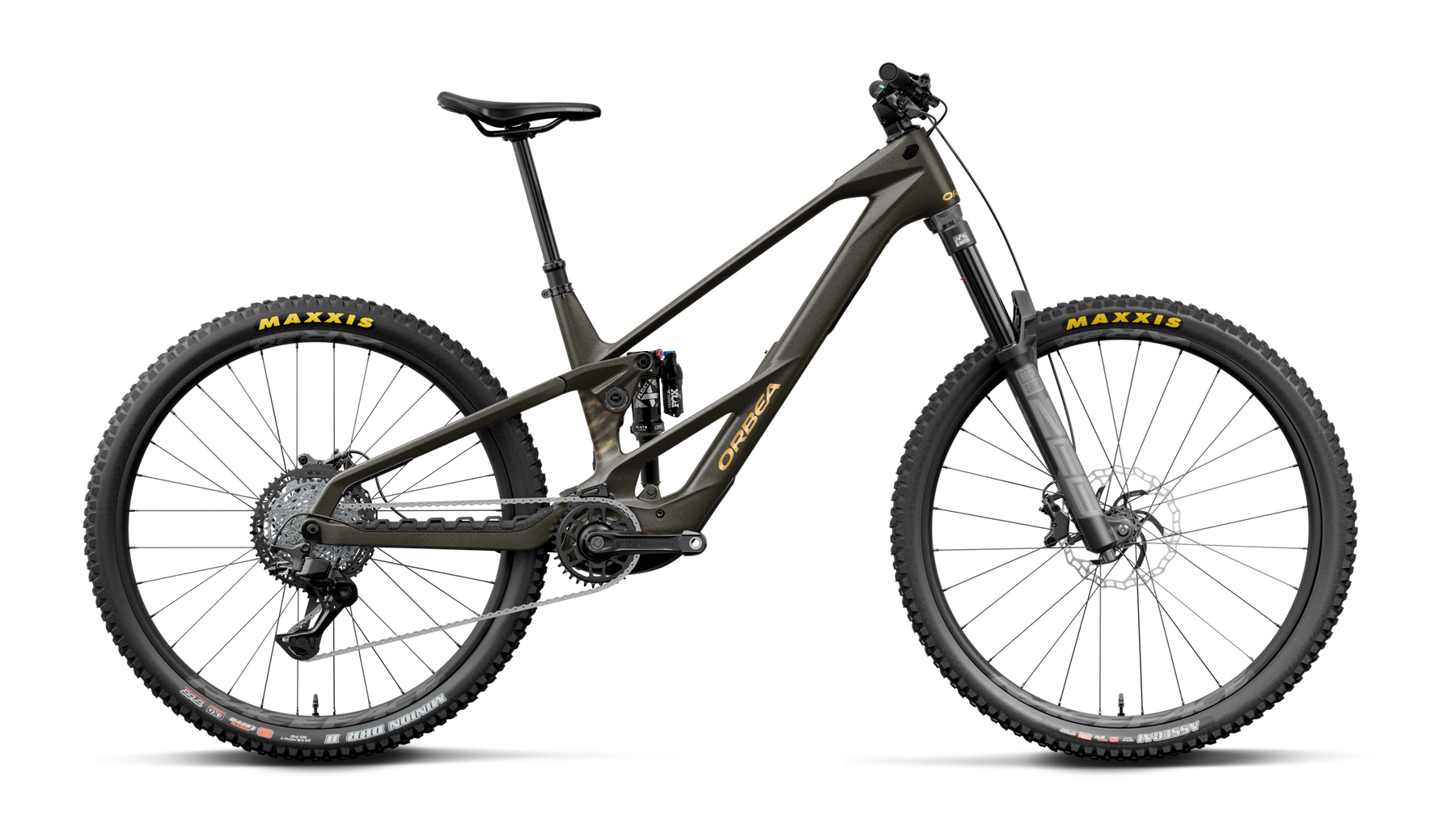

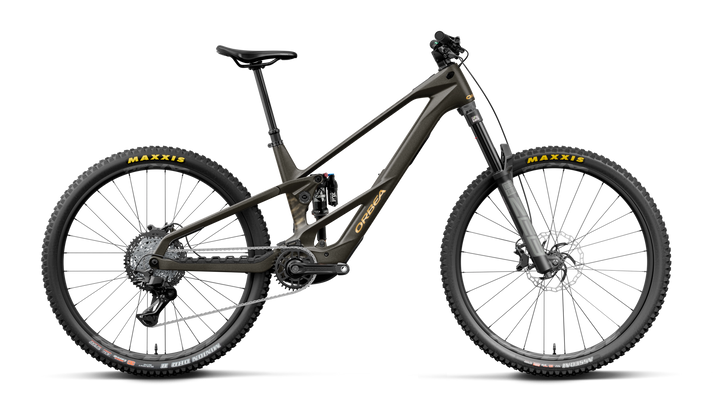

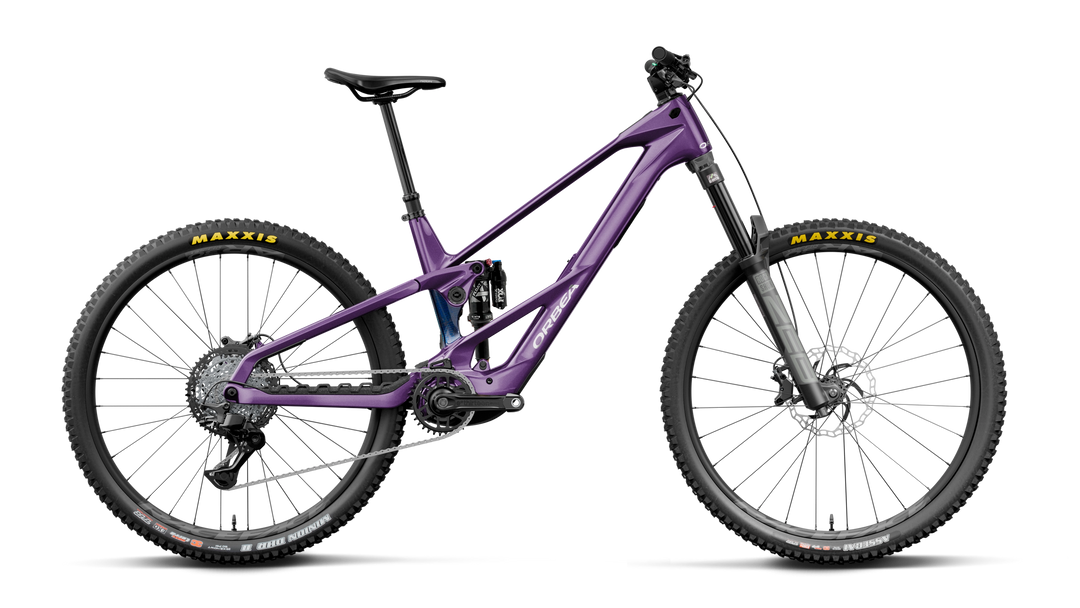

The 2027 Orbea Wild LT M20 is a 170mm-travel full-suspension electric mountain bike (e-MTB) built for aggressive trail and enduro riding. It combines a carbon OMR frame, 29" wheels and an 800Wh DJI Avinox battery with the DJI Avinox M2S motor. The M20 is the most affordable way into the OMR carbon frame, with a RockShox ZEB fork, Float X shock and a reliable Shimano Deore and MT420 build.
Key features
- 170mm of travel with a RockShox ZEB fork and Fox Float X Performance shock
- DJI Avinox M2S motor, 800Wh battery and DP100 display
- Shimano Deore M7200 12-speed drivetrain with Shimano MT420 brakes
- Carbon OMR frame, 29" wheels, Maxxis Assegai tyres
Specification
- Frame: Orbea Wild OMR 2027, 29" wheels, Concentric Boost 12x148
- Fork: RockShox ZEB Base DebonAir+ 170 E-MTB specific 15x110 Boost
- Shock: Fox Float X Performance Trunnion 2-Pos Evol LV custom tune 205x65mm
- Motor: DJI Avinox M2S
- Battery: DJI Avinox 800Wh
- Display: DJI Avinox DP100
- Charger: DJI Avinox Charger 4A
- Remote: DJI Avinox BC100
- Brakes: Shimano MT420 Hydraulic Disc
- Rear Derailleur: Shimano Deore M7200 SGS Shadow Plus
- Shifters: Shimano Deore M6200 I-Spec EV
- Cassette: Shimano CS-M6200 10-51t 12-Speed
- Chain: Shimano M6100
- Crank: e*thirteen Helix Core e*spec
- Wheels: Race Face AR 30c Tubeless Ready
- Tyres: Maxxis Assegai 2.50" 60TPI Fold 3C MaxxGrip Exo+ TR
- Saddle: Fizik Aidon 208x145mm manganese rail
- Handlebar: OC Mountain Control MC30, Rise20, Width 800
- Stem: OC Mountain Control MC21, 0º
Geometry (mm) – 29" wheels, high flip chip
| Size | S | M | L | XL |
|---|---|---|---|---|
| Seat Tube (C-T) | 400 | 405 | 410 | 420 |
| Top Tube (EFF) | 562.96 | 593.37 | 622.81 | 652.07 |
| Head Tube | 110 | 120 | 130 | 140 |
| Chainstay | 448 | 448 | 448 | 448 |
| BB Drop | 20.01 | 20.01 | 20.01 | 20.01 |
| BB Height | 357.49 | 357.49 | 357.49 | 357.49 |
| Wheelbase | 1228.94 | 1258.34 | 1287.74 | 1317.14 |
| Head Angle | 63.90° | 63.90° | 63.90° | 63.90° |
| Seat Angle | 78° | 78° | 78° | 78° |
| Rake | 44 | 44 | 44 | 44 |
| Standover | 773.74 | 776.97 | 780.7 | 783.93 |
| Reach | 436.24 | 461.24 | 486.24 | 511.24 |
| Stack | 624.51 | 633.49 | 642.47 | 651.45 |
| Fork Length | 583.7 | 583.7 | 583.7 | 583.7 |
Geometry figures supplied by Orbea for the default configuration; other wheel and flip-chip settings change some figures.
Available in sizes S, M, L and XL.
