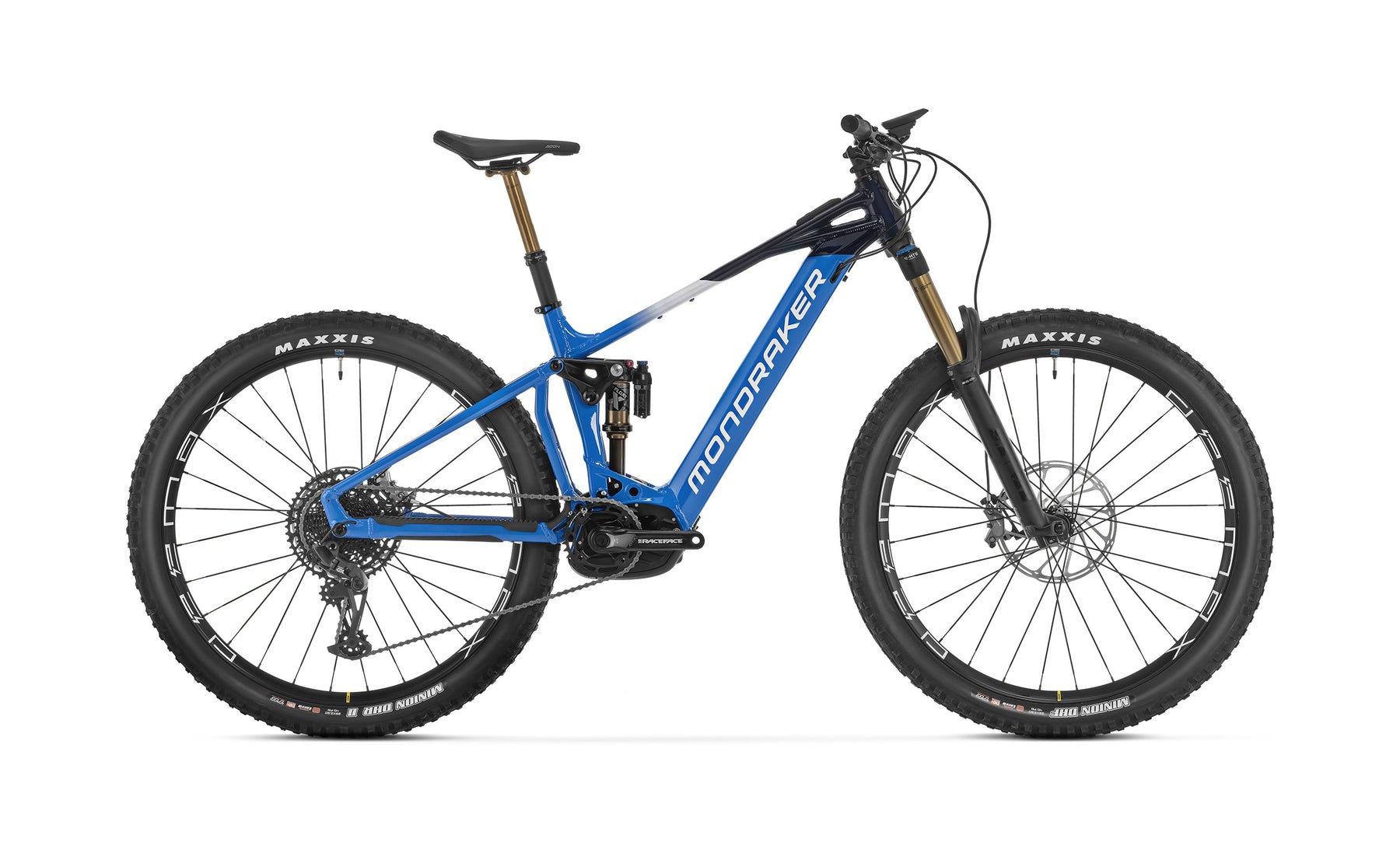

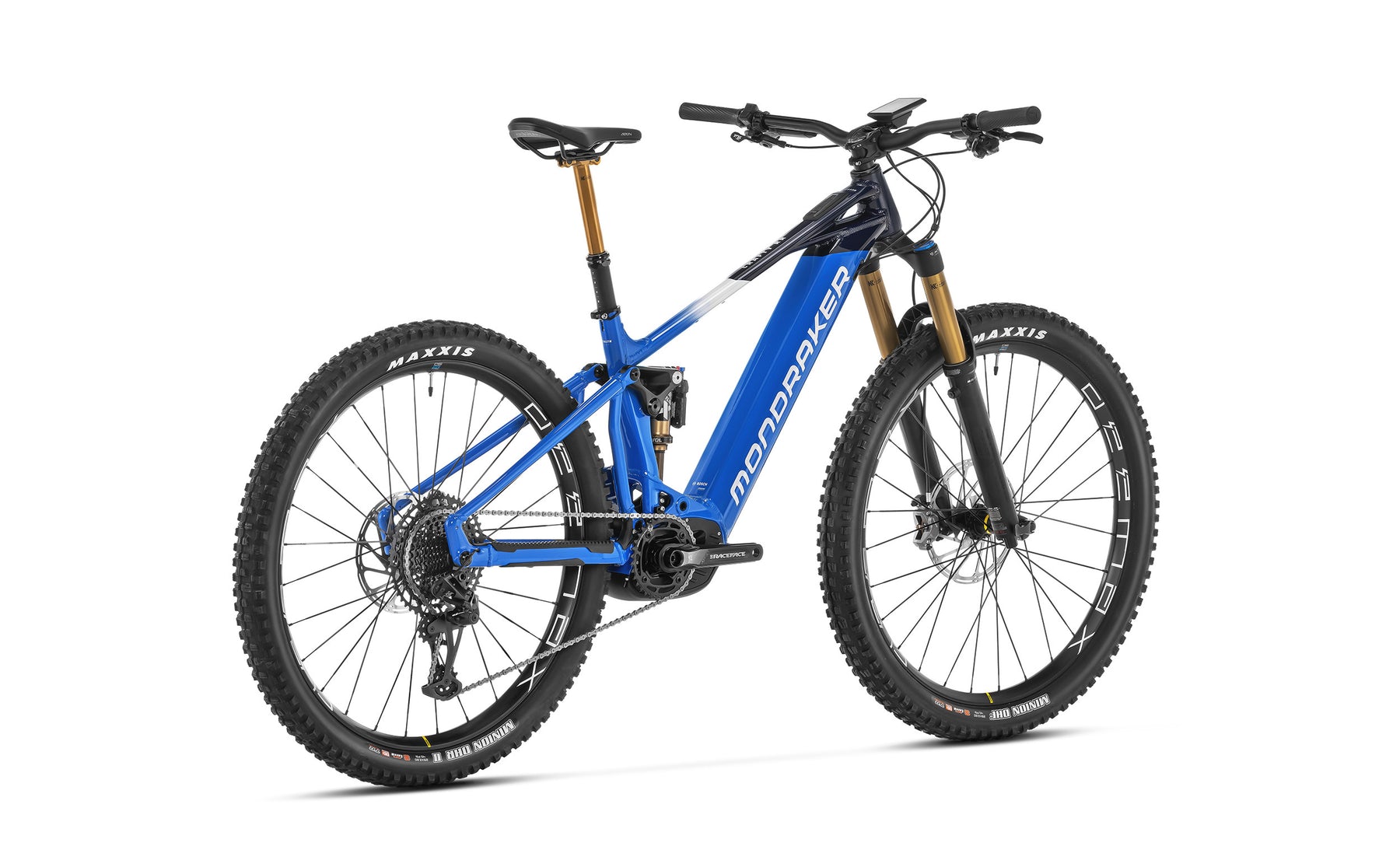

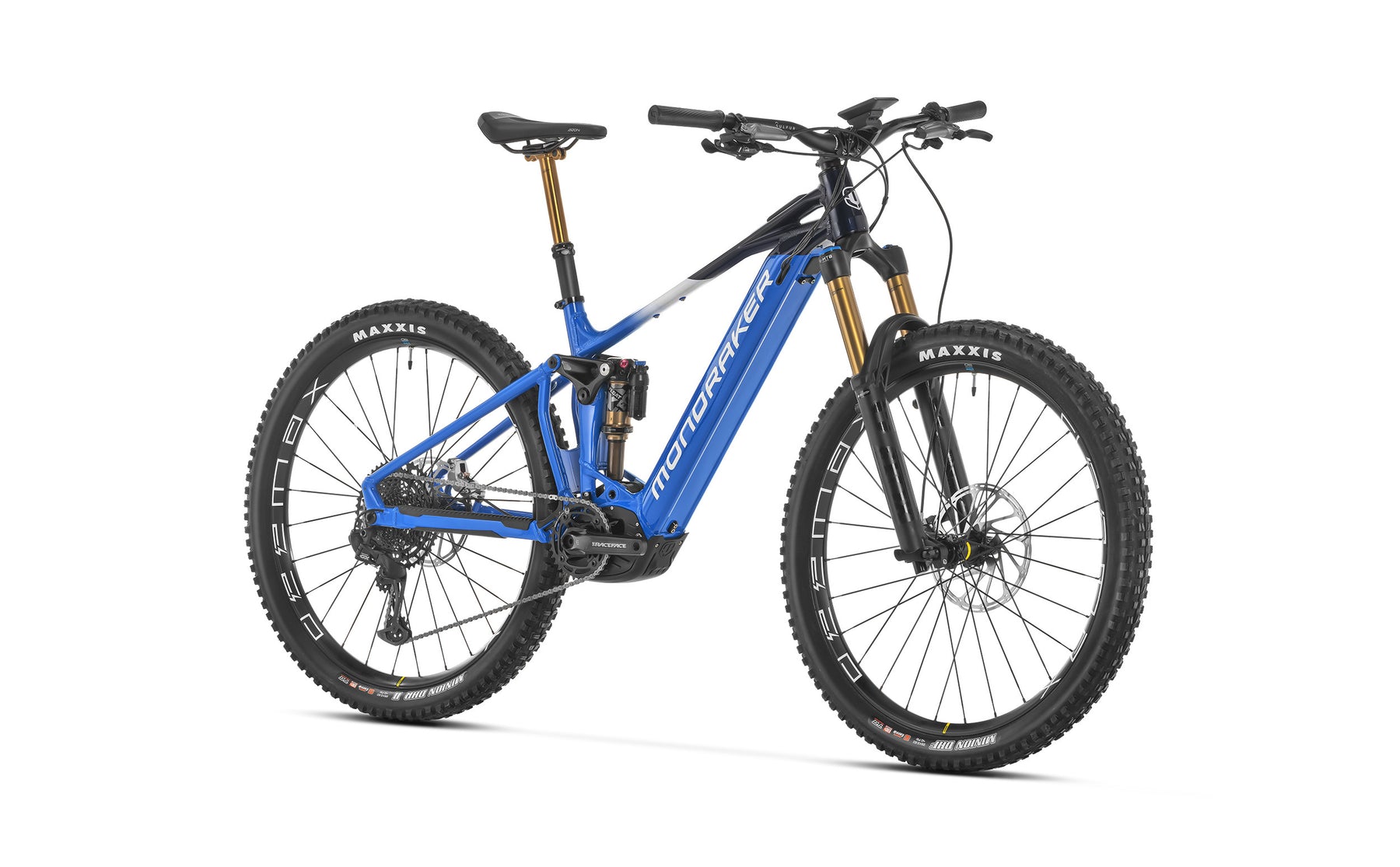

Mondraker Crafty RR E-MTB
Mondraker Crafty RR E-MTB
Mondraker Crafty RR E-MTB

Mondraker Crafty RR E-MTB

Regular price $7,004.00
/
Shipping calculated at checkout.

Taking full advantage of its optimized ZERO suspension system this bike soaks up the trail chatter like a dream. Then you add FORWARD GEOMETRY and a STEALTH ALLOY EVO frame to give you spectacular agility and the most fun ride you can imagine. The Fox 38 fork together with Fox’s Float X shock absorber, both from the Factory range, provide mind-blowing control whatever the situation and however gnarly things get. There’s no question the improvements to the CRAFTY RR will make you feel like a pro.


TECHNICAL SPECS

  • frame

    Frame

    Crafty 6061 Alloy Stealth Evo, e-Bike Optimized Zero Suspension System, 150mm travel, Forward Geometry, internal non-removable battery, Boost 12x148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 17mm axles, integrated dropout speed sensor, exclusive plastic motor covers.


    sizes

    Sizes

    S: 380mm / M: 420mm / L: 450mm / XL: 490mm

  • rear shock

    Rear shock

    Fox Float-X LV Factory Kashima, 205x65mm. Settings: compression 2 positions lever, low-speed compression, low-speed rebound, air preload. Trunnion top mount, 25x10mm bottom bushings


    shock settings

    Shock settings

    medium compression, medium rebound, air volume spacer 0.2

  • fork

    Fork

    Fox 38 29 Float GRIP2 Factory Kashima, 160mm, e-bike tuned, tapered steerer tube, Boost 15x110mm axle, offset 44mm. Settings: high and low-speed compression, high and low-speed rebound, air preload


    headset

    Headset

    Onoff Saturn tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41x30.2x7x45ºx45º, bottom 51.9x40x8x45ºx45º

  • stem

    Stem

    Onoff Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore


    handlebar

    Handlebar

    Onoff Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore

  • grips

    Grips

    Onoff Desert, 1lock-on, 135mm


    seatpost

    Seatpost

    Fox Transfer Factory Kashima internal, diameter 31.6mm, S size: 363.5x125mm, M size: 418.3x150mm, L/XL size: 475.1x175mm

  • saddle

    Saddle

    FIZIK Terra Aidon X5 145mm


    front brake

    Front brake

    Sram Code R, oversized 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads

  • rear brake

    Rear brake

    Sram Code R, oversized 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads


    brake lever

    Brake lever

    Sram Code R, tool-free reach adjust

  • rims

    Rims

    Mavic E-Deemax 29, 30mm internal width, welded, PFP, tubeless ready, 28 spokes


    spokes

    Spokes

    Mavic J-bend double butted, contactless lacing

  • front hub

    Front hub

    Mavic, Boost 15x110mm, IS 6 bolts


    rear hub

    Rear hub

    Mavic, Boost 12x148mm, ID360 Ratchet system, IS 6 bolts

  • front tire

    Front tire

    Maxxis Minion DHF 29x2.6, tubeless ready, 3C MAXX TERRA, EXO+ Protection, 120TPI, folding bead


    rear tire

    Rear tire

    Maxxis Minion DHR II 29x2.6, tubeless ready, 3C MAXX TERRA, EXO+ Protection, 120TPI, folding bead

  • crankset

    Crankset

    Race Face Aeffect ebike, 165mm


    rings

    Rings

    Sram X-Sync 2 Eagle 34T, steel, narrow-wide, 104 BCD

  • chain

    Chain

    Sram NX Eagle, 12s, Powerlock


    rear derrailleur

    Rear derrailleur

    Sram GX Eagle, Type 3 roller bearing clutch, cage lock, 1x12s, X-Actuation 1:1

  • shift levers

    Shift levers

    Sram Trigger GX Eagle, 12s, X-Actuation 1:1, single click


    casette

    Casette

    Sram XG-1230, 11-50T, 12s

  • derailleur hanger

    Derailleur hanger

    Mondraker M068


    weight

    Weight

    25,5 kg

  • display

    Display

    Bosch Kiox 300 / Bosch Mini Remote / Bosch System Controller


    motor

    Motor

    Bosch Performance Line CX (25km/h) Smart System

  • battery

    Battery

    Bosch Powertube 750Wh

     GEOMETRY

    FRAME SIZE S M L XL
    A Seattube length 380mm 420mm 450mm 490mm
    B Toptube length 605mm 625mm 650mm 670mm
    C Bottom bracket drop -25mm -25mm -25mm -25mm
    D Bottom bracket height 350mm 350mm 350mm 350mm
    E Chainstay length 455mm 455mm 455mm 455mm
    F Seat tube angle 73.5° 73.5° 73.5° 73.5°
    G Effective seattube angle 76° 76° 76° 76°
    H Headtube angle 65.5° 65.5° 65.5° 65.5°
    I Fork Offset 44mm 44mm 44mm 44mm
    J Wheelbase 1225mm 1245mm 1265mm 1285mm
    K Headtube length 110mm 110mm 130mm 130mm
    L Reach 450mm 470mm 490mm 510mm
    M Stack 622mm 622mm 640mm 640mm
