Chaos Dirt Jump Wheels are the World Championship winning, benchmark wheels for dirt jumping.
Used and loved world over by riders and endorsed by international professionals Sam Pilgrim and Matt Jones. Chaos Dirt Jump Wheels are at the pinnacle of the sport that stand up to the hardest of use.
These wheels utilise our tried and tested Chaos rim which offers tubeless compatibility where required, as well as a 22.5mm internal (28mm external) width. These widths have been optimised for strength in addition to tyre profiling.
The front wheel features:
the brake-less DJ Wideboy hub that offers wide spaced flanges for optimum lateral wheel strength.
Front Fork Compatibility:
15x100mm thru axle as standard.
Optional extra adaptors are available to fit with forks using:
QR 5/9x100mm, 15x110mm Thru, 20x100mm Thru or 20x110mm Thru.
(Please see the ‘Halo Wide Boy front hub’ for more front hub option details)
The Rear wheels feature 3 main hub options:
DJD Rear SS Hub (Bushdrive)
This great value option features a 3 pawl, 30-point engagement drive mechanism, sealed main bearings and a bush bearing system in the micro-freehub.
The DJD Bushdrive freehub uses thread-on DJD sprockets (not included)
DJD Supadrive SS Hub
This hi-performance option features our 120-point Supadrive mechanism, sealed main bearings and a bush bearing system in the micro-freehub.
The DJD Supadrive freehub uses thread-on DJD sprockets (not included)
DJD Supadrive and Bushdrive Sprockets
Thread-on DJD sprockets are 1/8” SS chain width and available in sizes 9, 10, 11, 13, 14 and 16 teeth.
MT Supadrive SS Hub
This hi-performance option features our 120-point Supadrive mechanism and sealed bearings throughout.
The MTSS must be used with Halo Fat Foot Sprockets using a splined fit (not included)
Fat Foot Sprocket
HG type spline fitting Fat Foot sprockets are 1/8” SS chain width and available in sizes 12-20T.
All 3 rear hub types fit with ‘slotted’ 10x135mm frame dropouts as standard using capped M10 Bolts. (The two DJD models also include 10-14mm adaptors to allow fitment into 14mm slotted frame dropouts.)
If using alternative frame dropouts:
12x135mm Thru axle – select the DJD Bushdrive hub and use an axle conversion kit.
DJD BD 12mm Axle Kit. Item code: HUHADBA2
12x 142mm Thru axle – select the MTSS hub and use an axle conversion kit.
MT Supadrive SS 142 x 12mm Axle Kit. Item code: HUHAZSVSR2
12 x 148mm (Boost) Thru axle – select the MTSS hub + 142mm axle kit (above) and add the Halo Boost adaptor kit: MT Supadrive Boost Disc Adaptor. Item code: HXHASVTB
Our rear wheels no longer come with a sprocket included, so please choose an additional 'DJD Supadrive and Bushdrive Sprocket' for the DJD hub options or ‘Fat Foot Sprocket’ for the MTSS option to suit your bike.
- SpokesBlack double butted stainless spokes
- NipplesBlack ED coated brass nipples

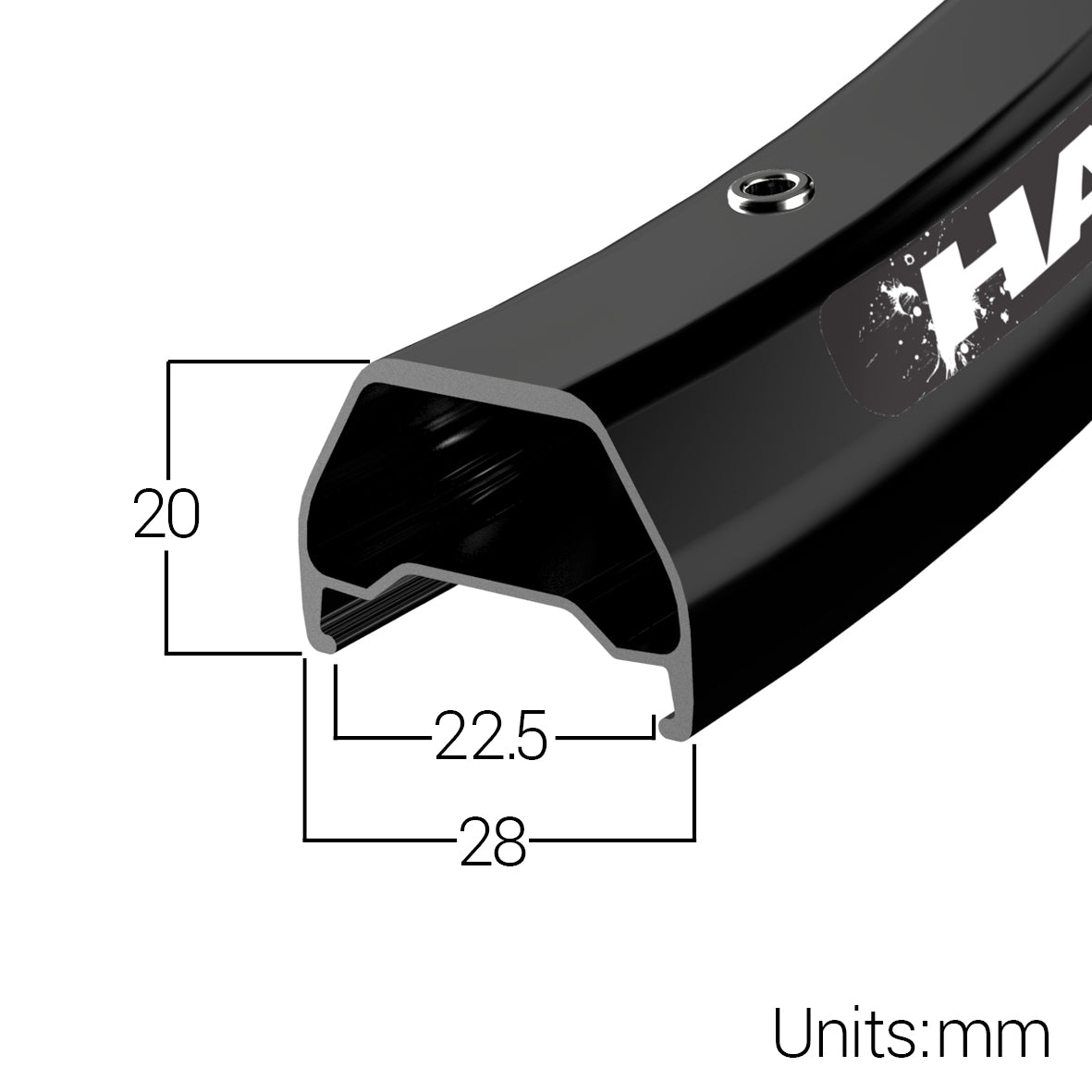

- Rim Depth20mm
- Internal Rim Width22.5mm
- External Rim Width28mm
- Front Hub Spacing110mm (20mm T-axle) or 100mm (QR or 15mm T-axle)
- Rear spacing135mm
- Disc MountIS 6-Bolt (rear only)
- Recommended Tyre size2- 2.5
- TubelessTubeless ready
