Haibike AllMtn 3 EMTB

£4,799.00 £3,199.00 Save £1,600.00
/
Tax included. Shipping calculated at checkout.
Only 1 items in stock!

ABOUT THE BIKE

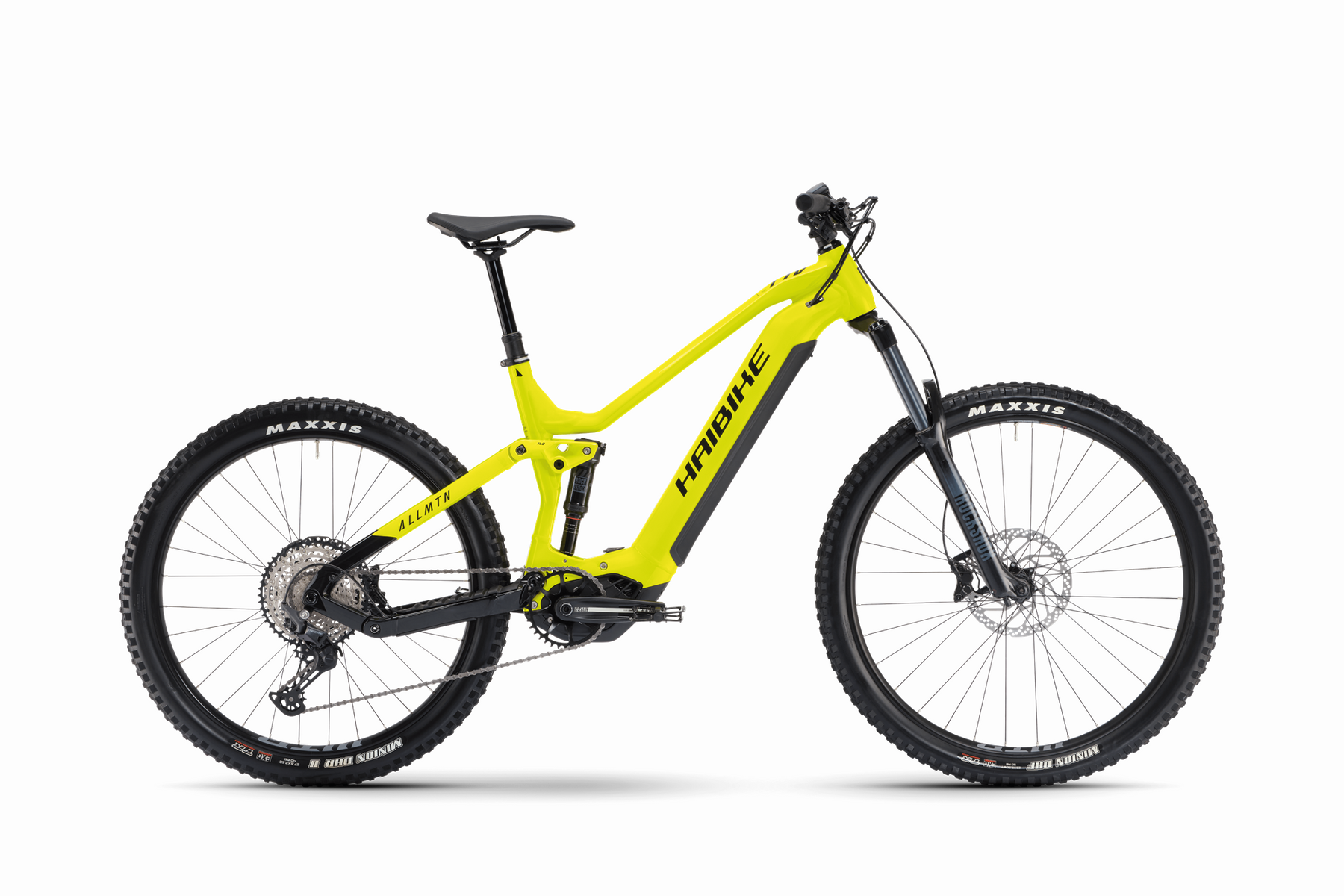

Are you looking for a robust eFully that takes on any terrain? Then our new ALLMTN 3 is the perfect all-rounder for you: With 160 mm travel front and rear, burly 4-piston disc brakes from Shimano and the powerful Yamaha PW-X3 drive, this eMTB takes you smoothly over all trails. Thanks to the mixed wheel sizes of 29" front / 27.5" rear, you will always enjoy perfect traction and master even the steepest uphills and downhills without a problem.



KEY FEATURES


  • FORK

    RockShox 35 Gold RL, Travel: 160mm


  • BATTERY

    InTube 720 Wh


  • FRAME MATERIAL

    Aluminium


  • DRIVE UNIT

    Yamaha PW-X3 System, 85Nm, 25km/h

SPECIFICATIONS

    • ENGINE

      Yamaha, PW-X3, 250W, 85 Nm

    • DISPLAY

      Yamaha, Side Switch, 1.7" LCD, 7 functions

    • BATTERY

      InTube, 720 Wh

    • FORK

      RockShox, 35 Gold RL, Air, travel= 160 mm, Aluminium steerer tube 1 1/8" - 1 1/2" tapered, 15 x 110mm thru-axle Boost

    • DAMPER

      RockShox, Deluxe select, Air, Trunnion Mount

    • CRANK ARM

      Haibike Components, The Crank ++, Aluminium

    • BRAKE (FRONT)

      Shimano, MT420, 4-piston disc brake

    • BRAKE (REAR)

      Shimano, MT420, 4-piston disc brake

    • TUBE

      Presta valve

    • RIM

      WTB, ST i30 TCS, Double Wall

    • CLAMPING RING

      Internal hexagon, 38 mm

    • REAR DERAILLEUR

      Shimano, Deore M6100

    • SHIFT LEVER

      Shimano, Deore M6100, Trigger switch

    • BOTTOM BRACKET

      integrated in the motor

    • SPROCKET

      Shimano, M6100, 10 - 51 teeth

    • CHAIN

      Shimano, CN-M6100

    • CHAINRING

      Steel, 36 teeth

    • CHAIN GUIDE

      Nylon directmount

    • BRAKE LEVER

      Shimano, MT401, Aluminium,

    • BRAKE DISC (FRONT)

      Shimano, RT EM300L, 203 mm

    • BRAKE DISC (REAR)

      Shimano, RT30-L, 203 mm

    • TYRE

      Maxxis, Minion DHF II, 63-622, 29" x 2.5"

    • FRONT WHEEL HUB

      Shimano, MT400-B, Centerlock

    • REAR WHEEL HUB

      Shimano, MT410, Centerlock

    • SPOKES

      Sapim, Race, Black

    • HANDLEBAR

      Haibike Components, TheBar +++, 780 mm

    • STEM

      Haibike Components, TheStem ++, A-head, 31.8 mm

    • HEADSET

      Acros, BlockLock, Aluminium

    • SADDLE

      Selle Royal, Vivo

    • SEAT POST

      Haibike Components, Dropper-Post Remote 34.9, Aluminium, Telescope, 34.9 mm

    • PEDALS

      Freeridepedal, Aluminium, with Reflector

    • PERMITTED TOTAL WEIGHT

      120.0 kg

    • GEAR SHIFT

      Shimano, Nexus

    • TYRE (REAR)

      Maxxis, Minion DHR II, 66-584, 27.5" x 2.6"

    • RIM (REAR)

      WTB, ST i35 TCS, double wall


GEOMETRY
