Regular price £11,499.00
/
Tax included. Shipping calculated at checkout.

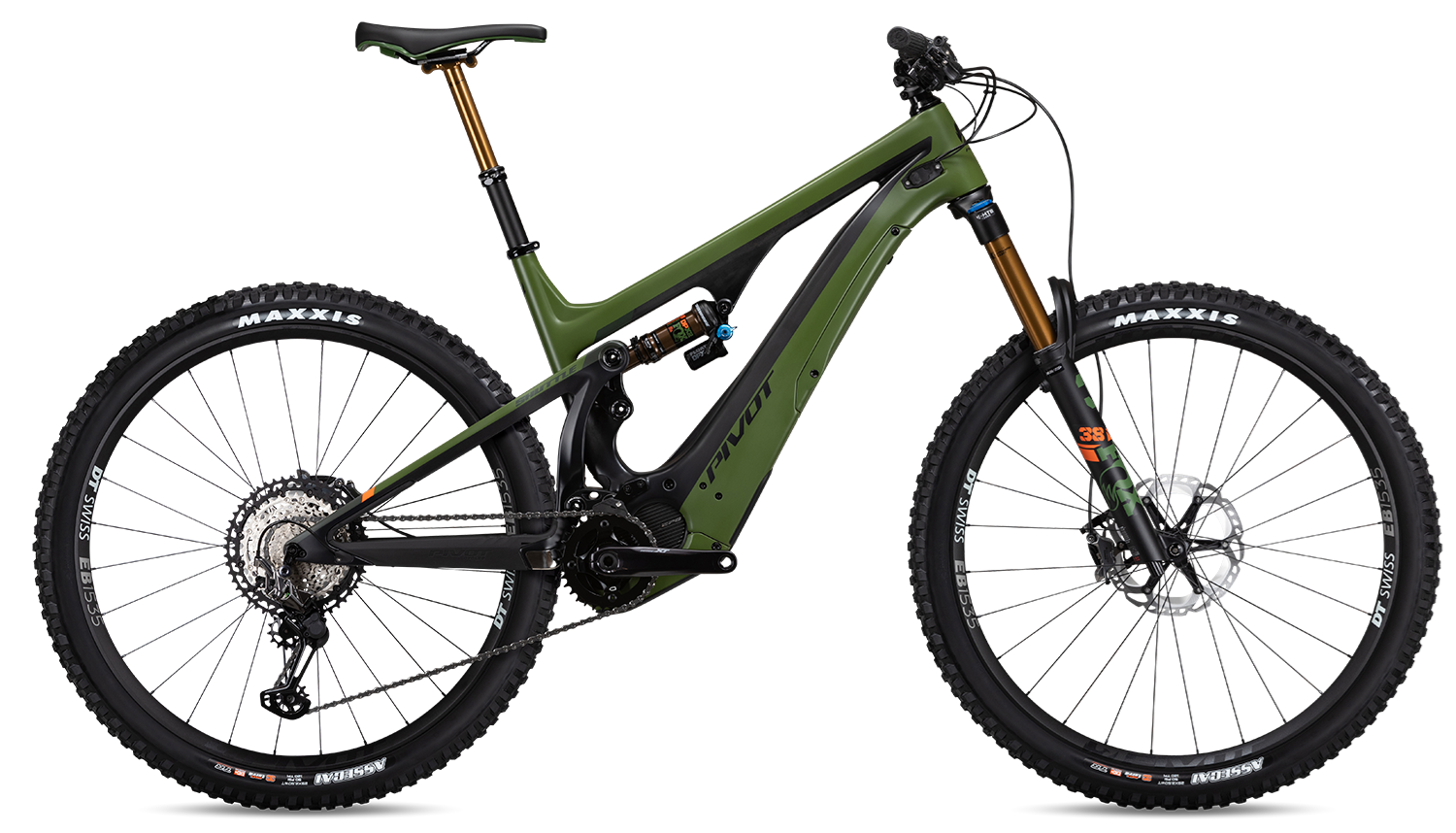

Shuttle

Potential, Realized.

The Shuttle redefined electric assist mountain biking.  Sleek, lightweight, capable, beautifully crafted, with the motor and battery seamlessly integrated into its design, the Shuttle ushered in a whole new way of riding. Now, the redesigned Shuttle has the juice to take your riding even further. A sophisticated carbon fiber chassis houses an equally sophisticated Shimano EP8 drive unit and a massive 726 Wh battery. Progressive geometry, highly evolved dw-link suspension and a brawny Fox 38 fork offer unmatched suspension performance and handling. The Shuttle has the power to take you where you dream of going, and give you the ride of your life getting there and back.

The Power To Go Big



The 726 Wh battery demolishes old expectations about range, and gives you the power to ride longer, explore deeper. Shimano’s EP8 drive unit is incredibly efficient, extending battery life even further. Our uniquely adapted battery features a new two bolt release system, making battery swaps or off-the-bike charging a snap. An ergonomic power button and discreet charging port are cleanly integrated into the Pivot Cable Port System for an elegant and simple interface. Now you can boost more without worrying about battery life, and really stretch those long rides out.

The Ultimate Edge



Shimano’s EP8 is lighter, quieter, and more powerful than its predecessor. This next-level drive unit is perfectly matched with the Shuttle’s suspension design. The dw-link's legendary pedaling efficiency extracts every last ounce of effort from each assisted pedal stroke, regardless of how much assist the motor is providing. The dw-link suspension and metric Fox DPX2 shock provides 140 mm of plush, controlled performance, matched with a stout, 160mm travel Fox 38 fork. Chassis, suspension, motor, and battery integrate together at the pinnacle of eMTB evolution, setting you free to expand your limits on the trail, wherever and however you like to charge.

Lighter, more efficient, and more powerful Shimano EP8 Drive Unit

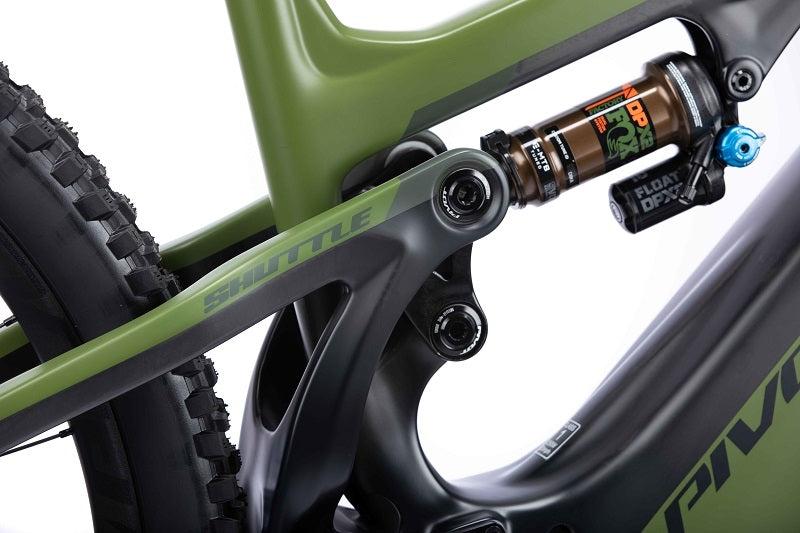

Metric Fox DPX2 shock, 140mm travel, dw-link suspension



726 W/hr. battery standard; 635 W/hr. and 508 W/hr. battery compatibility.

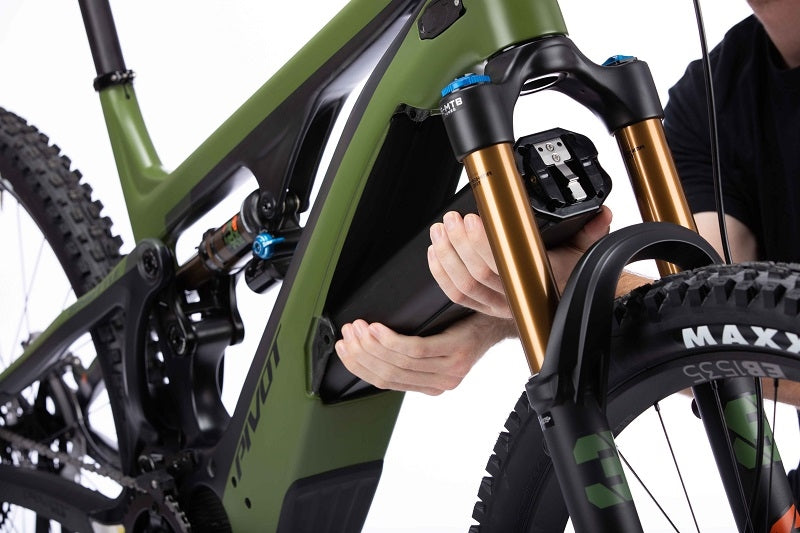

2 bolt removal battery system

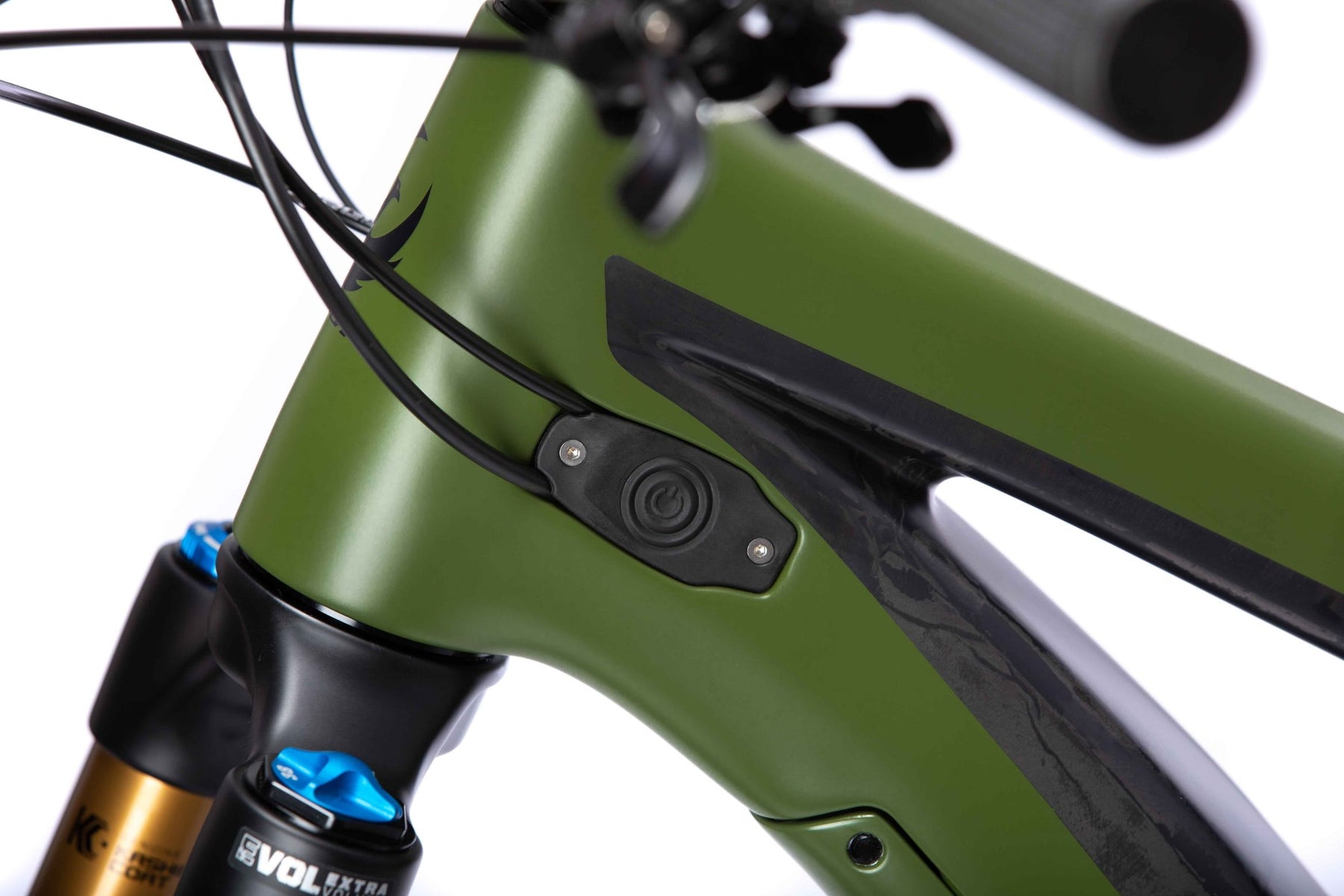

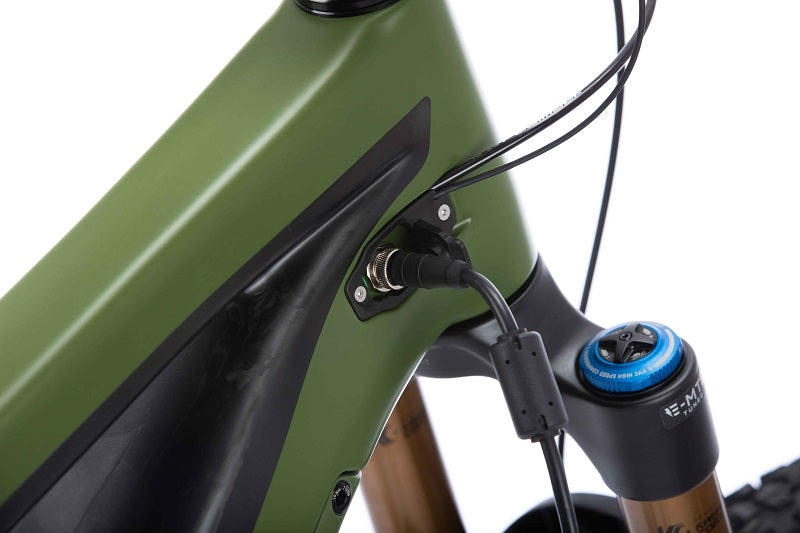

Ergonomic power button and charging port design cleanly integrated with the Pivot Cable Port System



Aggressive geometry for no holds barred enduro performance



160mm-travel Fox 38 fork provides best in class eMTB steering precision and performance



High grip Maxxis Assegai tire front and Minion DHRII rear for the ultimate in traction and control



Full-carbon frame constructed with top-shelf carbon fiber material utilizing Pivot's proprietary molding technology



Fits riders between 5'3" and 6'7"



KIT Team XTR - 29"
STARTING PRICE £10,750.00
FRAME Shuttle
MATERIAL Carbon
WHEEL SIZE 29"
REAR SHOCK Fox Factory Float DPX2
FORK Fox Factory E-MTB 38 29", 44mm offset, GRIP2 - 160mm
HEADSET Pivot Precision Sealed Cartridge
REAR DER Shimano XTR SGS 12-Speed
SHIFTER Shimano XTR M9100 12-Speed

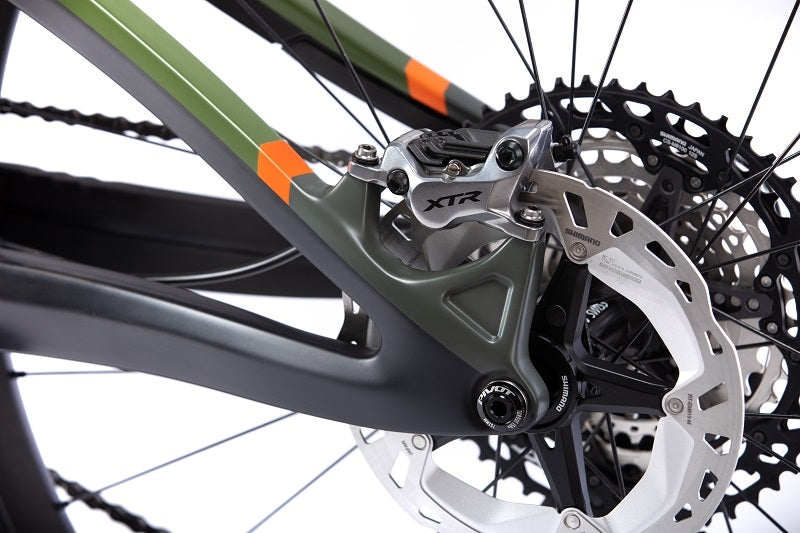

BRAKES Shimano XTR M9120 4-piston
CRANKSET Shimano XT M8150 w/ Shimano E-MTB 34t

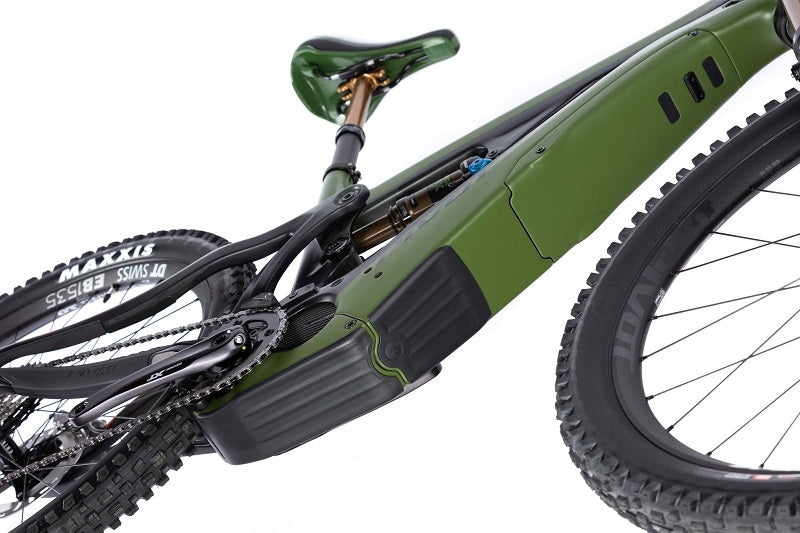

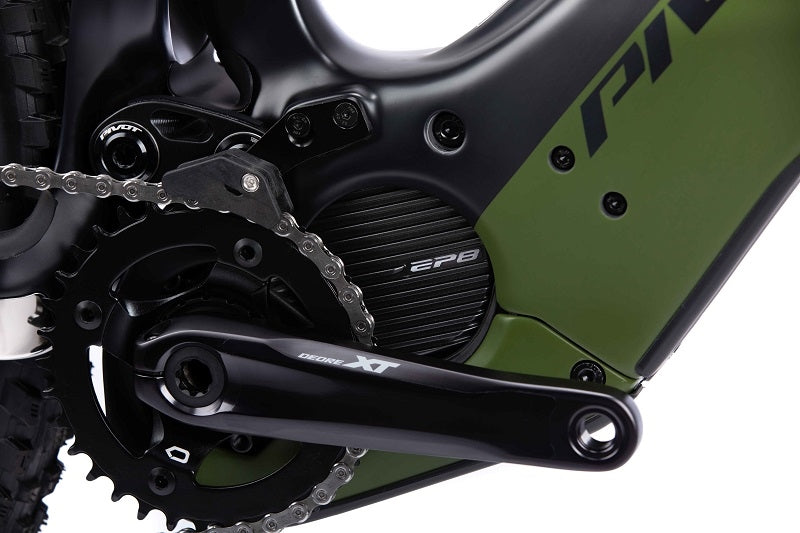

DRIVEUNIT Shimano Steps DU-EP800

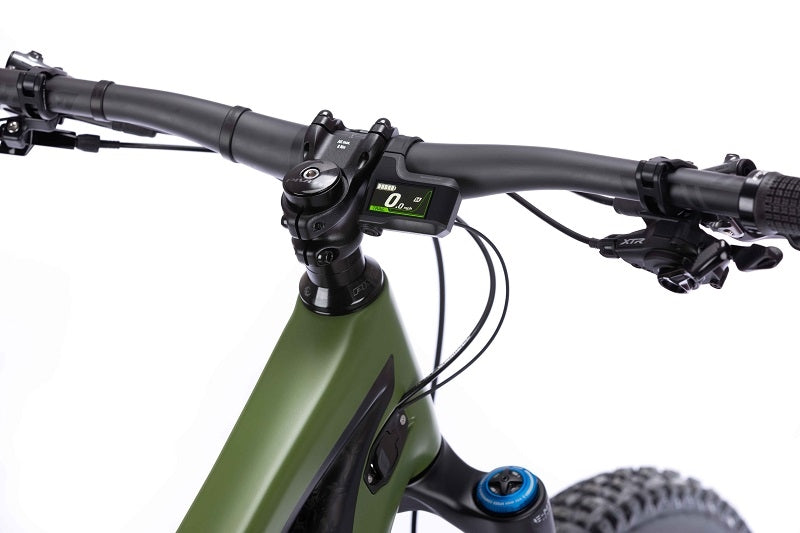

HANDLEBAR Phoenix Team Low Rise Carbon
GRIPS Phoenix Factory Lock-On
STEM Phoenix Team Enduro/Trail
SEATPOST Fox Transfer Factory Series 125mm (SM), 150mm (MD-LG), 175mm (XL)
SADDLE Pivot Pro E-Bike
CASSETTE Shimano XT M8100 10-51t
WHEELS DT Swiss EB 1535, 30mm - 29"
TIRES Maxxis Assegai DHF 29" x 2.5" TR, EXO+, 3C
Maxxis Minion DHRII 29" x 2.4" TR, MAXXTERRA, EXO+, 3C

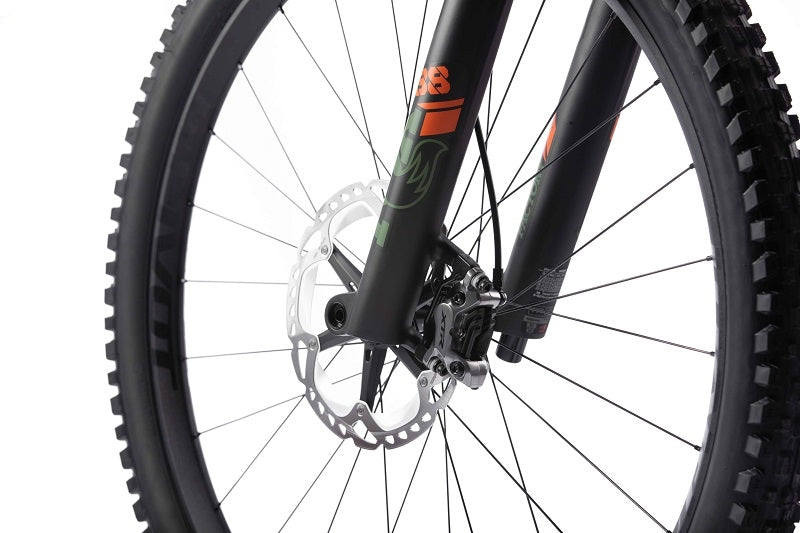

ROTOR Shimano XT MT-800 CenterLock - 203mm
Shimano MTE-800 CenterLock - 180mm
CHAIN Shimano CN-M8100 12-Speed

Geometry image



SM MD LG XL
Seat Tube Length (C-T) 39.5 cm 42.4 cm 45.8 cm 49.6 cm
Top Tube Length 60.0 cm 62.0 cm 64.0 cm 66.7 cm
Head Tube Length 11 cm 12 cm 13 cm 14 cm
Head Tube Angle 64.3° 64.3° 64.3° 64.3°
Seat Tube Angle 74.0° 74.0° 74.0° 74.0°
Chain Stay Length 44.1 cm 44.1 cm 44.1 cm 44.1 cm
Bottom Bracket Height 35.8 cm 35.8 cm 35.8 cm 35.8 cm
Standover Height 71.50 cm 71.50 cm 72.26 cm 72.26 cm
Wheelbase 118.7 cm 121.4 cm 123.5 cm 126.4 cm
Stack 61.4 cm 62.4 cm 63.3 cm 64.2 cm
Reach 42.0 cm 44.0 cm 46.0 cm 48.5 cm
